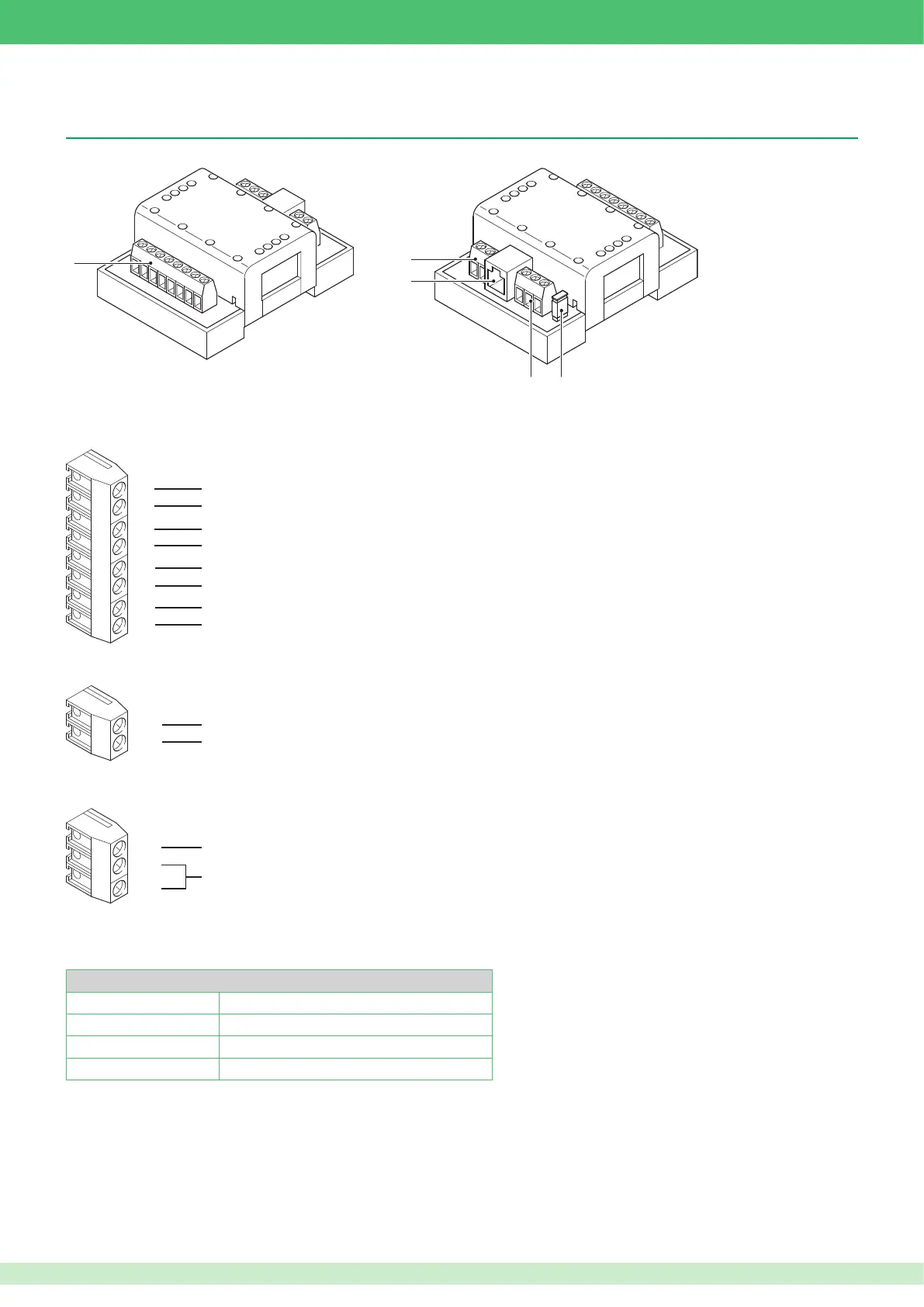

Comelit VIP System - VIP System Accessories; Remote Camera Module Art. 1445

19
SH
V4
SH
V3
SH
V2
SH
V1
GND
AUX
12 - 24 V DC power supply terminal
Earth terminal
1
2
3
54
1
2
3
54
1. Video signal from cameras input terminals
2. Secondary power supply terminals.
To be u sed i f the POE network power supply is insufcient
Input terminal for composite video signal from camera 1
Input terminal for composite video signal from camera 2
Input terminal for composite video signal from camera 3
Input terminal for composite video signal from camera 4
Camera 1 shield terminal
Camera 2 shield terminal
Camera 3 shield terminal
Camera 4 shield terminal
VIP system accessories
Remote camera module Art. 1445
Remote camera module Art. 1445 transmits the video signals received from 4 cameras.
D+
D-
GND
Tec hni cal ch ara cte ris tic s
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
Tem per atu re thr esh old s -30 / +55°C
Dimensions 4 DIN modules / H: 3.6 cm W: 6.5 cm D: 8.3 cm
N.B. Up to this point, the functions linked to the RS485 line have not been implemented.
4. RS485 line terminals.
3. Network connection Ethernet port.
5. RS485 line closure jumper
Earth terminal
RS485 data line
For wiring details, refer to the diagrams section at the end of this manual.
