Comelit VIP System - Powercom Series External Units; Powercom Module Art. 3331;0 - 1 - 2 for Audio;Video Units; Powercom Series Colour Audio;Video Unit for VIP System Art. 4662 C; Powercom Call Button Module Art. 3337;3 - 4 - 6

12

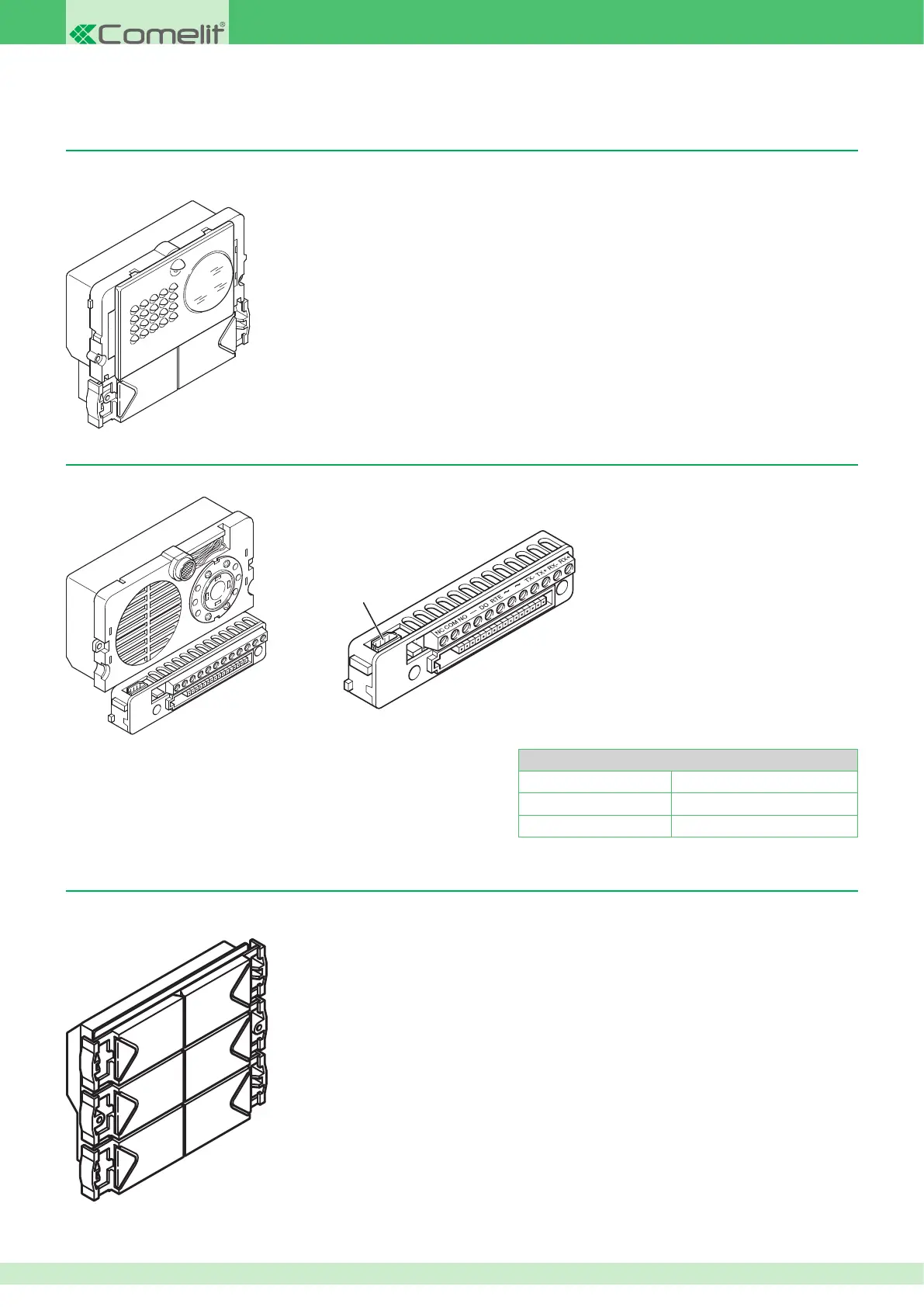

Module designed for audio/video speaker units. Requires audio/video unit Art. 4662C to complete installation. Versions with 0, 1 and 2 buttons are
available.
Additional call button module. Versions with 3, 4 and 6 buttons are available.
VIP system audio-video unit with terminal block, complete with spherical lens adjustable colour camera.
NC / NO: Door lock connection terminals
COM: Common terminal
DO: Door Open terminal
RTE / -: Timed relay control terminals
~ ~: Power supply terminals
TX- / TX+: Ethernet transmission line terminals
RX- / RX+: Ethernet reception line terminals
Tec hni cal ch ara cte ris tic s
Power supply 12 Vac
Tem per atu re thr esh old s -30 / +55°C
Dimensions H: 10.2 cm W: 5.5 cm D: 3.5 cm
Powercom series external units
Powercom module Art. 3331/0 - 1 - 2 for audio/video units
Powercom series colour audio/video unit for VIP system Art. 4662C
Powercom call button module Art. 3337/3 - 4 - 6
For wiring details, refer to the diagrams section at the end of this manual.
1. 4-pole cable connector
For wiring details, see page 28.
1
