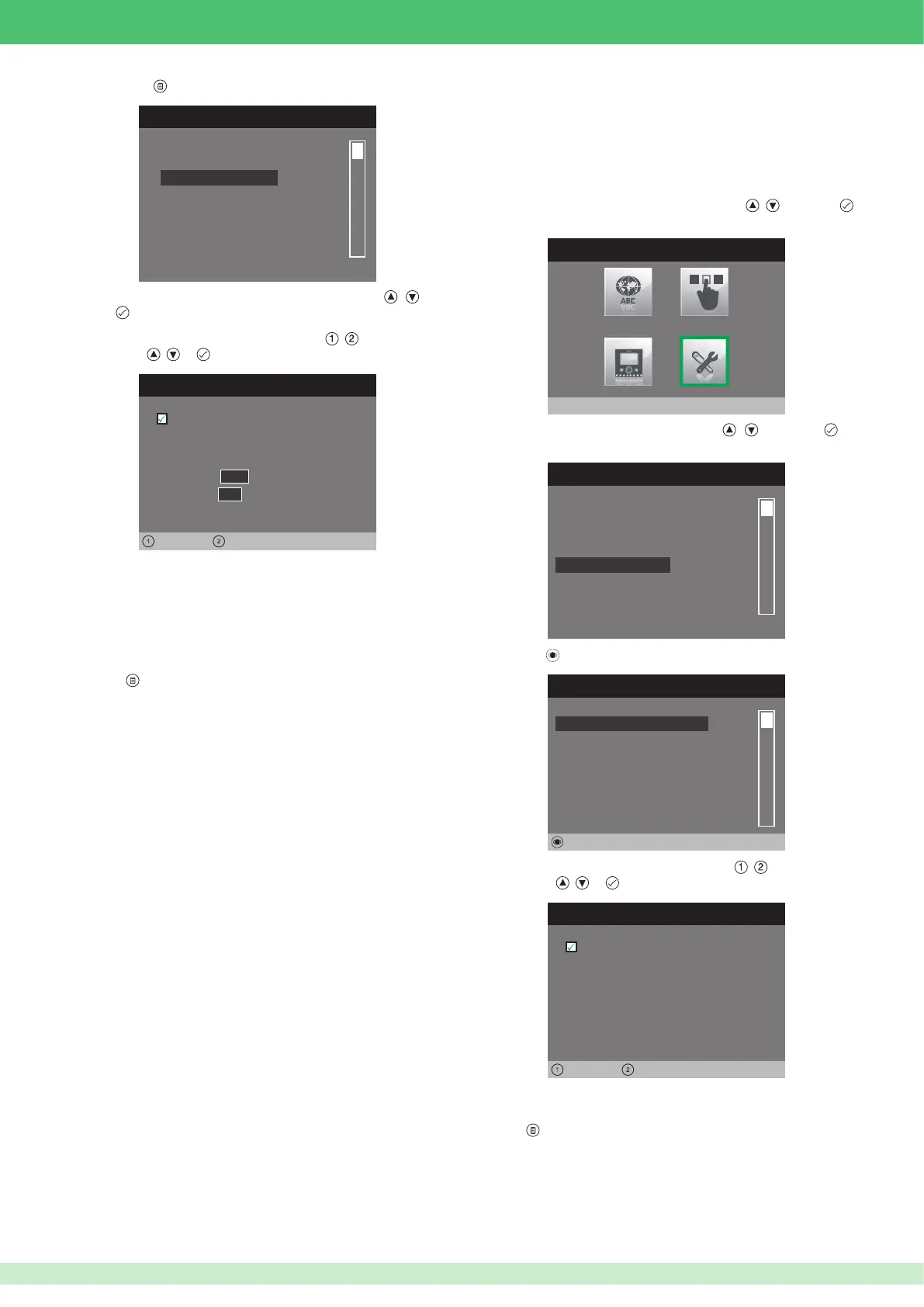

Comelit VIP System - Setting the Door Open Function

57
8. Select the Con gure VIP address menu by pressing , and
press to access it.
CONFIGURE DIRECTORY
Configure ViP address
Configure name
9. Select the  elds which can be changed using , and change the
value using , or .
ACTUATOR SETTING
0 0 0 0 0 1 0 1
ViP address:
Left Right
Output
Module
255
Active:
0 1
10. Press to exit and save the changes.
• The VIP address  e l d i d e n t i  e s a c t u a t o r m o d u l e A r t . 1 4 4 3 .
• In the Module  e l d , s e l e c t w h e t h e r t o a c t i v a t e t h e r e l a y s o n b o a r d
the module (255) or those on the expansion module Art. SK9071
connected to it (1 to 10).
• In the Output  e l d , s e l e c t t h e r e l a y y o u i n t e n d t o a c t i v a t e : 1 or 2 if
you enter 255 in the module  eld, or 1 to 10 if you enter an expansion
module in the module  eld.
7. Press button
to return to the previous menu.
• Setting the Door Open function
The function can be used to monitor the input of an external unit
programmed with the Door Open function. When the input is opened
or closed the key LED on the monitor lights up to indicate that the door
is open.
1. Access the installer menu.
2. Select the Special Settings menu by pressing
, and press
to access it.
INSTALLER MENU
Special Settings
3. Select the Door open menu by pressing , and press to
access it.
SPECIAL SETTINGS MENU
Actuator
Self-ignition
Call
Alarms
Set ringtone repetition
Door open
4. Press the button.
DOOR OPEN
Not assigned
Not assigned
Not assigned
Not assigned
Not assigned
Not assigned
Edit
5. Select the  elds which can be changed using , and change the
value using
, or .
• The VIP address  e l d i d e n t i  e s t h e e x t e r n a l u n i t y o u w i s h t o
monitor.
CONFIGURE VIP ADDRESS
0 0 0 0 0 1 0 1
ViP address:
Left Right
Active:
6. Press to exit and save the changes.
