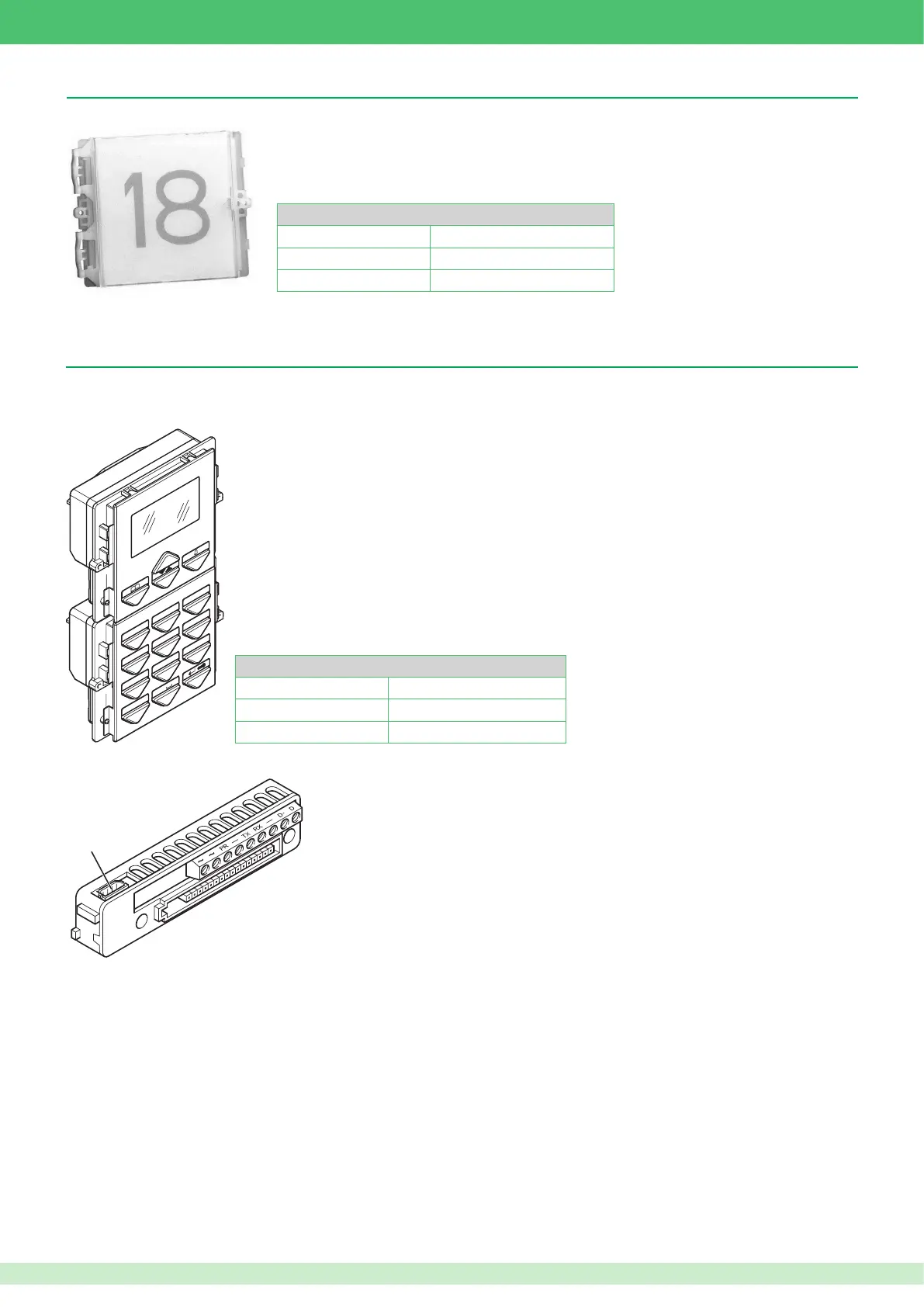

Comelit VIP System - Powercom Series Backlit Indication Module Art. 3327; Powercom Series Digital Call Module for VIP System Art. 3370

13
Backlit module with LEDs for various indications and additional 10 A relay.
Tec hni cal ch ara cte ris tic s
Power supply 12 Vac 3A
Tem per atu re thr esh old s -30 / +55°C
Dimensions H: 8.9 cm W: 11.2 cm D: 4 cm
Powercom series backlit indication module Art. 3327
1
A B C
2
D
E F
3
G
H
I
4
J
K L
5
M
N O
6
PQR
S
7
T U
V
8
W
XYZ
9
X
0
. , :
Tec hni cal ch ara cte ris tic s
Power supply 12 Vac
Tem per atu re thr esh old s -30 / +55°C
Dimensions H: 18 cm W: 11.2 cm D: 4 cm
Digital call module complete with electronic directory with graphic LCD display. Also functions as a coded electronic key module. Names can be scrolled
using the two search buttons or by entering the initial letter of the required name. Once the right name has been found, press the call button. The user
code can also be entered to make a direct call.
1
~ ~: Power supply terminals
PR -: Programming terminals
TX RX: RS232 line terminals (not used)
-: RS232 line negative terminal (not used)
D- D: RS485 data line
N.B. Up to this point, the functions linked to the RS485 line have not been implemented.
Powercom series digital call module for VIP system Art. 3370
For wiring details, see page 29.
1. 4-pole cable connector
For wiring details, refer to the diagrams section at the end of this manual.
