15
Tec hni cal ch ara cte ris tic s
Power supply 24 Vac - 33 Vdc
Tem per atu re thr esh old s -30 / +55°C
Dimensions H: 18 cm W: 11.2 cm D: 4 cm
GND
485
D+
S
24Vac
24Vac
485
D-
PRG
1
24 Vac:
Local power supply terminals (for use when
a dedicated power supply unit needs to be
connected for module Art. 3360A)
PRG GND: Programming terminals
485 D- 485D+: RS485 data line

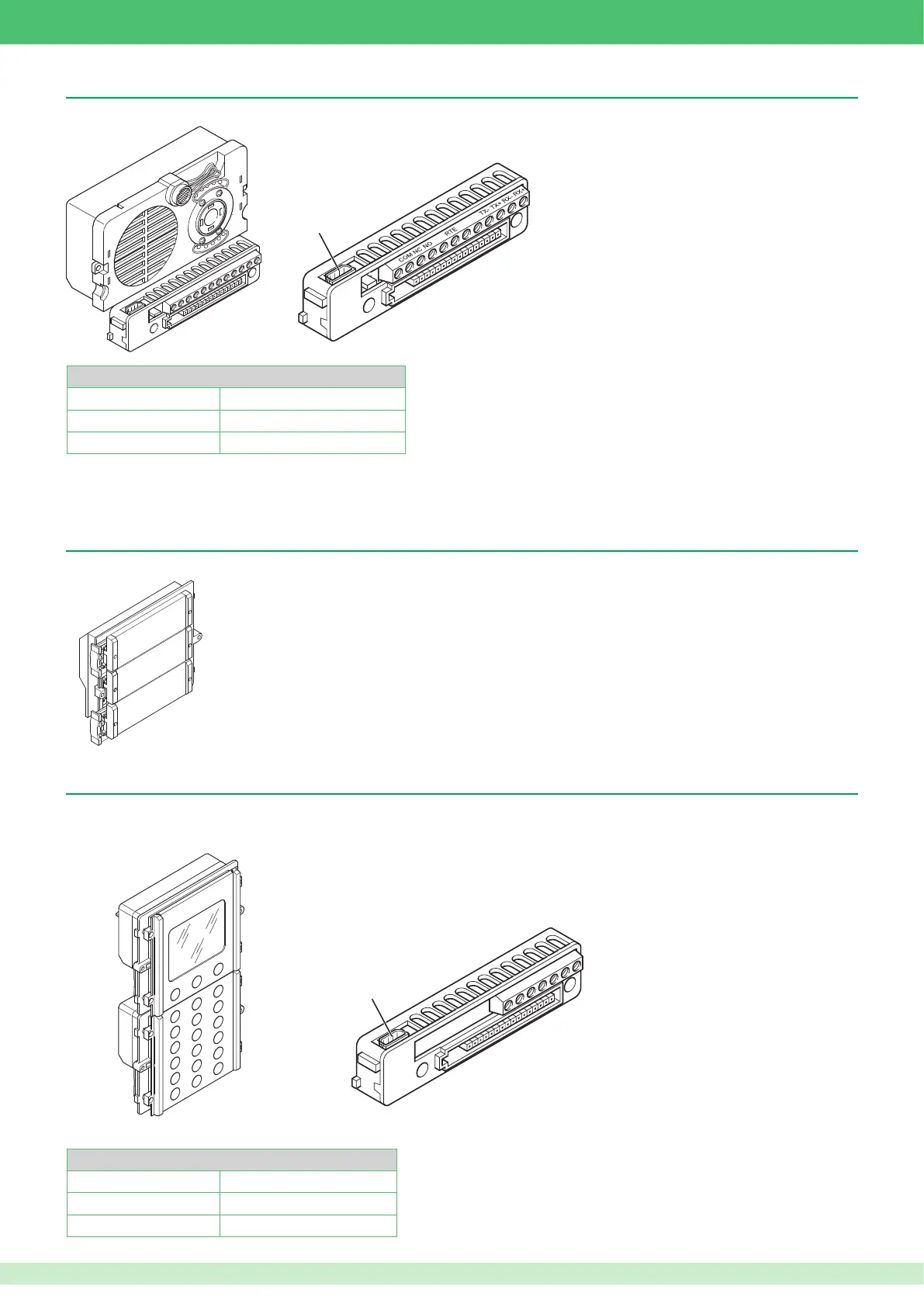

VIP system audio-video unit with terminal block, complete with mini lens adjustable colour camera.
Tec hni cal ch ara cte ris tic s
Power supply 33 Vdc
Tem per atu re thr esh old s -30 / +55°C
Dimensions H: 10.2 cm W: 5.5 cm D: 3.5 cm
IKall series colour audio/video unit for VIP system Art. 4682C
SE
GND
-V
+V
1
SE: Door lock connection terminals
NC / NO: Normally closed and normally open output terminals
COM: Common terminal
RTE / GND: Timed relay control terminals
-V +V: Power supply terminals
TX- / TX+: Ethernet transmission line terminals
RX- / RX+: Ethernet reception line terminals
Additional call button module. Versions with 3, 4 and 6 buttons are available.
IKall call button module Art. 33433 - 33434 - 33436
Digital call module complete with electronic directory with graphic LCD display. Also functions as a coded electronic key module. Names can be scrolled
using the two search buttons or by entering the initial letter of the required name. Once the right name has been found, press the call button. The user
code can also be entered to make a direct call.
IKall series digital call module for VIP system Art. 3360A
For wiring details, refer to the diagrams section at the end of this manual.
1.
8-pole cable connector
For wiring details, see page 30.
1.
8-pole cable connector
For wiring details, refer to the diagrams section at the end of this manual.
