Configuration 5
October 2013 GB 23 /80
Timer Control
Select a Setting
Date and Time
Timer Start/Stop
Timer Pressure Band p2
Display / Adjust
Display / Adjust
OK
This page is to set the Timer Channel
only. The Timer for
Compressor Start/Stop or activating the
second Pressure Band must be enabled
within Setpoints Menu.

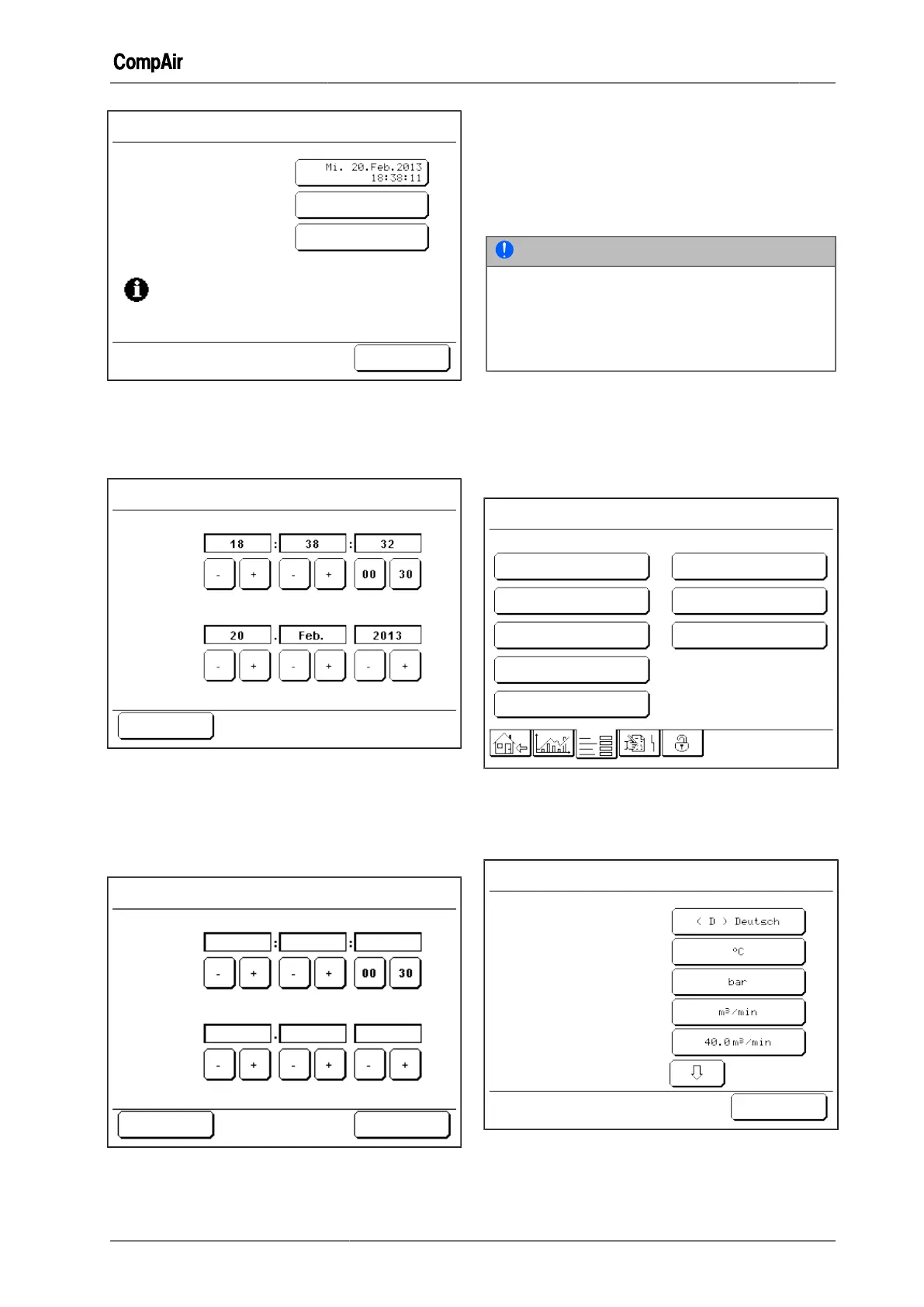

Fig. 5-4: Menu "Timer Control"
3
Tap button <Date and Time>.
–
The "Date and Time" input mask appears.
Adjust Time
Date and Time
Adjust Date
Cancel
Fig. 5-5: Input mask "Date and Time"
4
Adjust the date and time using the <+> and <->
buttons.
–
As soon as a button is tapped, the <OK>
button appears.
Adjust Time
Date and Time
Adjust Date
Cancel
OK
10
55
28
06
Feb.
2013
Fig. 5-6: Input mask "Date and Time"
The <Cancel> button can be used to cancel setting
of the date and time.
The previously active date and time are used.
5
Tap the <OK> button.
✓ The set date and time are saved.
NOTE
To simplify synchronising the time with an exter-
nal time source, the seconds can be set to "00"
or "30".
They then only start running if the button <OK>
is touched.
5.4 Setting the measurement units
Setting the temperature unit
1
Tap the <Settings> tab.
–
The menu "Settings" appears.
Hour
Meters...
Control...
Timer Control...
Programmable
Inputs and Outputs...
Communication...
Configuration...
Factory Settings...
SD-Card...
Select Menu
Settings
Fig. 5-7: Menu "Settings"
2
Tap the <Configuration...> button.
–
The menu "Configuration" appears.
Language
Temperature Unit
Pressure Unit
Volume Flow Unit
Maximum Volume Flow
Select a Setting
Configuration
OK
Fig. 5-8: Menu "Configuration"
