CompAir DELCOS XL Series User Manual

10 Base Load Sequencing (BLS)
64 / 80 GB October 2013
Messages displayed if a compressor is not
available
If a compressor is not available this is indicated by
a flashing alarm symbol on the tab <Base Load Se-
quencing>.
Message Meaning
No communication
No communication can
currently be established
with the slave.
Fault
Fault at the compres-
sor.
Switched off
1)
The compressor is
switched off and is
therefore not available.
Incorrect configuration
The base load sequenc-
ing configuration indi-
cates that no RS slaves
are connected, the
slave is nevertheless an
RS compressor.
or
The base load sequenc-
ing configuration indi-
cates that RS slaves
are connected, the
slave is nevertheless an
FS compressor.
Not compatible
1)
The slave is not com-
patible. Slave compres-
sor controller or soft-
ware version not sup-
ported.
Chart 10-6: Compressor Status Messages
1) Not displayed for slaves controlled by the
compressor module (STD).
10.5 Compressor settings and
information
Menu "Compressor"
Calling
1
Tap the <Base Load Sequencing> tab.
2
Tap button <Compressor x> for the desired
compressor.
–
The menu "Compressor / Select a Setting"
appears.
Description
Compressor Name
Hours Run
Hours Run (BLS)
Maximum Volume Flow
Line Pressure
Select a Setting
Compressor 1
OK
Software Version
Compressor 1

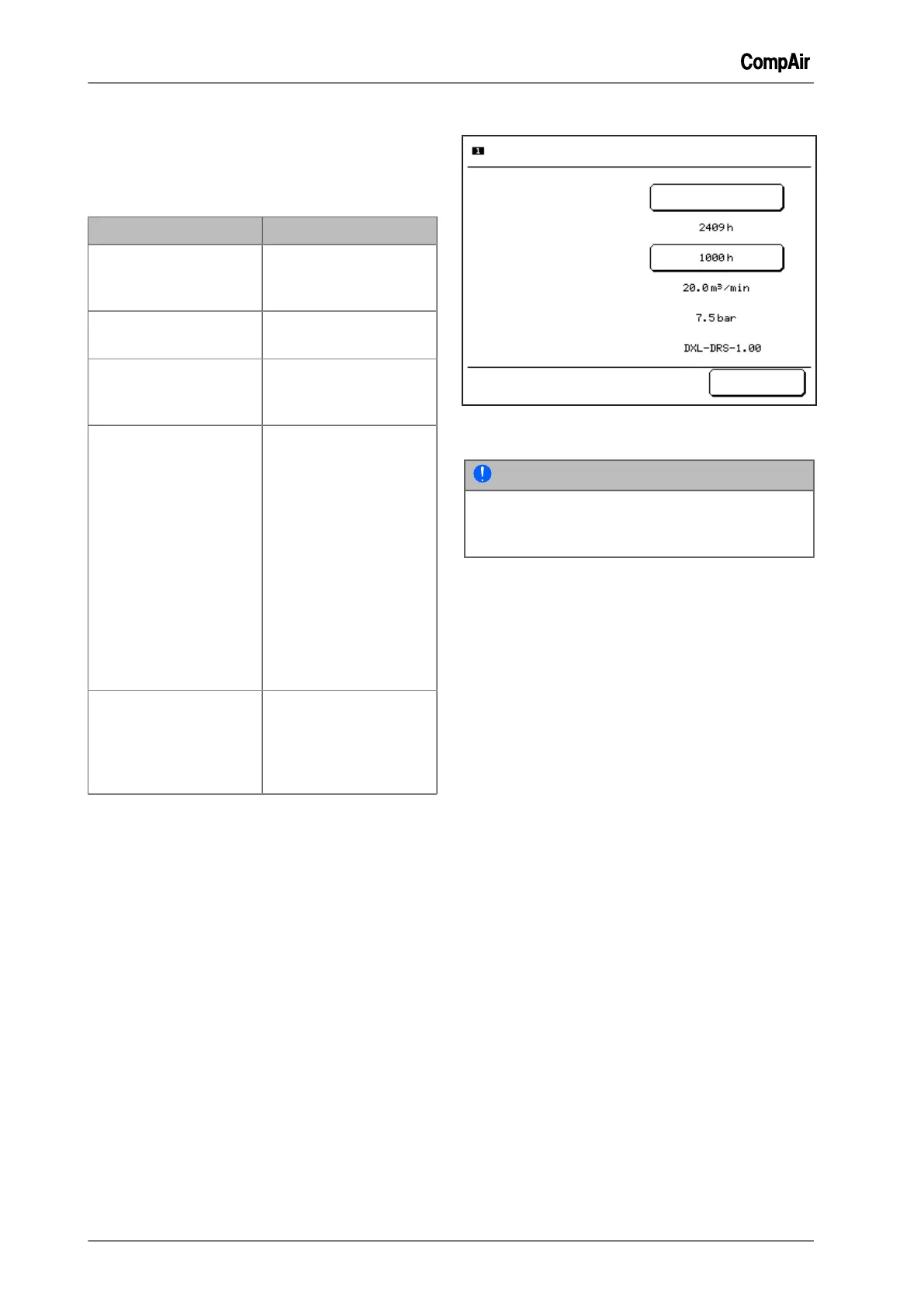

Fig. 10-7: Menu "Compressor / Select a
Setting" (Example RS)
NOTE
Dependent on controller and compressor type
(RS or FS) there are differences in the button al-
locations. See the following descriptions.
Compressor Name
The compressor name can be freely changed.
Changing the compressor name in the base
load sequencing group
1
Tap the <Base Load Sequencing> tab.
2
Tap the <Compressor> button for the desired
compressor.
3
Tap button <Compressor Name>.
– The soft keypad appears.
4 Tap the <Softkeys> to enter the desired com-
pressor name.
5 Use the <Back> button to make corrections.
Use the <Cancel> button to cancel changing of
the compressor name. The previously active
name is used.
6
Tap the <OK> button.
✓ The compressor name is changed.
–
The menu "Compressor" appears.
– The entered name is displayed on the
<Compressor> button.
Hours Run
Display of the current hours run of the compres-
sor.
