CompAir DELCOS XL Series User Manual

4 Menus
10 / 80 GB October 2013
4 MENUS
4.1 Menu Structure
Home
On-Load
0rpm
260
Hours Run
Hours On-load
Hours to next Service
Remote Start Enabled
Timer start enabled
Auto. Restart Enabled
(1) Home
(2) Trends
Statistics on-load hours
Statistics Weekly Profile
Volume flow
Network pressure
Motor Speed (RS)
(3) Settings
Hour Meters
Control system
Timer Control
Programmable Inputs and Outputs
Communication
Configuration
Factory Settings
SD-Card
(4) Fault History
List of alarms with display of
Alarm details
(5) Access code
Input menu
„
Input Access Code“
(6) Base Load Sequencing (optional)
2
3
4
5
6
1
Date and time / language selection
Operating display (pictogram with
measurement and setpoints)
Status-/ message area
Hours run / service hours
Status switch on functions
Switch on/off base load sequencing
Settings:
- Setpoints
- Behavior
- Timer control
- Configuration
Additionally under the maintenance level:
- Final compression pressure
- Output temperature
- Heatsink temperature (RS)
- VSD Output Current (RS)
Additionally in base load sequencing:
- Volume Flow (BLS)
- Statistics Weekly Profile (BLS)
S
Water circuit control

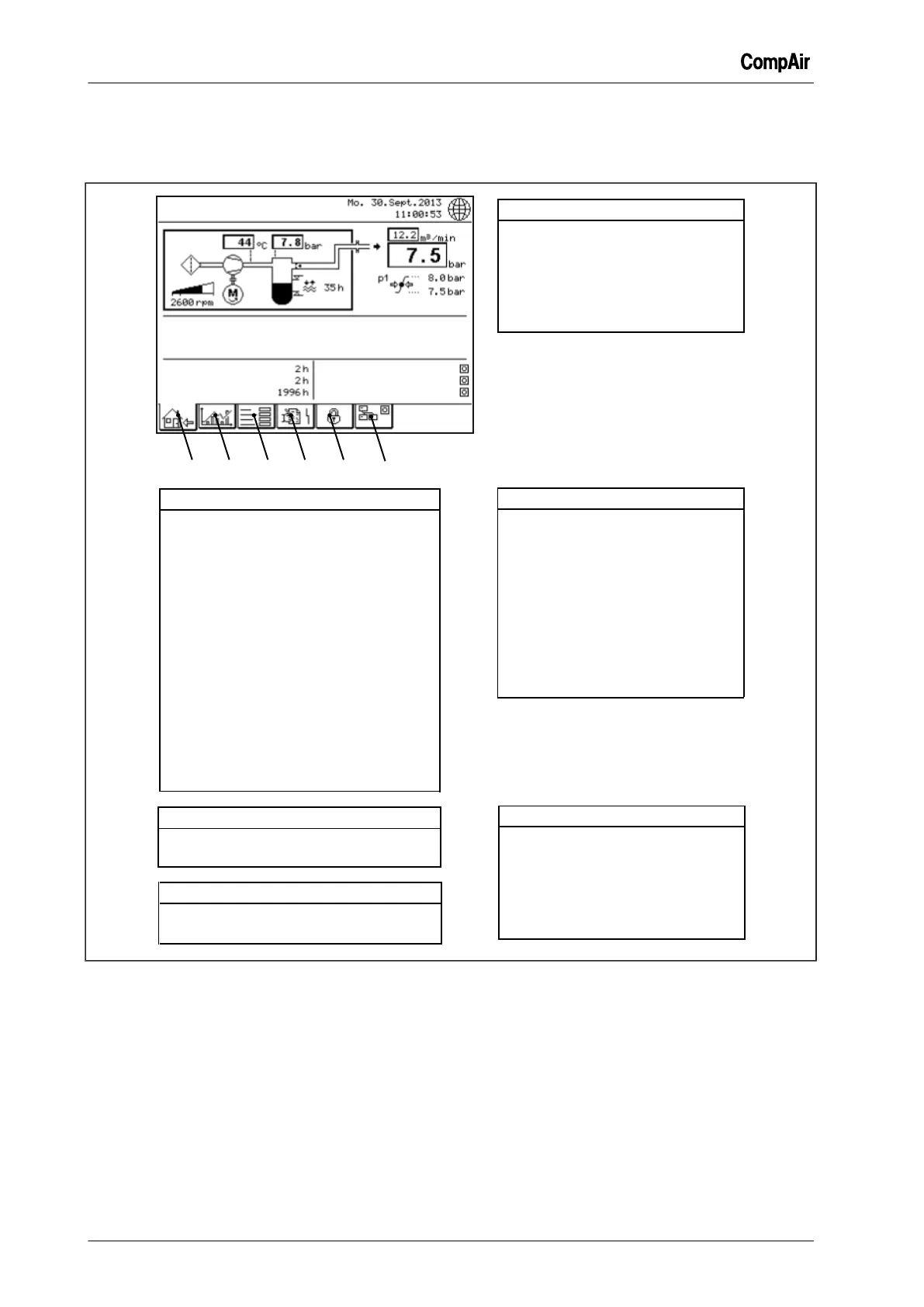

Fig. 4-1: Menu Structure
4.2
Menu "Home"
The menu "Home" is the basic screen that is displayed during normal operation.
It is called via the <Home> tab.
If no entry is made for five minutes, this menu appears automatically.
