HPOD C-, X-, Ku-Band High-Power Outdoor Amplifier Revision 6

Appendix A MN/HPOD.IOM

A–39



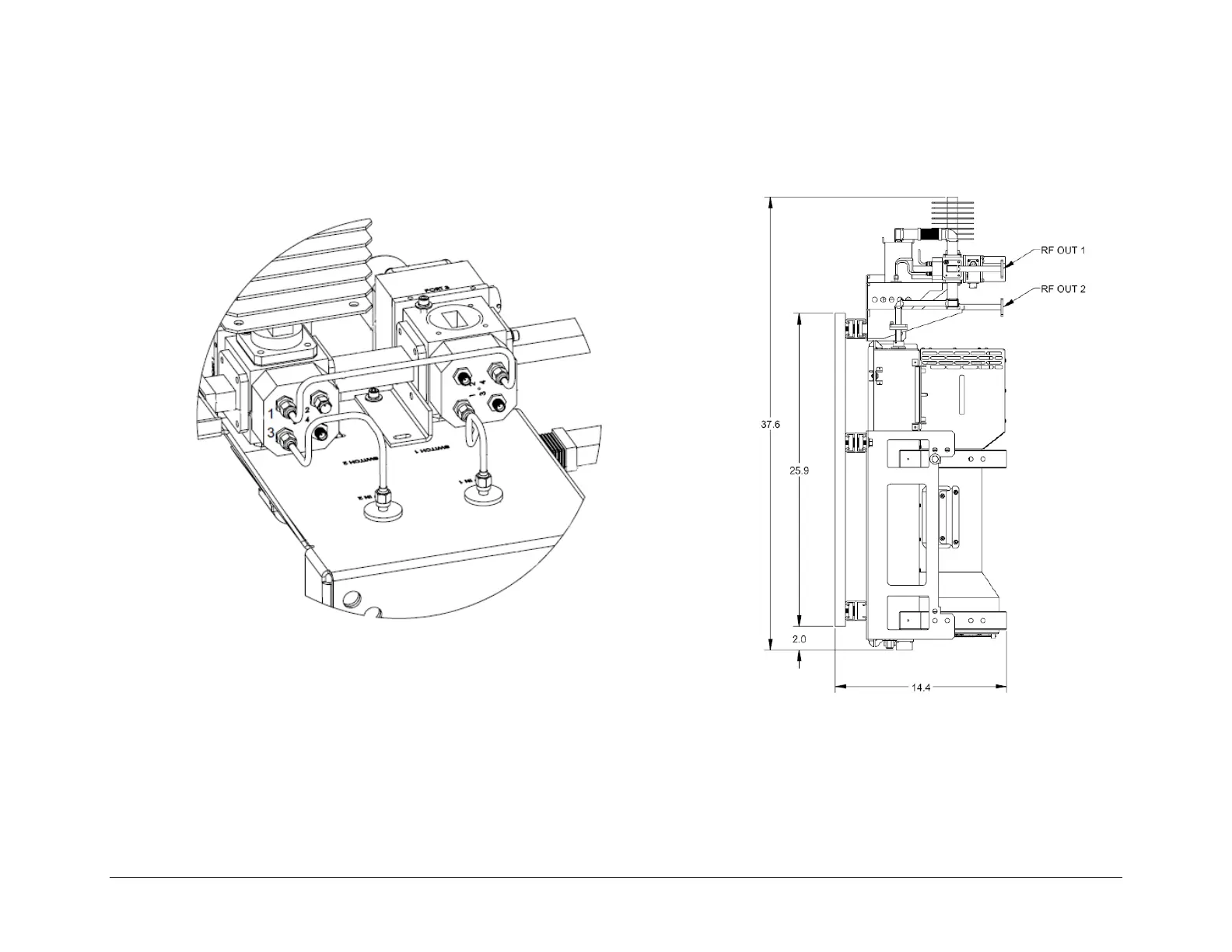

Figure A-25. HPOD Ku-Band 1:2 Redundancy System – Assembled Switch Detail ‘A’ and Side View



SWITCHDETAIL‘A’

ASASSEMBLED,VIEWEDFROMBACK
