2.6 Energizing the HPOD SSPA
Never turn the unit ON without proper waveguide termination on the J2 RF
OUTPUT port. Individuals can be exposed to dangerously high electromagnetic
levels.


The HPOD SSPA does not contain a ‘Power On/Off’ switch. The SSPA is powered ON by
connectingtheJ3|ACINPowerconnectortotheappropriateprimepowersource.TheMuteor
TransmitstatusoftheSSPAwillautomaticallycomeupinthelaststoredstate(factorydefault=
Transmiton,notmu
ted).



















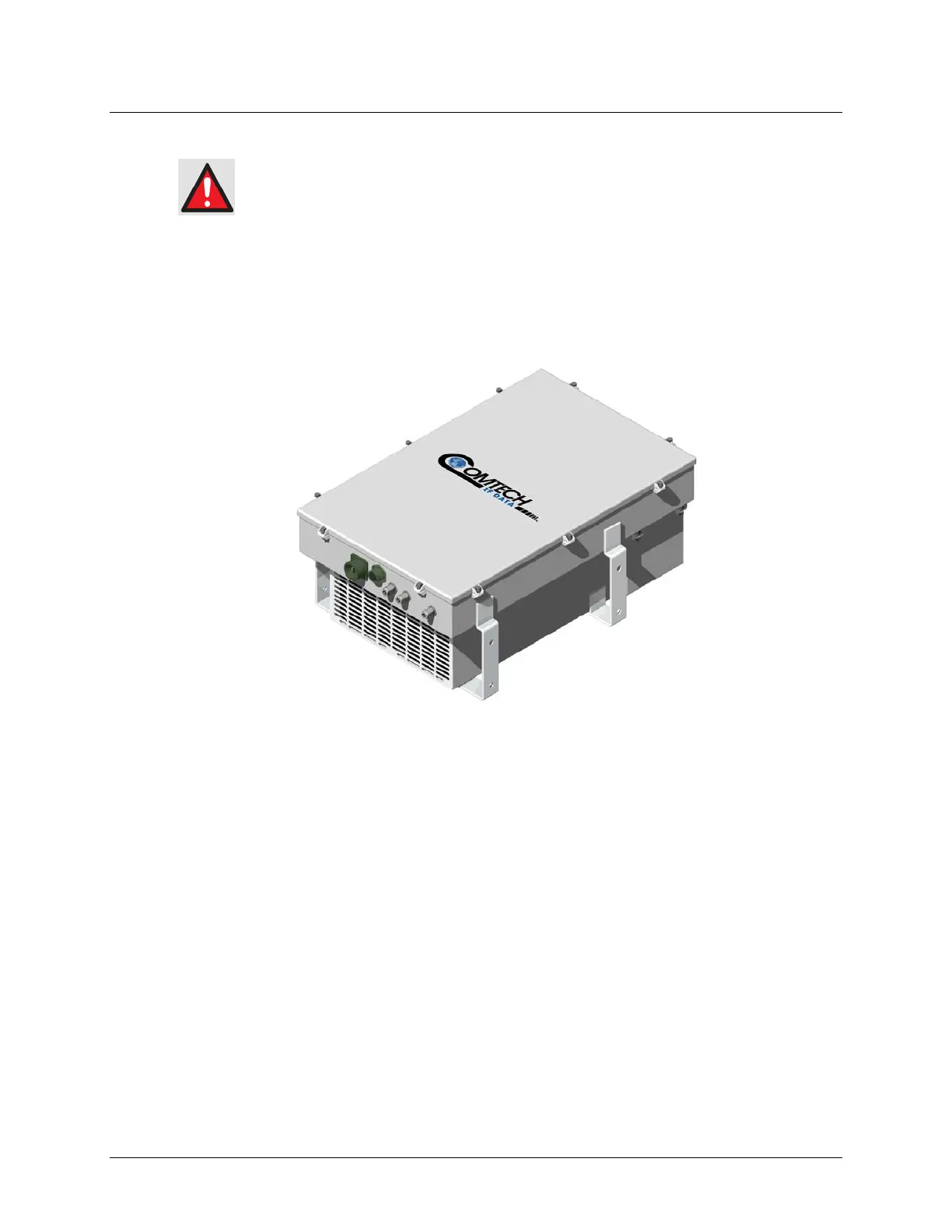

Figure 2-4. HPOD Unit
