C.3.2 Installing the New Fan Assembly





















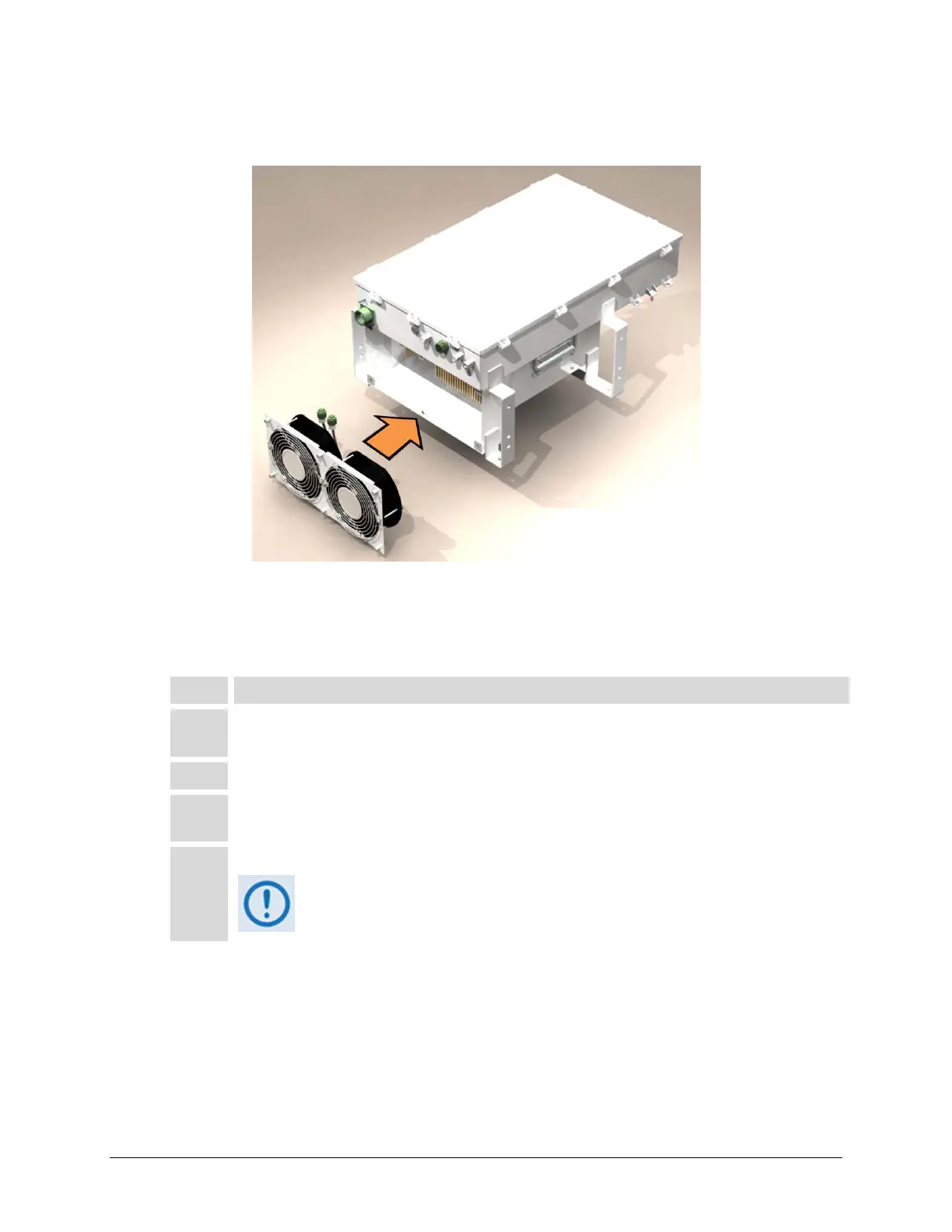

Figure C-3. HPOD Fan Assembly Replacement

Tore‐installthefanassembly:

Step Task
1
Visually inspect the exposed SSPA heat sink for any debris/blockage. Use compressed air to
clear/clean if needed.
2 Connect the fan assembly’s circular connectors to the SSPA
3
Position the fan assembly onto the SSPA, ensuring proper alignment of the fasteners without
any cable or fan interference.
4 Tighten the four captive fasteners where indicated previously in Figure C-2.
Be sure to use an appropriate screwdriver, such as the one provided with the
SSPA, to avoid damaging the fasteners.

