HPOD C-, X-, Ku-Band High-Power Outdoor Amplifier Revision 6
External Connectors and Pinouts MN/HPOD.IOM
2–3













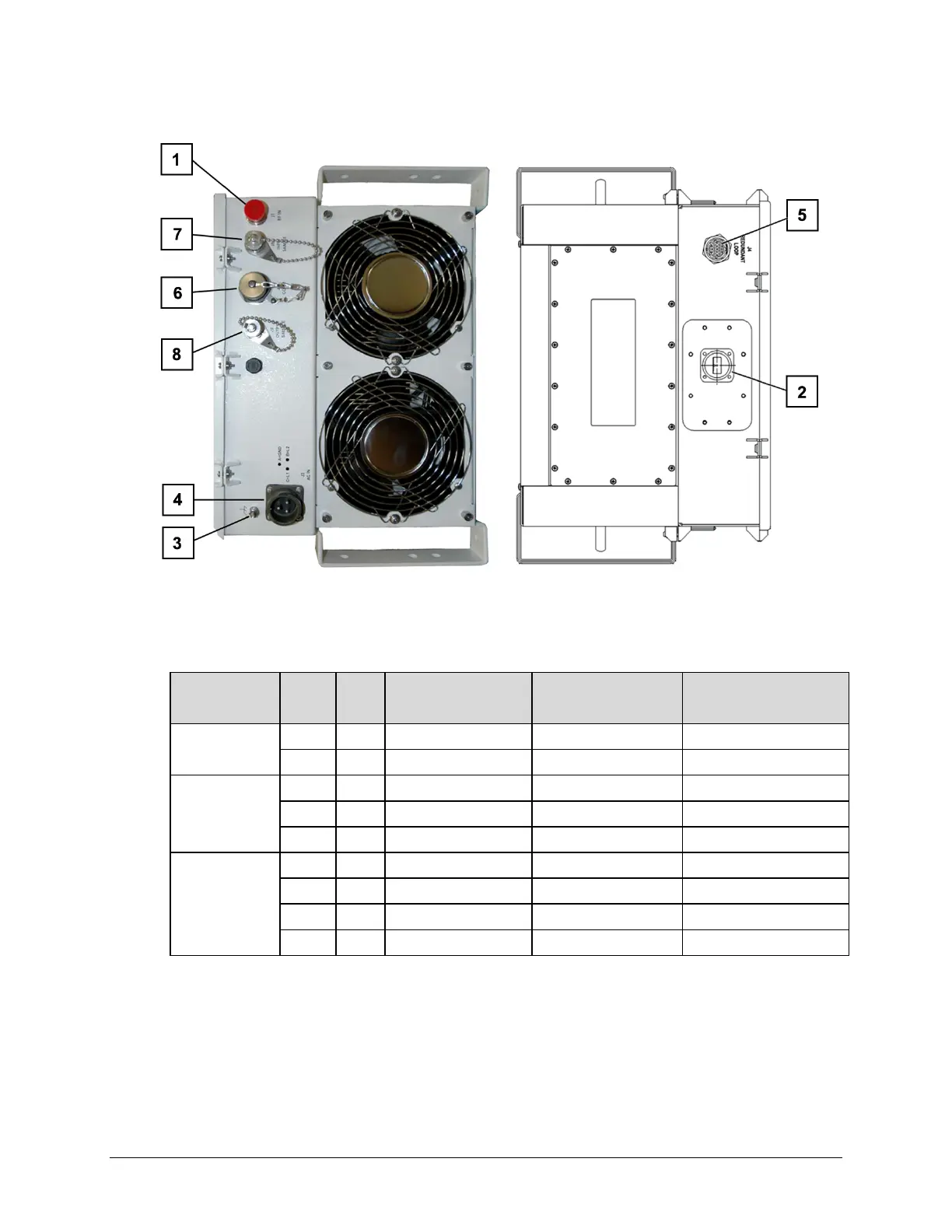

Figure 2-3. HPOD External Connectors

Table 2-1. HPOD SSPA External Connectors
Connector
Group
(Section)
Item
Ref
Des
Connector Name Connector Type Connector Function
RF Signal
(Sect. 2.3)
1 J1 RF IN Type ‘N’ female RF Input
2 J2 RF OUT Waveguide Flange RF Output
Ground and
Power
(Sect. 2.4)
3 N/A N/A M4 Stud Common Chassis Ground
4 J3 AC IN 3-Pin Circular Conn. Prime Input AC Power
– J10 N/A 4-Pin Circular Conn. Optional -48VDC Power
Electrical Control
Interface
(Sect. 2.5)
5 J4 REDUNDANT LOOP 19-Pin Circular Conn. Redundancy operation
6 J6 COM1 19-Pin Circular Conn. SSPA M&C
7 J8 INPUT SAMPLE Type ‘N’ female -20 dB input signal sample
8 J9 OUTPUT SAMPLE Type ‘N’ female -40 dB output signal sample



