Measure the centerline height of the extrudate as it
exits the extrusion die. Adjust all equipment on the extru-
sion line (sizing tank, cooling tanks, puller/cutter) to this
height.

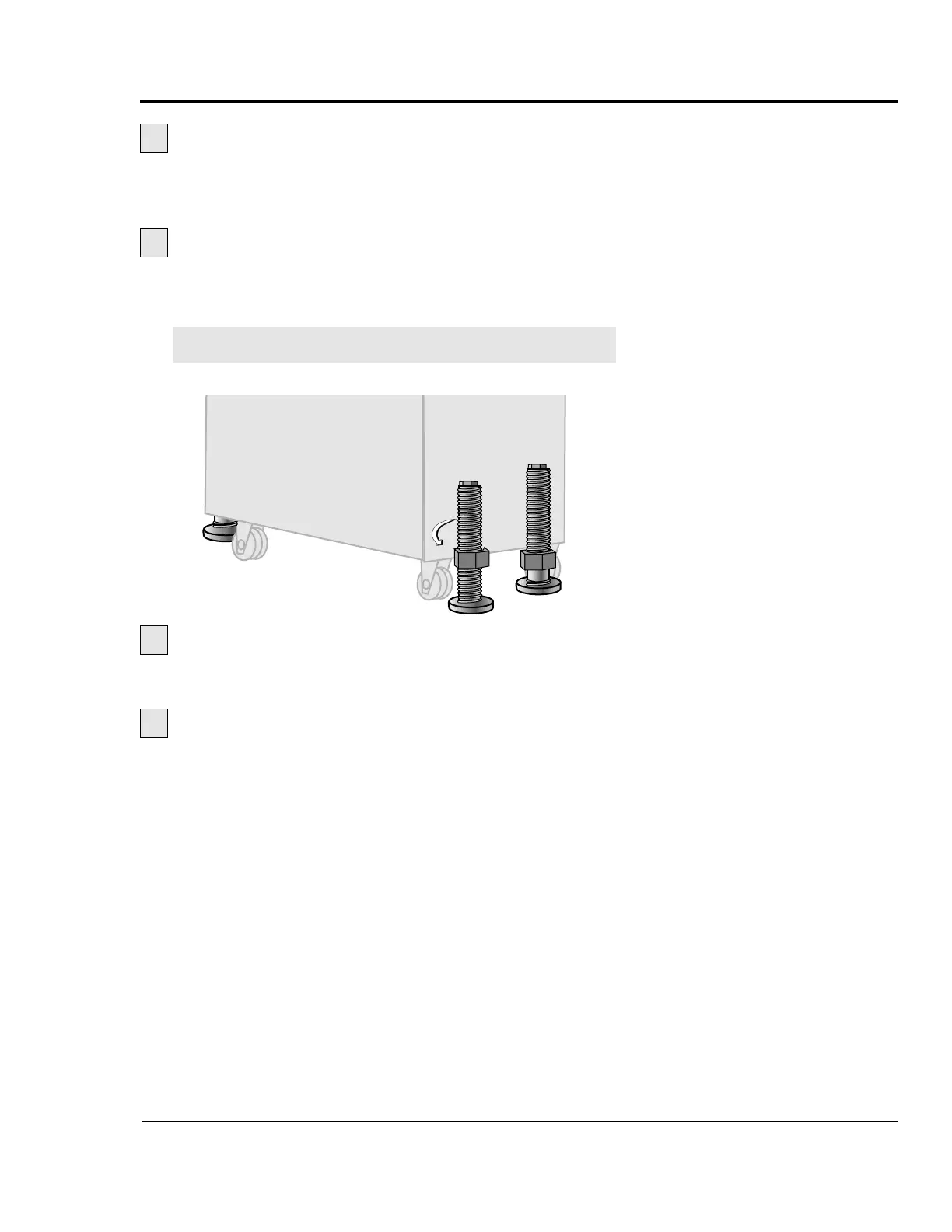

Adjust the puller/cutter's floorlock/caster
assembly
to the center height of the extrusion line using
a 16- or 18-inch adjustable wrench. Remove the weight
from the casters by locking down the floorlocks.
NOTE: Never leave the puller/cutter on casters only.
Use a plumb line or laser to check for a
straight line
from the extrusion die through each line
component to the cutter bushings. Adjust as necessary.
Adjust the belt puller entrance guide rollers
to insure consistent product guidance.
UGE048/1103 CSC Combination Puller/Cutter
I
NSTALLATION 3-5
3
4
5
6
POSITIONING THE
COMBINATION
PULLER/CUTTER
CONTINUED
To Next Page
