CSC Combination Puller/Cutter UGE048/1103
3-8 INSTALLATION
MOUNTING THE
CUTTER
BUSHINGS

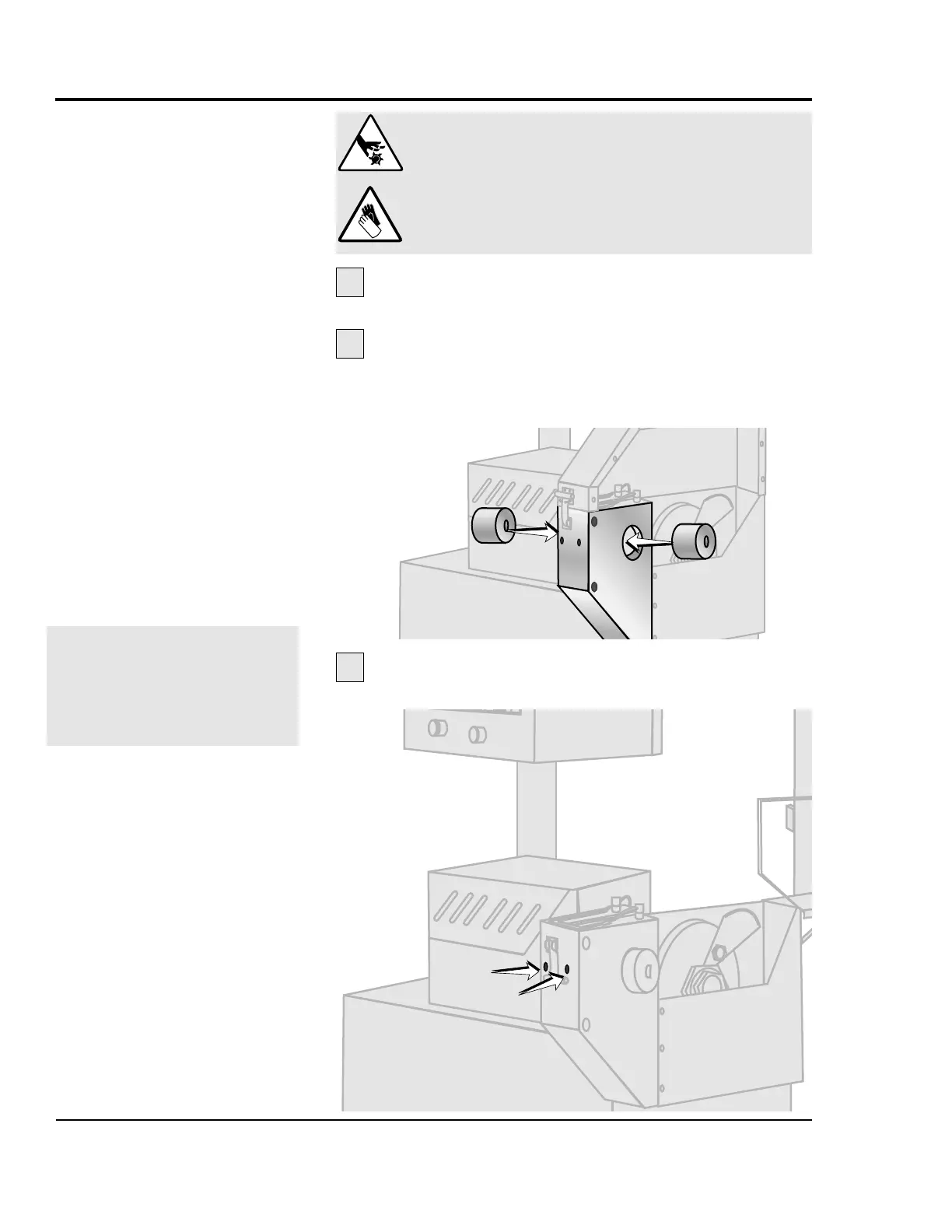

Rotate the cutter head until the blade is positioned
in the gap between where the bushings go.
Slide the downstream bushing into position,
positioning it up to and barely touching the blade (using a
feeler gauge). NOTE: the blade should not be deflected.
Tighten the set screw against the flat side of the
bushing to hold the bushing in position.
DANGER: Sharp blades!
Always wear cut-resistant gloves when the cut-
ting chamber is open and when handling
blades. Never open cutting chamber without
locking out the cutter power and waiting until
the cutter head stops spinning.
1
2
3
Upstream
Downstream
For more information about
setting and adjusting the gap
for the bushings, see About
Cutter Bushings, in Appendix
C.
Location of set screws
Continued
To Next Page
