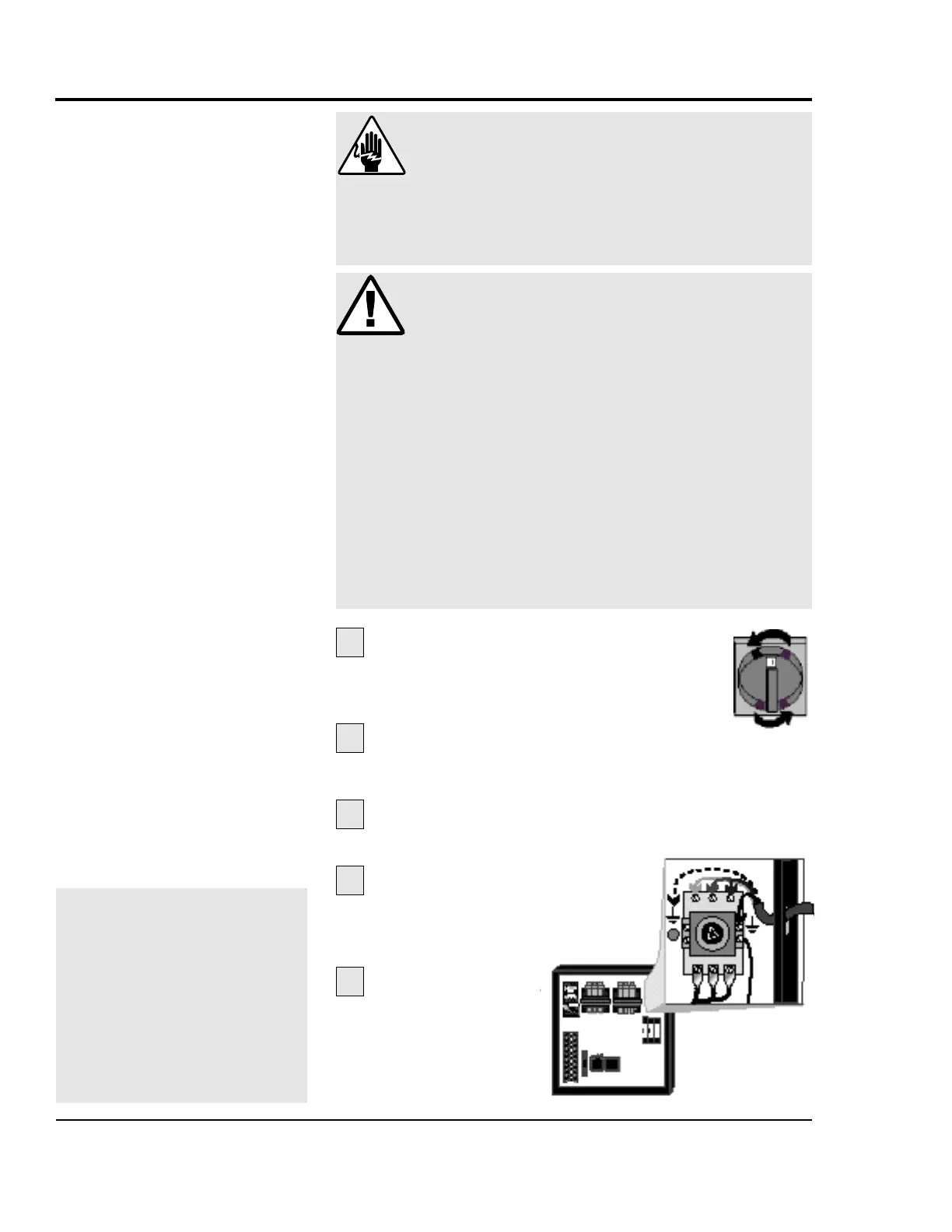

3-6 INSTALLATION
Open the combination puller/cut-
ter’s electrical enclosure.
Turn the
disconnect dial on the door to the OFF or O
position and open the door.
Insert the main power wire through
the knockout in the side of the enclosure. Secure the
wire with a rubber compression fitting or strain relief.
Connect the power wires to the terminals indicated
on the wiring diagram that came with your machine.
Check every terminal screw
to make sure wires are secure.
Gently tug each wire. If a wire is
loose, use a screwdriver to tighten
the terminal.
Connect the
ground wire
to the
grounding point
shown in the wiring
diagram shipped with
your unit.
1
2
IMPORTANT: Always refer to
the wiring diagrams that
came with your combination
puller/cutter before making
electrical connections. The
diagrams show the minimum
size main power cable
required for your cutter, and
the most accurate electrical
component information.
CONNECTING
THE
MAIN
POWER SOURCE
3
WARNING: Electrical hazard
Before performing any work on this product,
disconnect and lock out electrical power
sources to prevent injury from unexpected ener-
gization or start-up. A lockable device has been
provided to isolate this product from potentially
hazardous electricity.
WARNING: Improper installation,
operation, or servicing may result in
equipment damage or personal injury.
This equipment should only be installed, adjust-
ed, and serviced by qualified technical person-
nel who are familiar with the construction, oper-
ation, and potential hazards of this type of
machine.
All wiring, disconnects, and fuses should be
installed by qualified electrical technicians in
accordance with electrical codes in your region.
Always maintain a safe ground. Do not operate
the equipment at power levels other than what
is specified on the machine serial tag and data
plate.
4
5
CSC Combination Puller/Cutter UGE048/1103
