DIGITAL BELT GAP SENSOR UGE048/1103
U
SING THE
D
IGITAL BELT
GAP SENSOR
The digital belt gap sensor uses a linear scale attached to both
belts to measure the relative distance between the belts. The
relative distance is shown in thousandths of an inch (.001).

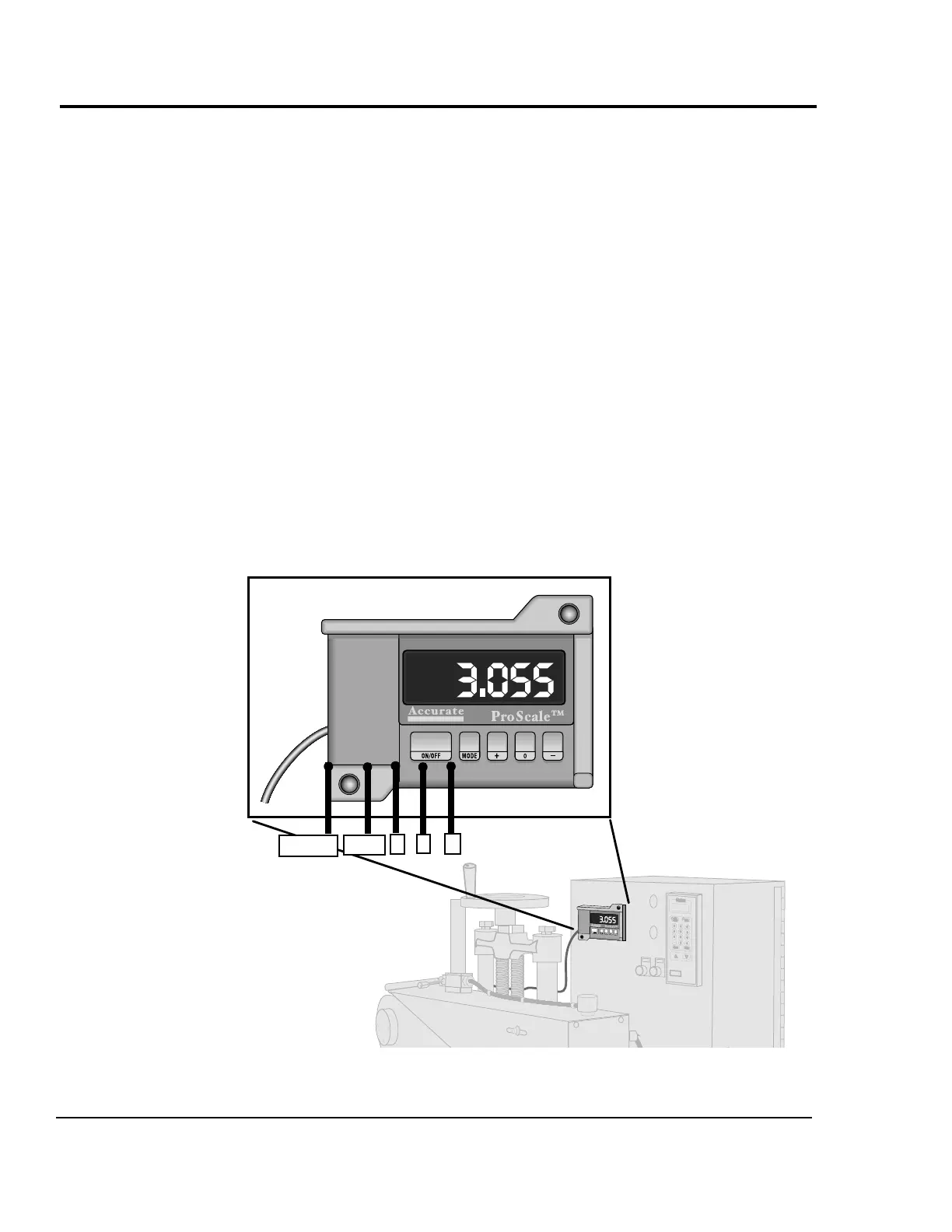

The sensor has five buttons:
● On/Off - Turns the device on and off.
● Mode - Press to choose the readout in decimals,
fractions, or millimeters.
● + - Press to move up one engineering unit.
● 0 - Press to zero the reading. Because all measure-
ments are relative, the sensor can be set to zero
at any time by pressing this button.
● - - press to move down one engineering unit.
Readings displays on the digital display.
For more information, refer to the belt gap sensor manual.
On / Off
Mode
+
0
-
G-1 APPENDIX
