CSC Combination Puller/Cutter UGE048/1103
3-12 INSTALLATION
SETTING THE
BELT GAP
For the 426 model
Each belt boom assembly is moved separately. A single
handle is used for both threaded rods., To move the handle
from one rod to the other, lift it and place it on the other
shaft. You may have to rotate it slightly to engage the key-
way with the key on the shaft.

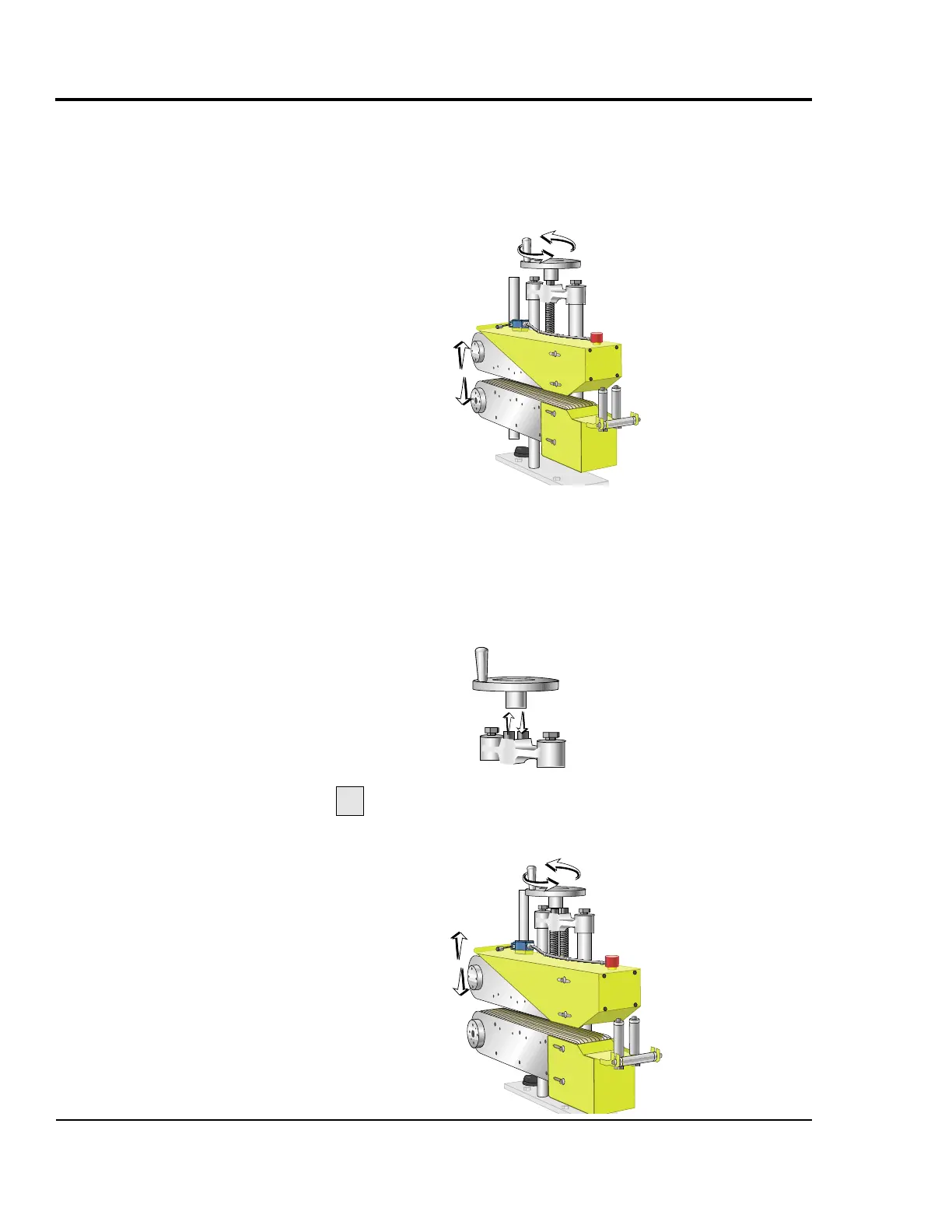

For the 320 models
The upper and lower belt boom assemblies are controlled
by a common threaded rod. Turn the hand wheel to move
the belts up and down.
Place the hand wheel on the left threaded rod
and turn to move the upper belt up and down:
1
Continued
To Next Page
