UGE048/1103 CSC Combination Puller/Cutter
I
NSTALLATION 3-11

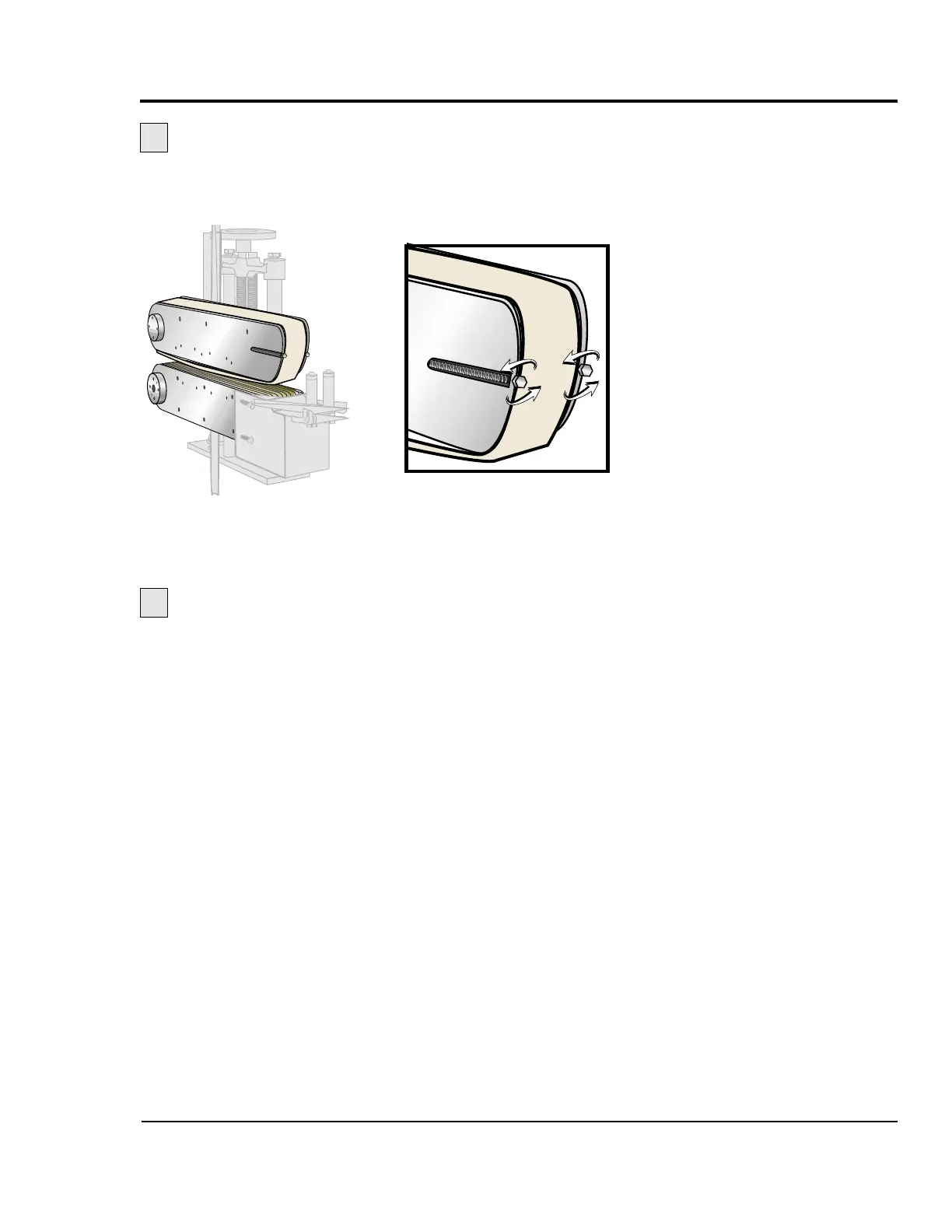

Adjust belt tension, if necessary.
Adjust tension by turning the threaded tension rods. Keep
tension on front and back edges, top and bottom belts as
even as possible.
Fine tune tension:
● Lower the belts to a gap of about 1/8 inch (3 mm).
(See Setting the Belt Gap, section 3)
● From the upstream end of the belts, look down
the length of the belts at the gap between the belts.
If the gap is not even, adjust the tension until the
gap is even and measures 1/8 inch. The shape of the
gap should not be concave (over-tightened) or con-
vex (too loose).
● Check tension and re-adjust as necessary.
4
5
ADJUSTING
BELT TENSION
CONTINUED
