Adjust belt tension, if necessary.

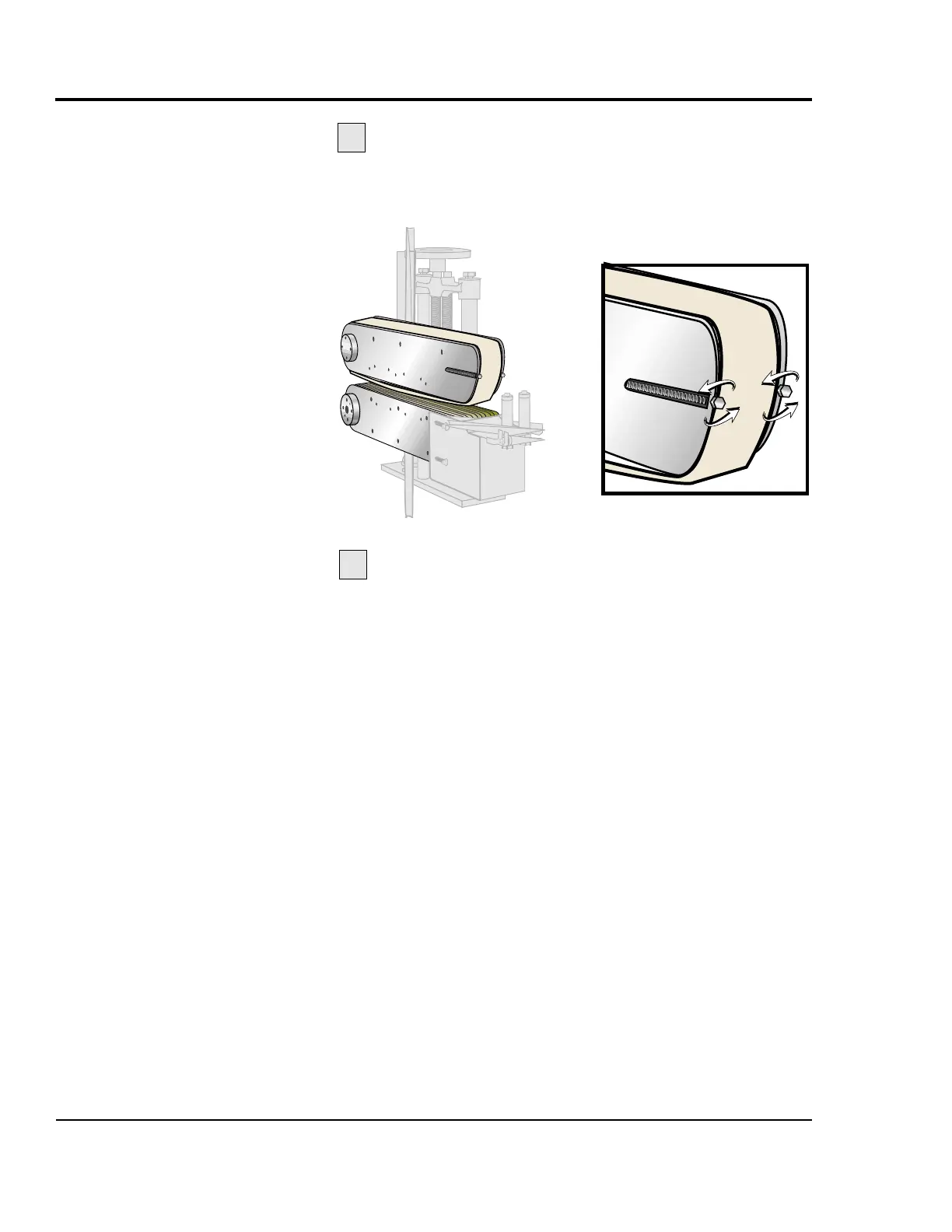

Adjust tension by turning the threaded tension rods.
Keep tension on front and back edges, top and bottom
belts as even as possible:
4
Fine tune tension:
● Lower the belts to a gap of about 1/8" (3 mm). See
Adjusting Belt Gap, Section 3.
● From the upstream end of the belts, look down
the length of the belts at the gap between the belts.
If the gap is not even, adjust the tension until the
gap is even and measures 1/8”. The shape of the gap
should not be concave (over-tightened) or convex
(too loose).
● Check tension and readjust as necessary.
5
TESTING BELT
TENSION
C
ONTINUED
To Next Page
