Turn the main power disconnect to the off
position.

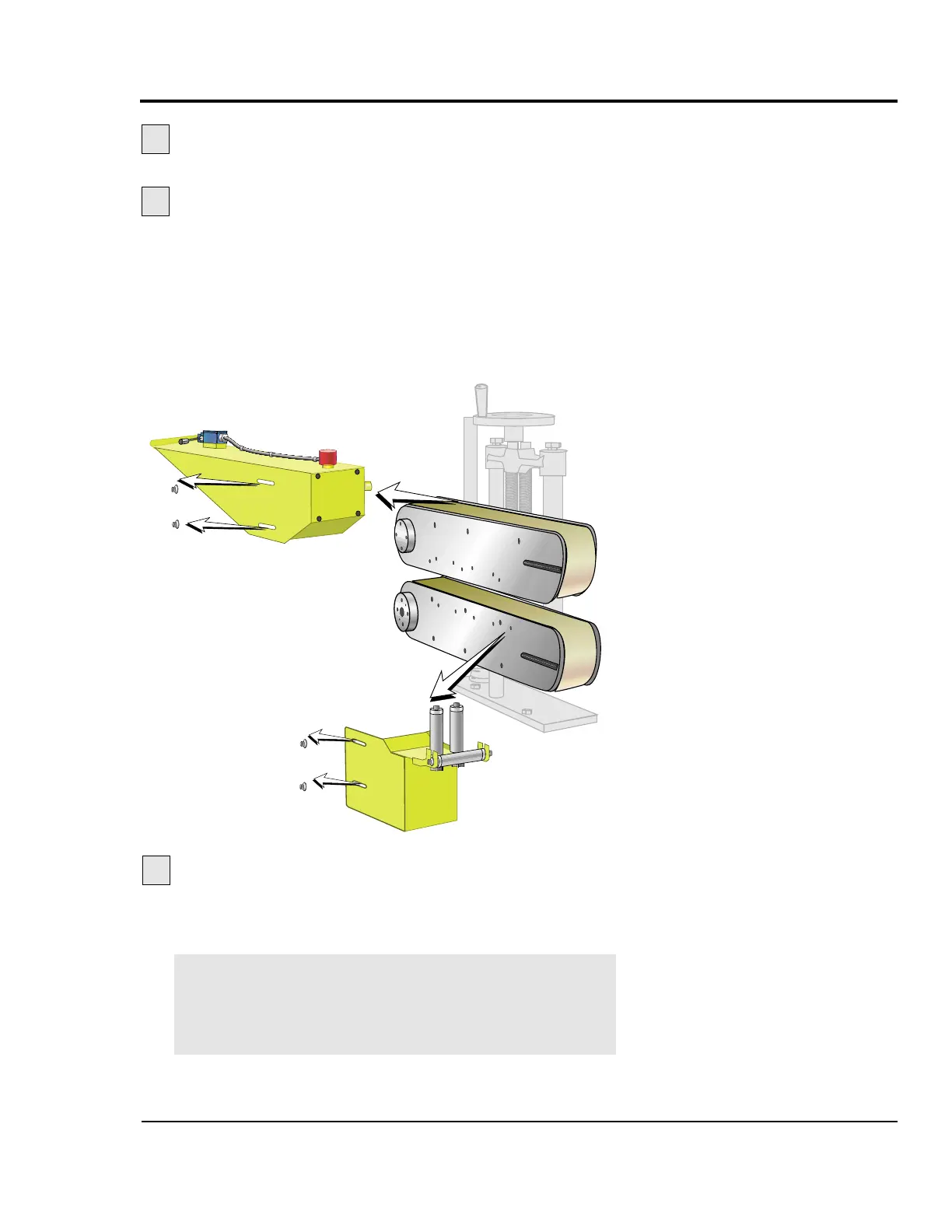

Remove the upper and lower belt guards:
● Remove the screws attaching guards to unit (four
each: top, bottom, front and rear).
● Disconnect the safety cable (upper guard).
● Lift off and remove guard.
T
ESTING BELT
TENSION
1
2
Check belt tension. Use a tension-measuring tool.
Belts should be just tight enough to prevent slipping, and
the gap between the upper and lower belts should be even
across the width of the belt.
NOTE: It is important to have the proper belt ten-
sion. Loose belts result in belt and product slippage;
over-tightened belts result in distorted product and
can lead to premature bearing failure.
3
UGE048/1103 CSC Combination Puller/Cutter
MAINTENANCE 5-13
Continued
To Next Page
