Conair CSC - Replacing Belts

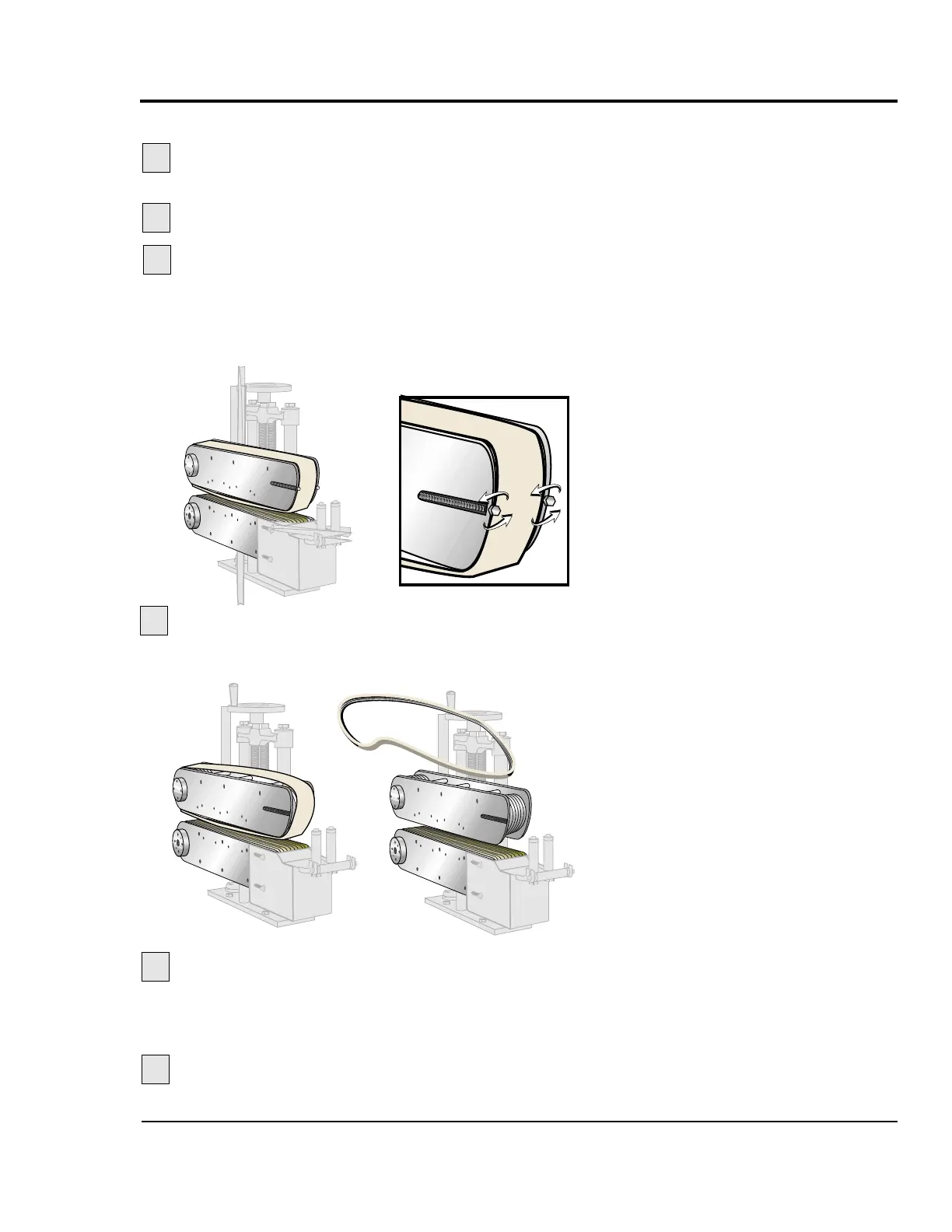

To replace puller belts:
Turn the rotary disconnect to the OFF posi-
tion.
Remove the upper and lower belt guards.
Release belt tension
by loosening the threaded
rods. Keep tension on front and back edges as even as
possible by turning each rod 5-10 revolutions, then
switching to the other side. Continue until the belt is
loose enough to slide off the puller.
1
2
3
Remove the belt from the puller. Check the
rollers and pulleys for buildup, especially inside grooves.
Clean if necessary.
4
REPLACING
BELTS
UGE048/1103 CSC Combination Puller/Cutter
MAINTENANCE 5-17
Reverse the process to install the new belt.
Make sure ribs inside the belt fit properly into grooves,
and keep tension on front and back sides as even as possi-
ble by alternating between the two threaded rods.
Adjust belt tension and belt gap. See Testing Belt
Tension, Section 5.
5
