UGE048/1103 CSC Combination Puller/Cutter
I
NSTALLATION 3-13
The optional Pneumatic Upper Belt Actuator can also be used
to position the upper belt. (See Appendix E.)

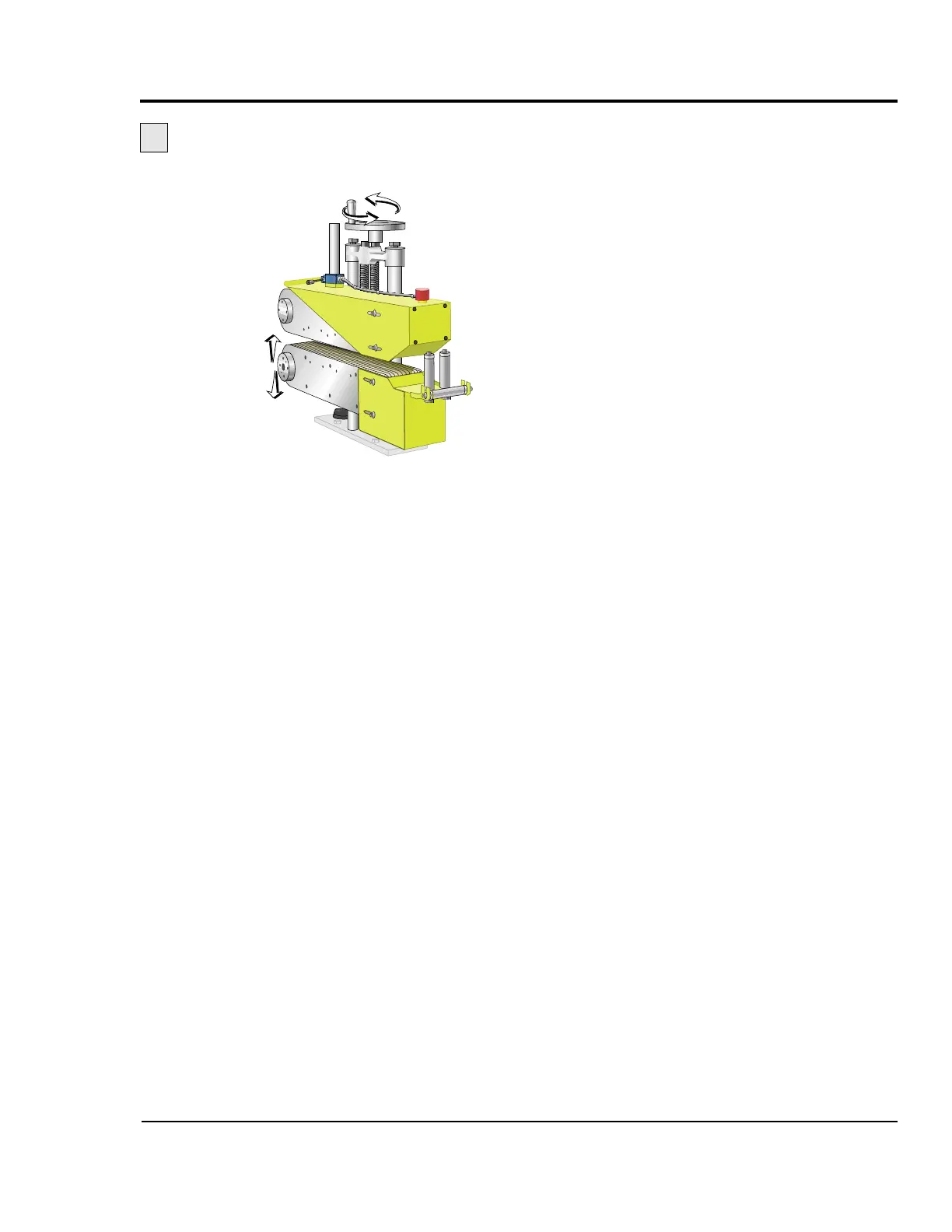

Place the handwheel on the right threaded rod
and turn to move the lower belt up and down.
2
SETTING THE
BELT
G
AP
CONTINUED
