CONFIGURATION

Example of the network interface with dynamic and static DHCP server:

• The range of allocated addresses from 192.168.1.2 to 192.168.1.4.

• The address is allocated 10 minutes.

• Client's with MAC address 01:23:45:67:89:ab has IP address 192.168.1.10.

• Client's with MAC address 01:54:68:18:ba:7e has IP address 192.168.1.11.

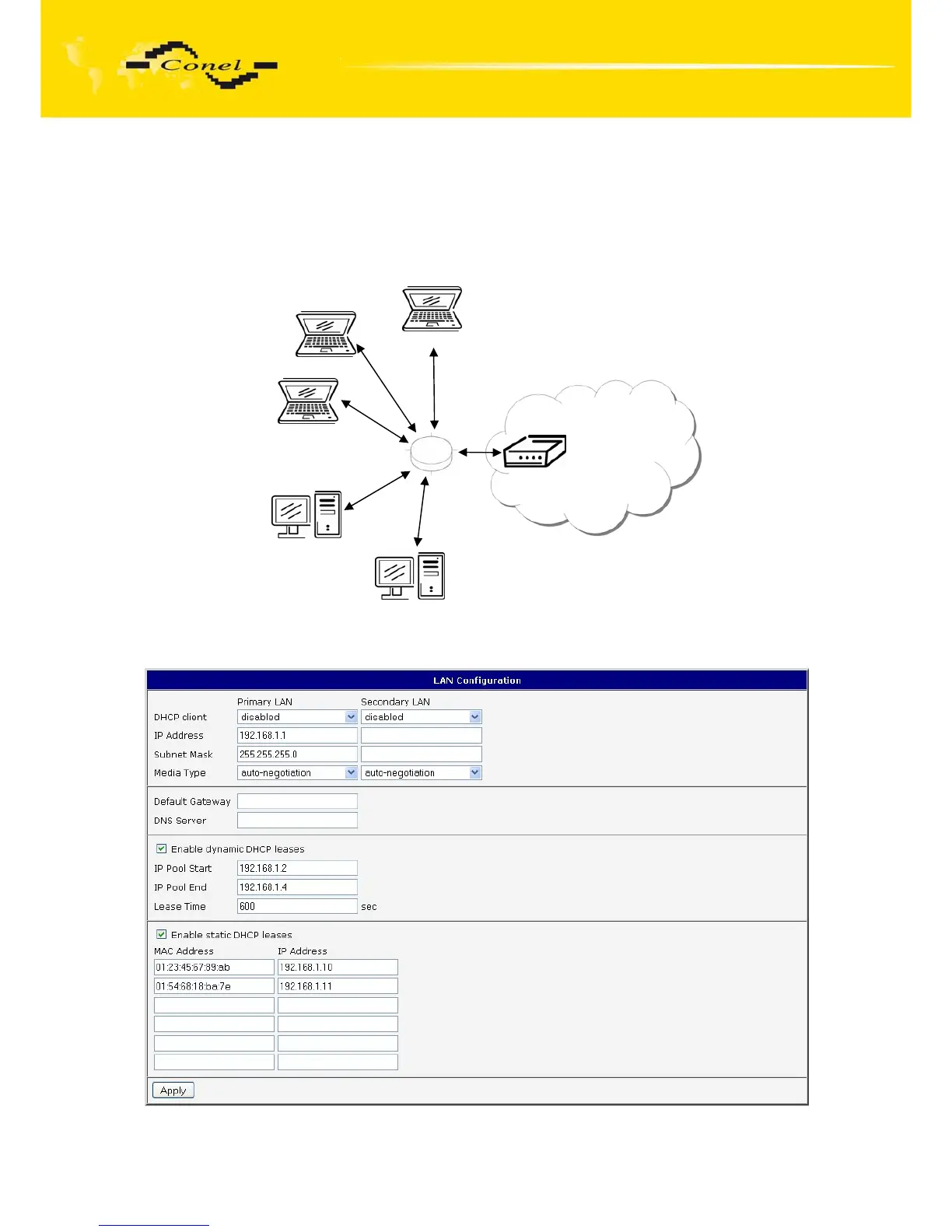

Fig. 11: Topology of example LAN configuration 2

Fig. 12: Example LAN configuration 2

192.168.1.3

192.168.1.4

ETH

192.168.1.2

GSM/GPRS

192.168.1.10

01-23-45-67-89-ab

192.168.1.11

01-54-68-18-ba-7e

192.168.1.1
