CONFIGURATION

Example of external port configuration:

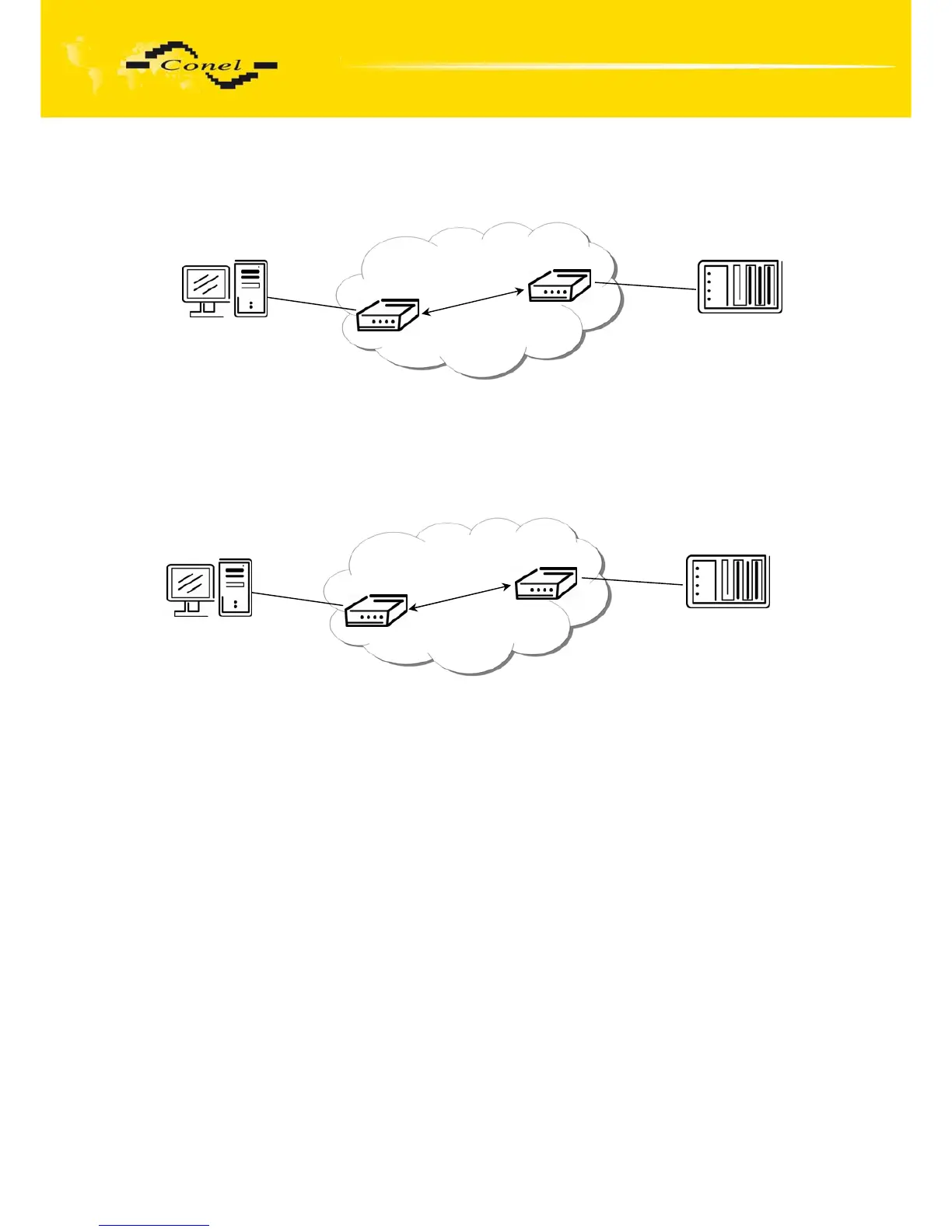

Fig. 51: Example of expansion port configuration 1

Fig. 52: Example of expansion port configuration 2

ppp0 10.0.0.1

ppp0 10.0.0.2

Settings in the router

Mode: TCP server

Server Address: -

TCP Port: 2000

RS232

PLC

Settings in the router

Mode: TCP client

Server Address: 10.0.0.2

TCP Port: 2000

192.168.1.100

ppp0 10.0.0.1

192.168.1.1

ppp0 10.0.0.2

Settings in application on PC:

TCP connection on 10.0.0.2:2000

Settings in the router

Mode: TCP server

Server Address: -

TCP Port: 2000

ETH

RS232

PLC

Default Gateway 192.168.1.1
