CONFIGURATION

Example of the OpenVPN tunnel configuration:

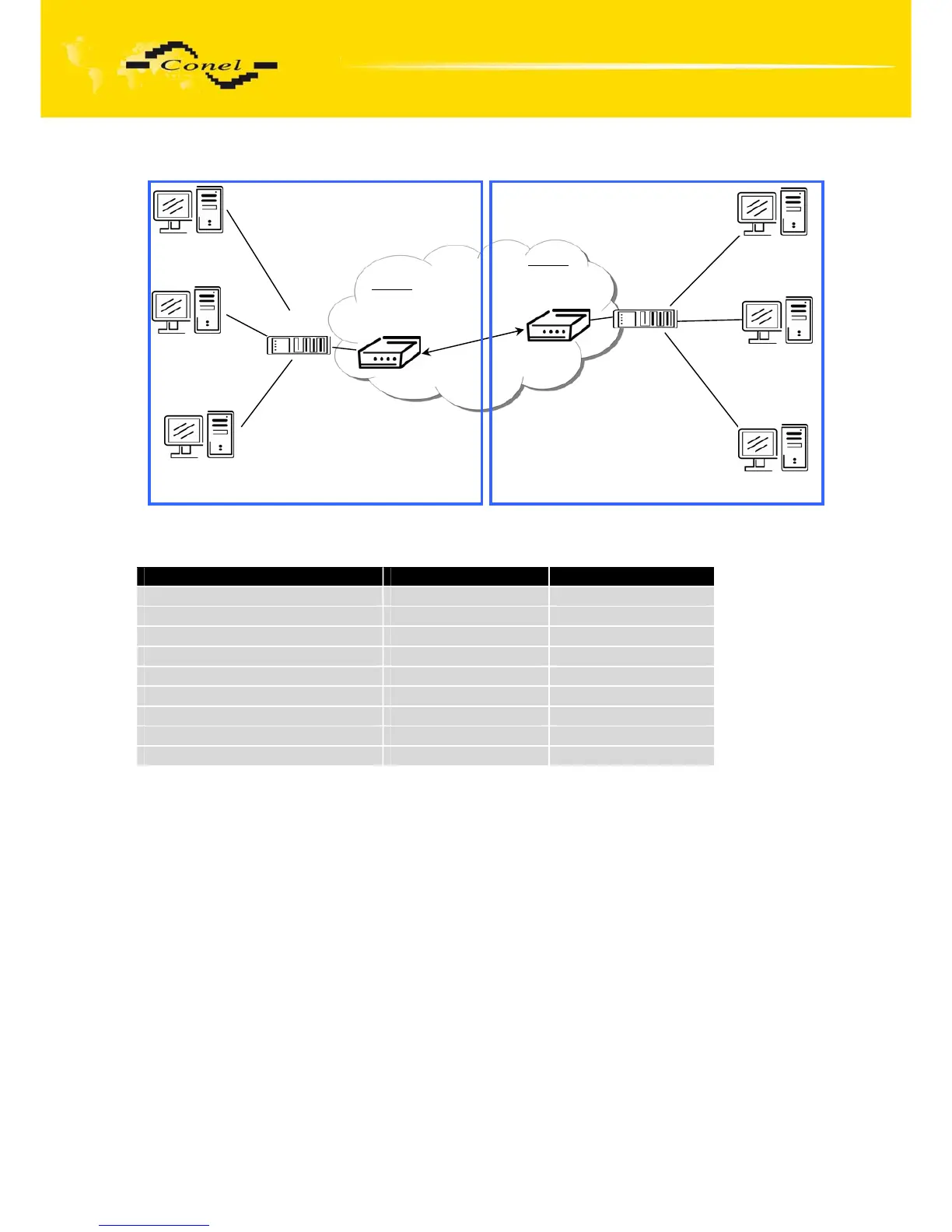

Fig. 31: Topology of example OpenVPN configuration

OpenVPN tunnel configuration:

Configuration A B

Protocol UDP UDP

UDP Port 1194 1194

Remote IP Address 10.0.0.2 10.0.0.1

Remote Subnet 192.168.2.0 192.168.1.0

Remote Subnet Mask 255.255.255.0 255.255.255.0

Local Interface IP Address 19.16.1.0 19.16.2.0

Remote Interface IP Address 19.16.2.0 19.18.1.0

Compression LZO LZO

Authenticate mode none none

Table 28: Example OpenVPN configuration

Examples of different options for configuration and authentication of OpenVPN can be

found in the configuration manual OpenVPN tunnel.

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

Router A

ppp0 10.0.0.1

192.168.1.0

tun0 19.16.1.0

Router B

ppp0 10.0.0.2

192.168.2.0

tun 0 19.16.2.0

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

Switch
