CONFIGURATION

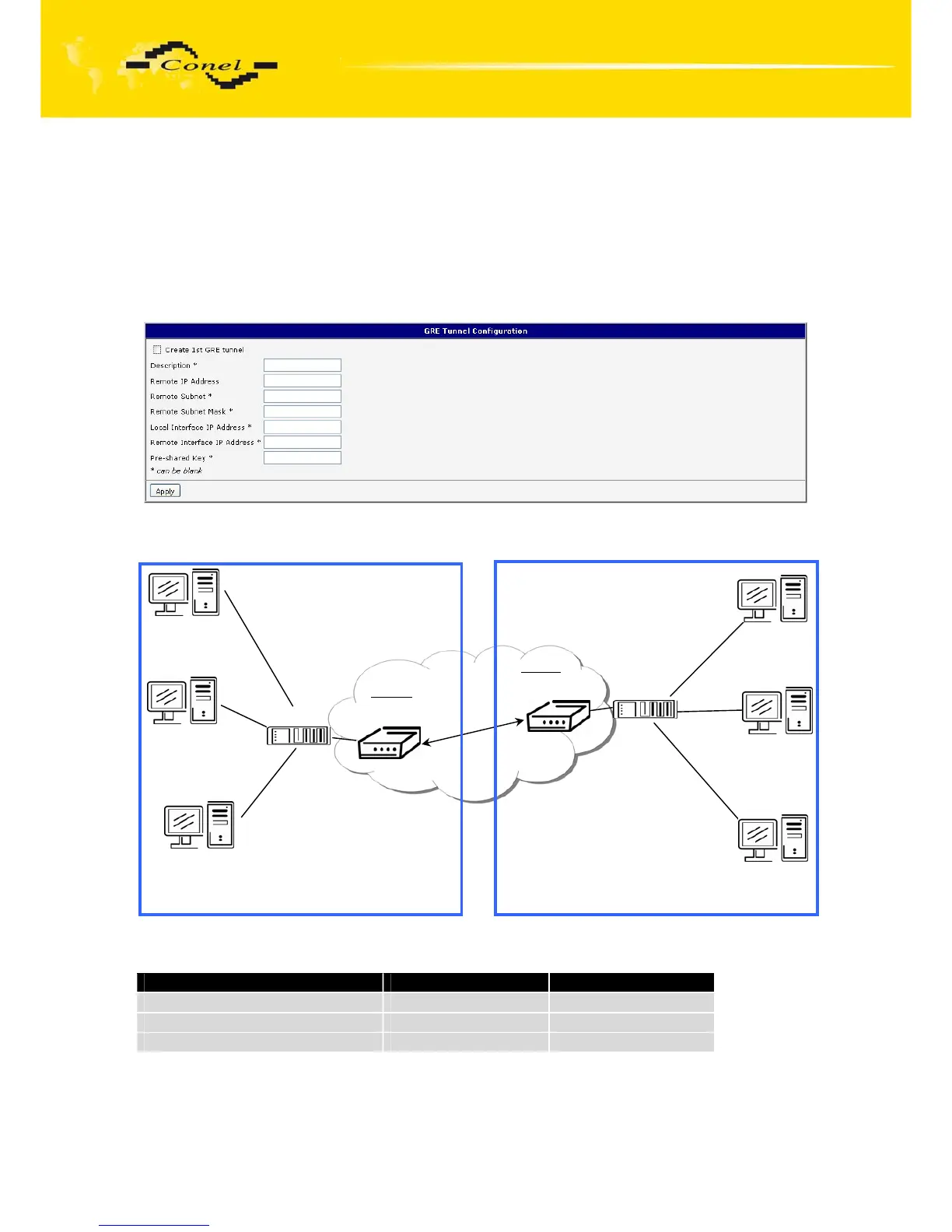

Fig. 36: GRE tunnel configuration

Example of the GRE Tunnel configuration:

Fig. 37: Topology of GRE tunnel configuration

GRE tunnel Configuration:

Konfigurace A B

Remote IP Address 10.0.0.2 10.0.0.1

Remote Subnet 192.168.2.0 192.168.1.0

Remote Subnet Mask 255.255.255.0 255.255.255.0

Table 34: Example GRE tunnel configuration

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

Router A

ppp0 10.0.0.1

eth0 192.168.1.1

Router B

ppp0 10.0.0.2

eth0 192.168.2.1

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

Switch
