CONFIGURATION

Example of the IPSec Tunnel configuration:

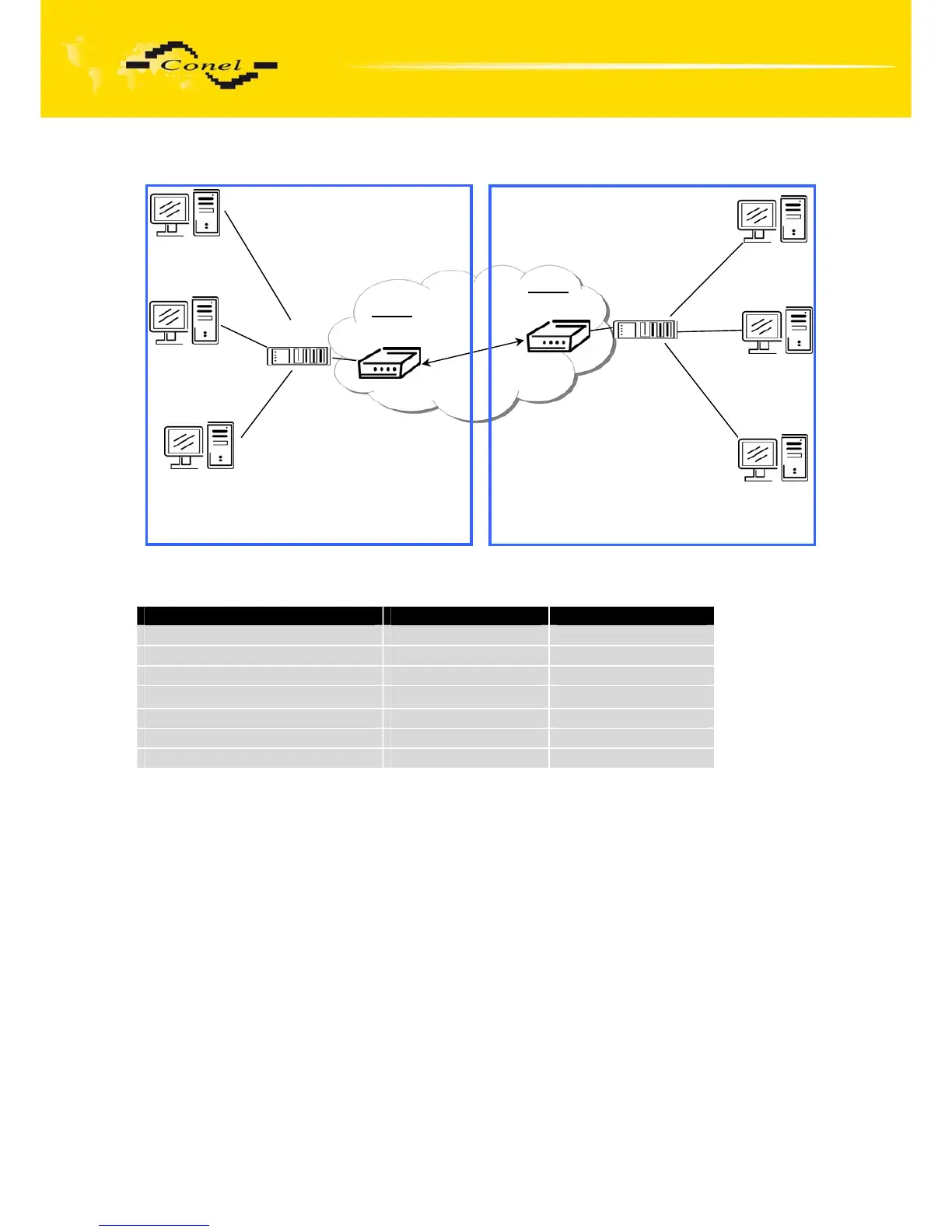

Fig. 34: Topology of example IPsec configuration

IPsec tunnel configuration:

Configuration A B

Remote IP Address 10.0.0.2 10.0.0.1

Remote Subnet 192.168.2.0 192.168.1.0

Remote Subnet Mask 255.255.255.0 255.255.255.0

Local Subnet 192.168.1.0

192.168.2.0

Local Subnet Mas: 255.255.255.0 255.255.255.0

Authenticate mode pre-shared key pre-shared key

Pre-shared key test test

Table 31: Example IPsec configuration

Examples of different options for configuration and authentication of IPsec can be

found in the configuration manual IPsec tunnel.

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

Router A

ppp0 10.0.0.1

192.168.1.0

Router B

ppp0 10.0.0.2

192.168.2.0

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

Switch
