CONFIGURATION

Example of the L2TP Tunnel configuration:

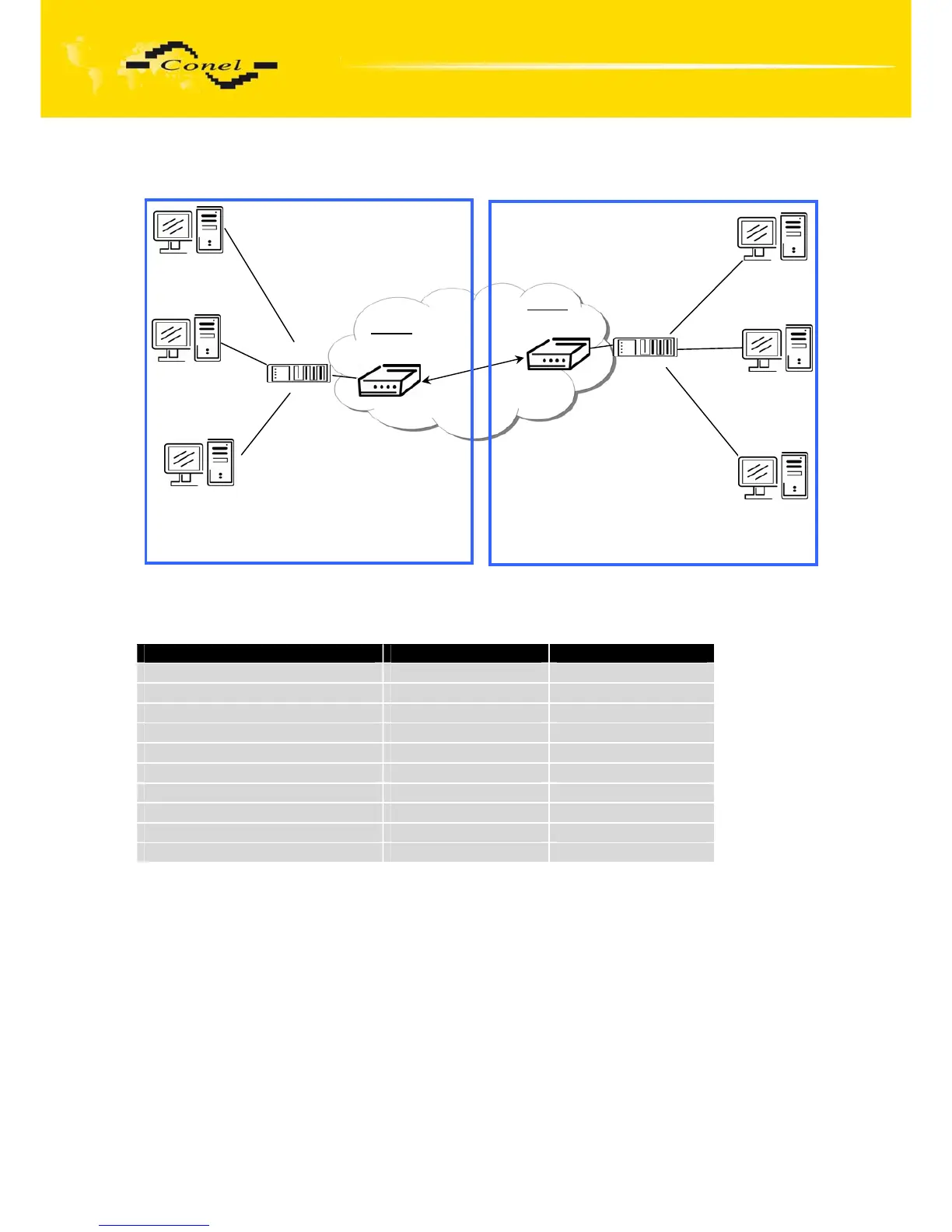

Fig. 39: Topology of example L2TP tunnel configuration

Configuration of the L2TP tunnel:

Konfigurace A B

Mode L2TP Server L2TP Client

Server IP Address --- 10.0.0.1

Client Start IP Address 192.168.1.2 ---

Client End IP Address 192.168.1.254 ---

Local IP Address 192.168.1.1 ---

Remote IP Address --- ---

Remote Subnet 192.168.2.0 192.168.1.0

Remote Subnet Mask 255.255.255.0 255.255.255.0

Username username username

Password password password

Table 36: Example L2TP tunel configuration

192.168.1.4

192.168.1.3

192.168.1.2

192.168.2.2

192.168.2.3

192.168.2.4

Router A

ppp0 10.0.0.1

192.168.1.1

Router B

ppp0 10.0.0.2

192.168.2.1

Default Gateway 192.168.1.1

Default Gateway 192.168.2.1

Switch
