CONFIGURATION

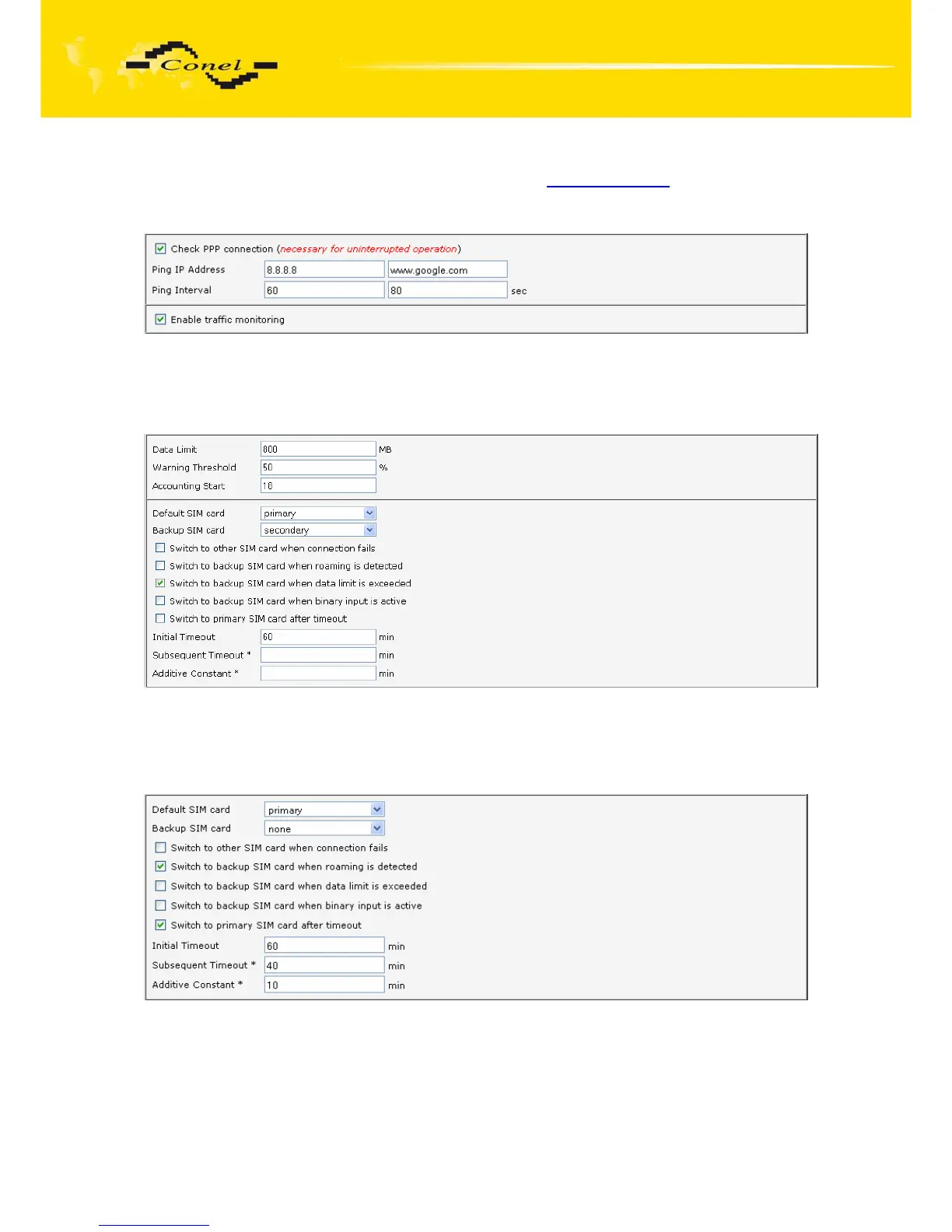

Example of setting controls the PPP connection to the address 8.8.8.8 in the time

interval of 60s for primary SIM card and to the address www.google.com

in the time interval

80s for secondary SIM card. In the case of traffic on the PPP control pings are not sent, but

the traffic on PPP is observed:

Fig. 19: Example of GPRS configuration 1

Example of switching to a backup SIM card after exceeding the data limits of 800MB

Sending SMS warning when reaching 400MB. With the beginning billing day of the 18th

of the month:

Fig. 20: Example of GPRS configuration 2

Example: Primary SIM card switch to offline modes, after router detection roaming.

The first attempt to switch back to the default SIM card is done after 60 minutes, the second

after 40 minutes, the third after 50 minutes (40 +10)...

Fig. 21: Example of GPRS configuration 3
