corob D300 - Removing a Canister from the Machine

3 - Maintenance instructions 29
Tools required:
• Special tool
3.9.1 Removing a canister from the machine
Procedure
1. Switch off the COROB
TM
D300 and unplug the mains cable from the outlet.
2. Remove front casing, see instructions on page 15.
3. Remove the corner frame on that side where you change a canister.
4. Remove the cover:
- Turn the cover almost to the vertical position
- Pull out the hinge from the hole in the frame,
- Detach the other hinge same way.
5. Lift the back panel out of place.
6. Remove the side plate:
- Lift the side plate up so that the rear hooks arise from the holes in the frame.
- Turn the plate outwards => the front comes out from the beam’s groove.
7. Close the tap behind the pump,
8. Remove the hose from the pump:
- Place the special tool between the pump and valve
=> press backwards,
- Pull out the tap from the pump.
9. Remove the wire from the stirring motor under the
canister, see figure 65.
10. Drain colorant both from the canister and the hose to an
empty can.
11. Lift the canister up and remove it from the rack, see
figure 66.
CAUTION / IMPORTANT Handle, store, and dispose of all agents according to the
instructions supplied with them.

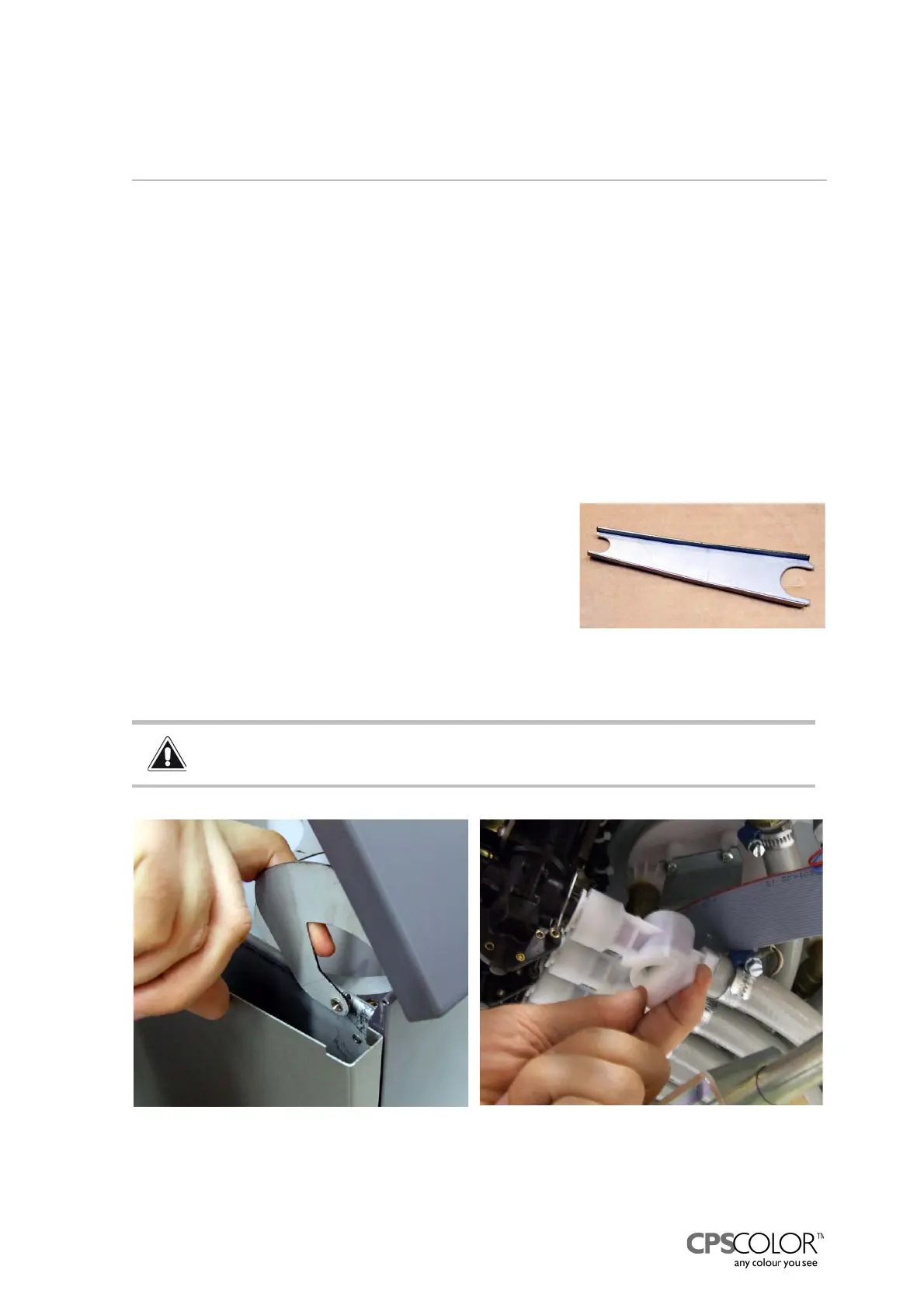

Figure 61: A special tool that is
needed when you change a
canister.
Figure 62: Pull the hinge outwards and the
hinge pin comes out from the hole in the frame.
Figure 63: Close the valve behind the pump.
