38 3 - Maintenance instructions
COROB
TM
D300
Procedure:
1. Switch off the COROB
TM
D300 and unplug the mains cable from the outlet.
2. Remove the protective cover from top of the canisters.
3. Open two screws on top and remove the back panel.
4. Remove side plates.
5. Remove the lower plate.
6. Disconnect the wire from that motor you want to change.
7. Open 4 crosshead screws in the bottom of the canister and detach the support with the motor.
8. Open 2 screws and detach the motor from the support, see figure 84.
9. Fasten a new motor and assemble the COROB
TM
D300 in opposite order.

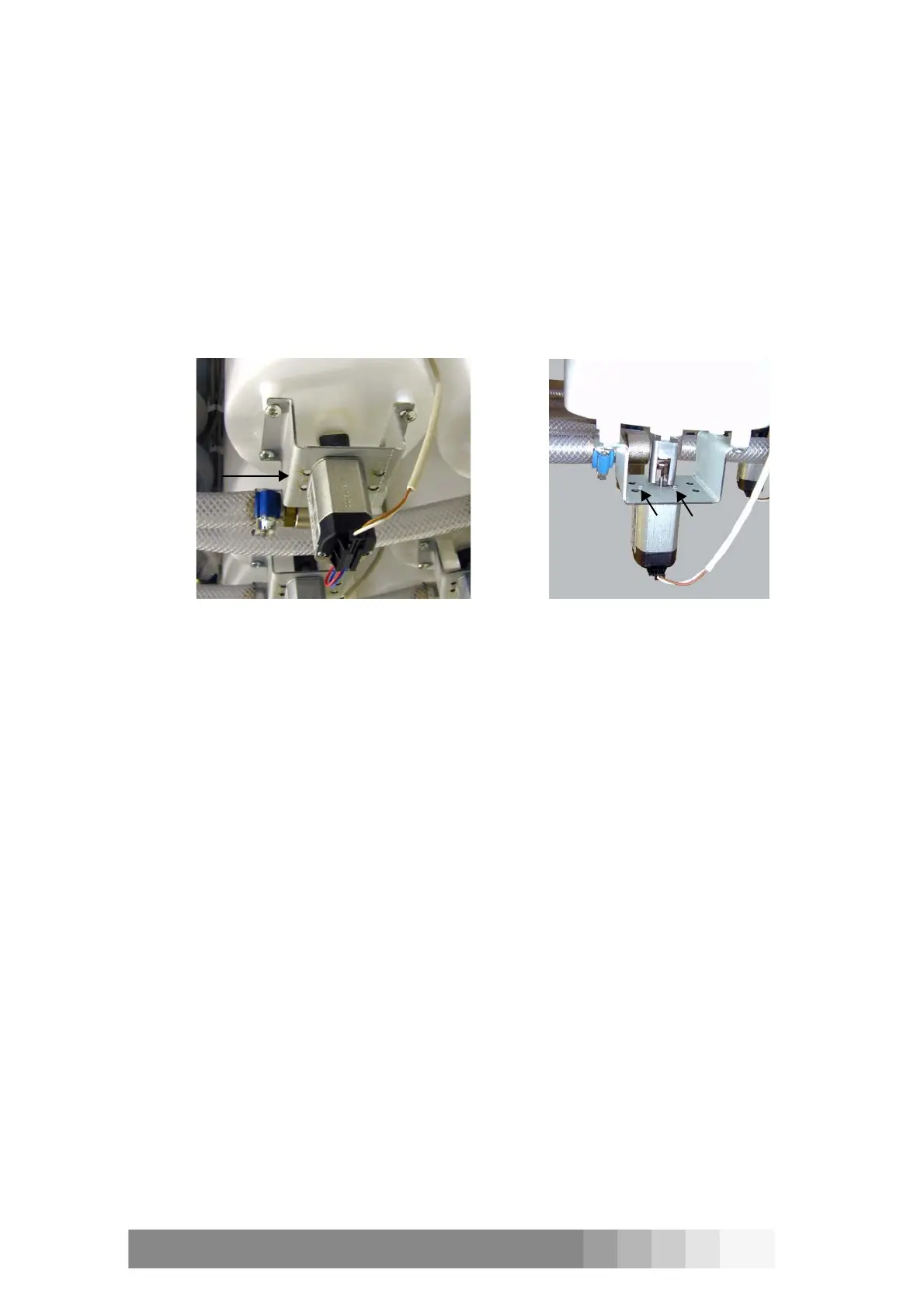

Support
Figure 84: The stirring motor is
attached to the canister with a support.
Figure 84: The motor is
fastened to the support with
two screws.
