1 - General 3
Main mechanical parts
Order of the pumps and hoses
The numbering of the canisters and pumps is also marked in figure 50 on page 25.
3
1
2
4
C

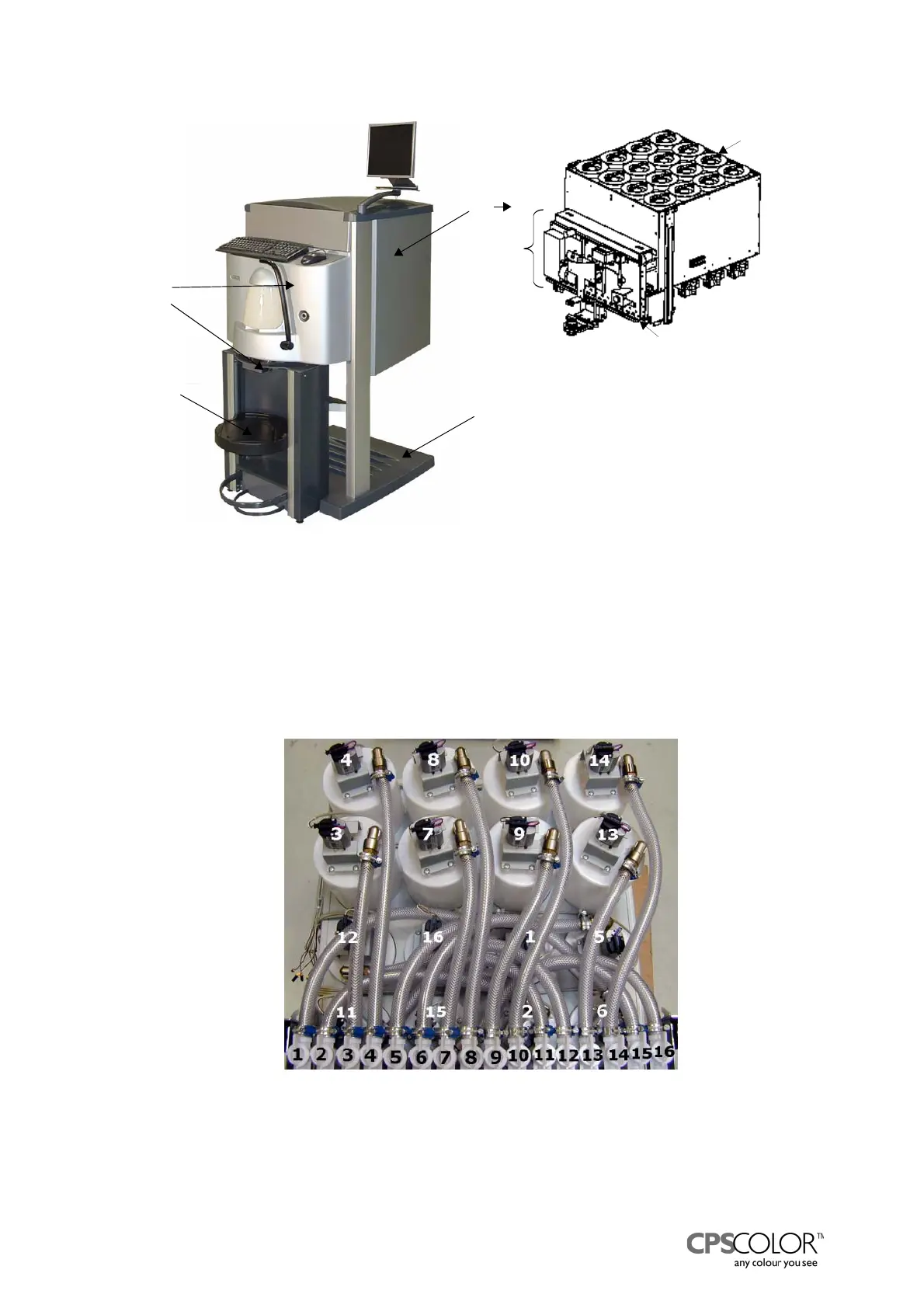

Figure 2: Main assemblies:
1. Foot
2. Upper frame
3. Can table
4. Puncher
2
1
4
3
Figure 3: Parts of the upper frame:
1. Rack for canisters
2. Colorant canisters
3. Dispensing module
4. Valves
C Interface board C
Figure 4: Fixing order of the hoses and numbering of
pumps and canisters is marked in above picture.
Remember that the picture is taken from underside.
