Currie tech IZIP - Seat and Handlebar Mounting Reflectors; Seatstay Mount Reflector Bracket Assembly

24


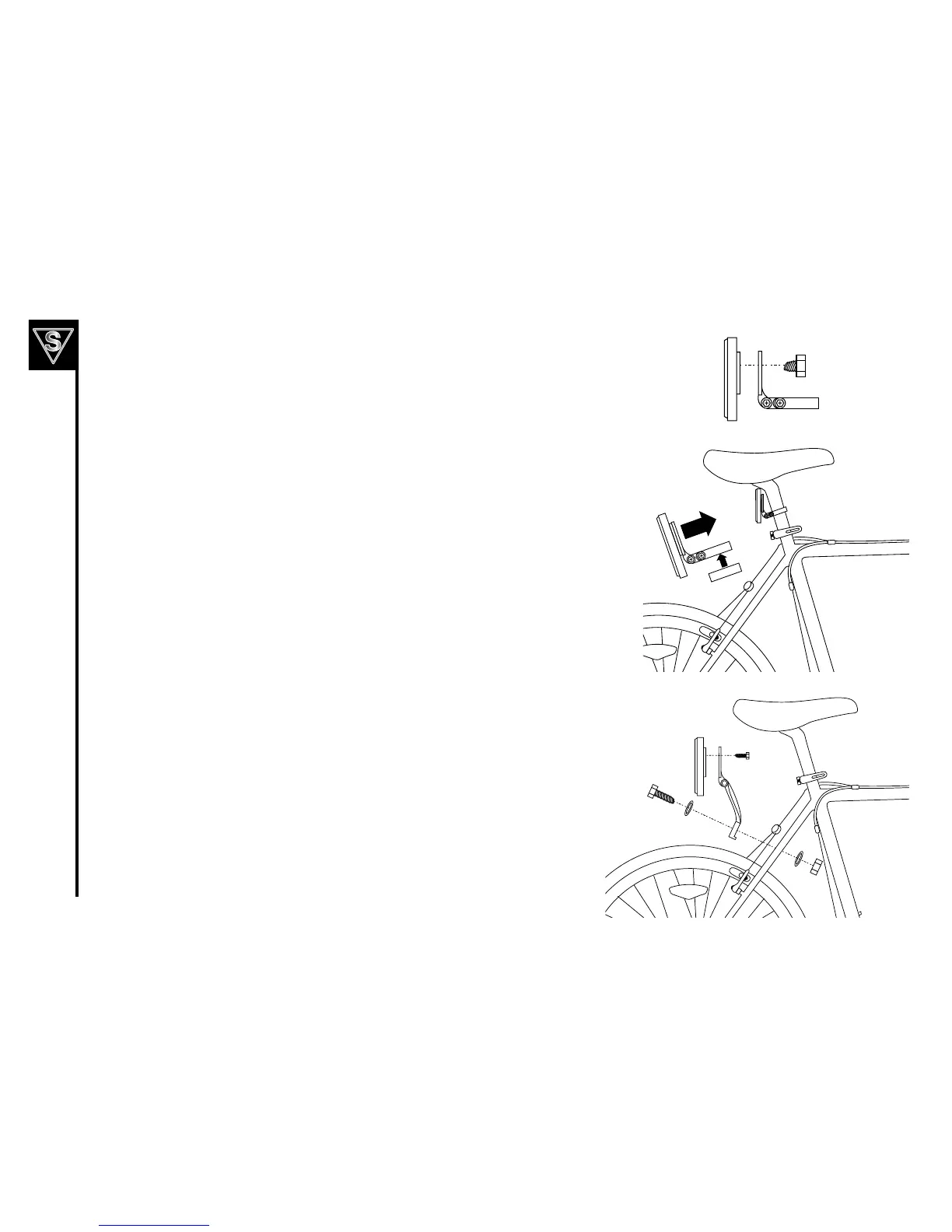

Firstattachthereflectortothereflectorbracketwiththereflectorscrew,seethetop
diagram.Next,removetheclampscrewandopentheclampingreflectorbracket.
Placeclampingreflectorbracketaroundthehandlebarorseatpost.Iftheclampis
too loose, insert a rubber spear inside of the clamp. Tighten the clamp screw to hold
reflectorassemblyinplace,seetheseconddiagram.Finally,adjustthereflector
assembly in place and ensure that it is upright and facing away from the bike.

Firstinsertonewasherontothehexboltandinserthexboltthroughthereflector
bracketandthenthroughtheseatstaybridge.Next,insertasecondwasherontothe
bolt and thread a hex nut onto the bolt behind the seatstay bridge. Tighten bolts until
snug,makingsurethereflectorisinanuprightposition.Seediagramatthebottom
right.
