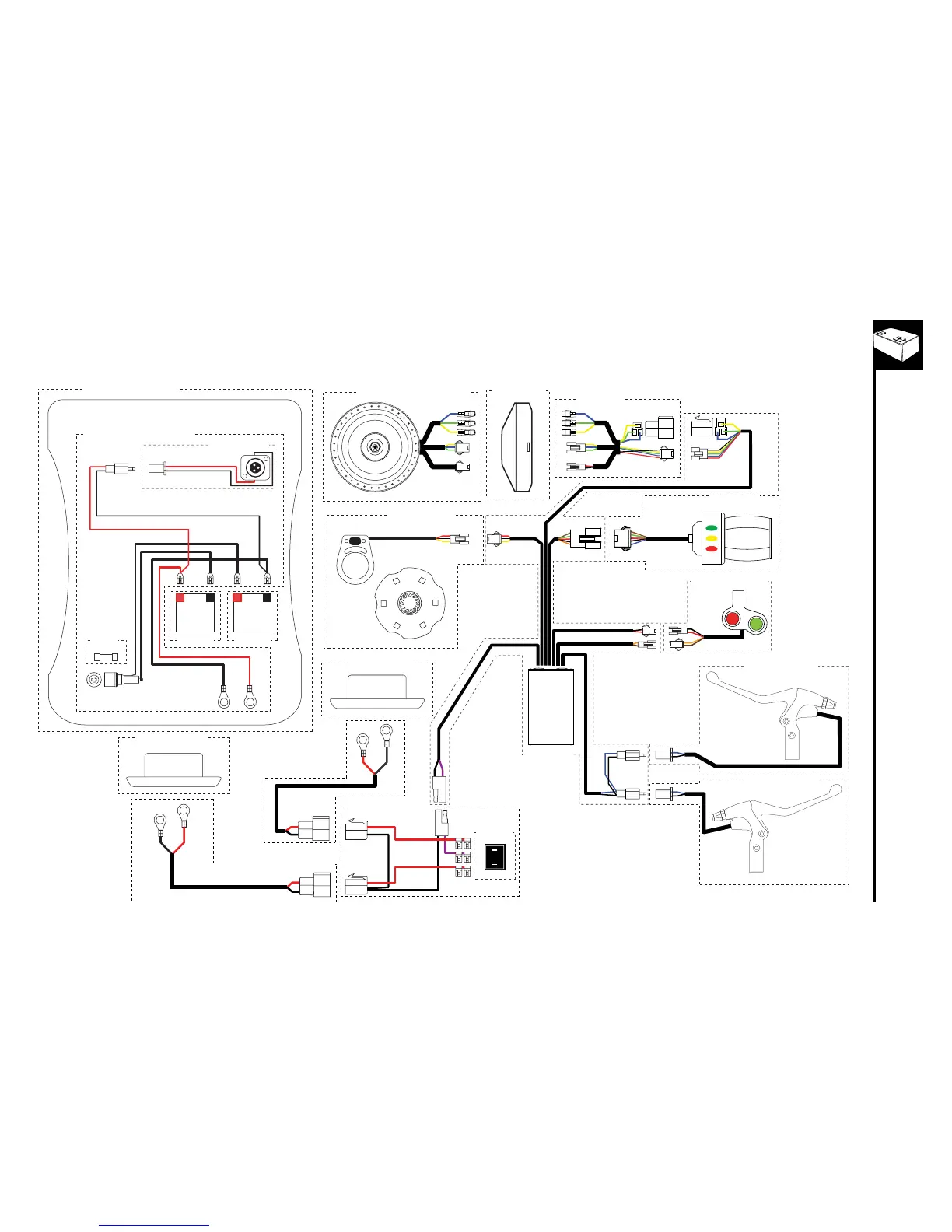

Currie tech IZIP - Wiring Diagram - Tag;Pas W; RMB Bicycles (2010+) with Hub Motor

53
Forupdatedandnewwiringdiagrams,pleasevisitwww.currietech.comorcallourcustomerservicelineat1-800-377-4532
WIRE HARNESS, BATTERY TERMINAL
BATTERY TERMINAL
BATTERY TERMINAL
Secondardy Battery Box
(optional)
1
2
3
CHARGER PORT
BATTERY CASE (Complete)
BATTERY
BATTERY
WIRE HARNESS, BATTERY CASE
FUSE
CADENCE SENSOR
THROTTLE
FULL
HALF
LOW
JUNCTION BOX
WIRE HARNESS
WHEEL (w/ BRUSHLESS HUB MOTOR)
ON
OFF
PAS
TA G
HANDLEBAR CONTROLS
BRAKE LEVER, LEFT
BRAKE LEVER, Right
WIRE HARNESS, SWITCH
SWITCH
CONTROLLER

(Diagramisforrepresentationalpurposeonly.Yourbicycle'swiringsystemmaydiffer)
