Currie tech IZIP - Linear-Pull Brake Setup

71
3mmwasherB6mmwasherB
WasherA
Brake arm
WasherA
Washer
Shoefixingnut


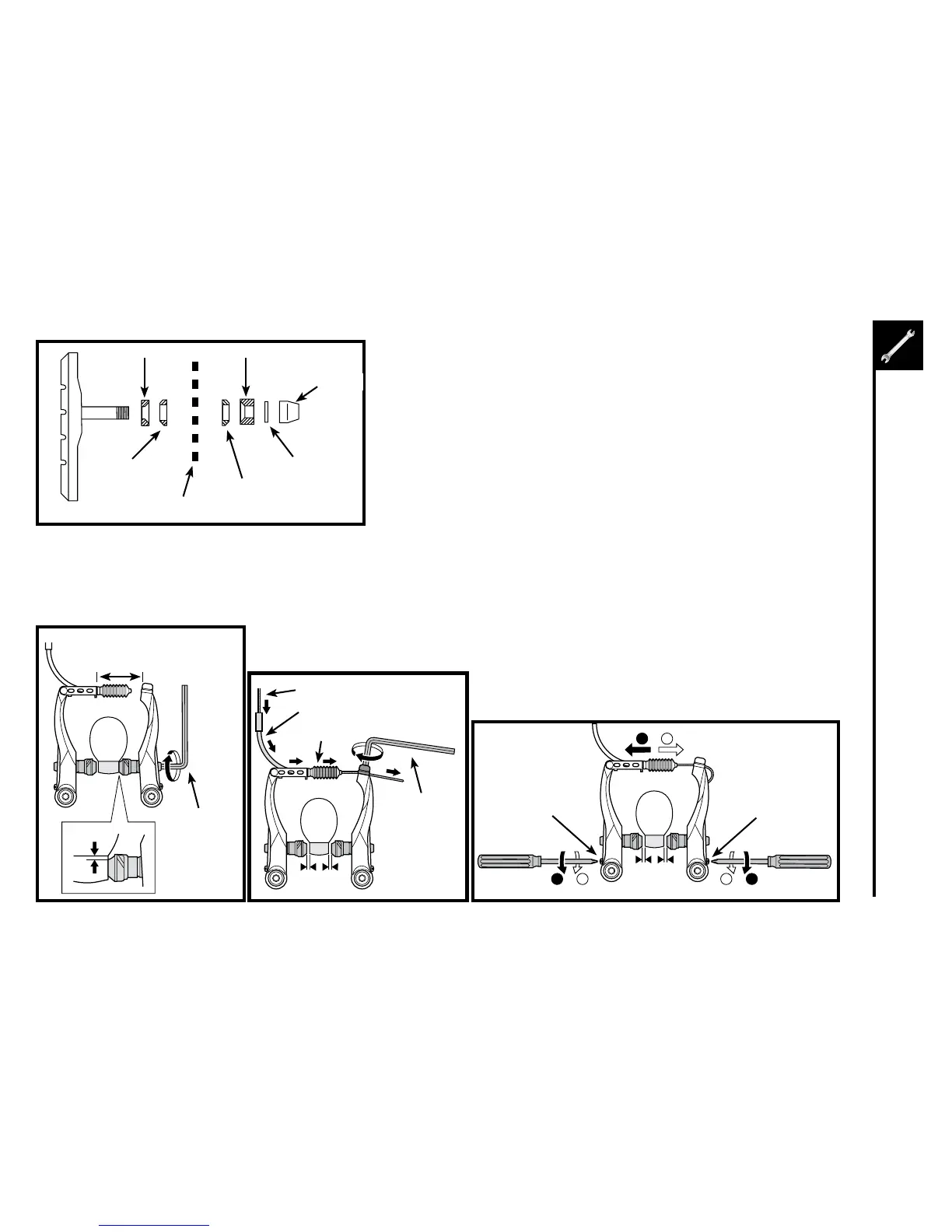

1. Whileholdingthebrakeshoeagainsttherim,adjusttheamount
ofshoeprotrusionbychangingoverwasherB(3mmor6mm)so
that dimension Aiskeptat32mmormore.more.Generally,you
willinstallthe6mmwasherontheinsidefornarrow700cwheels,
andthe3mmwasherontheinsideforwider26"wheels.
2. Whileholdingtheshoeagainsttherim,tightentheshoefixingnut.
The brake shoe should be centered vertically on the rim.
3. Threadthebrakecablethroughthebrakenoodleandboot.
4. Settheclearancebetweenthebrakeshoesandtherimto~1mm
on each side and tighten the cable fixing bolt. This distance does
not need to be set exactly at the brake arm, as you can finely
adjust it more easily with the brake lever barrel adjustor (see
photoonpage61).
5. Ifthebrakepadsarenotcenteredaroundtherim,youcanadjust
the balance with the spring tension adjustment screws.
5mmAllenkey
32mmormore
A
B
1mm
5mmAllenkey
Brake Cable
BrakeNoodle
Boot
1mm 1mm
SpringTension
AdjustmentScrew
SpringTension
AdjustmentScrew
1mm 1mm
1
2
11 22
1
2
5

