Currie tech IZIP - Rear Fender; Screw Mounting System; 10 Mm Bolt and Screw System

81


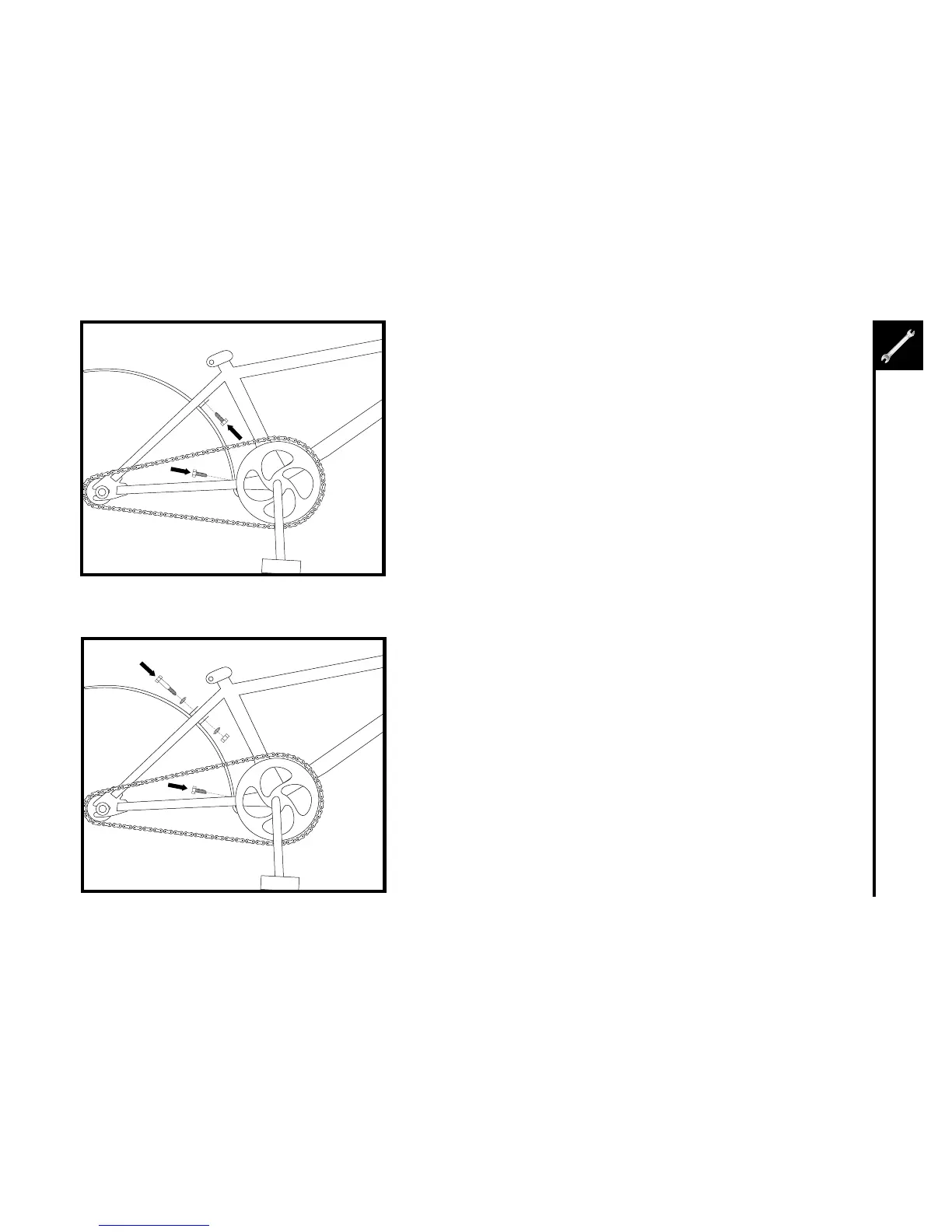

The rear fender is mounted at the seatstay brace. There are two
ways in which to mount your rear fender. The first is the screw
mountingsystem(seefigure3),andthesecondisthe10mmbolt
andscrewsystem(seefigure4).Identifythemountingsystemused
on your bicycle and follow the given instructions for that particular
type of mounting system.

Firstremovetherearwheel.Placethefenderassemblybetween
the stays, making sure the fender bracket holes line up with those
intheframe.Attachthefenderbyusingtwoscrewstodirectly
mount the fender onto the frame. The mounts are located below
the seat post and near the rear of the crank. Tighten all screws
until snug.

Firstremovetherearwheel.Placethefenderassemblybetween
the stays, making sure the fender bracket holes line up with those
intheframe.Attachthefenderbyusingonescrewtodirectly
mountthefenderontotheframenearthecrank.Next,usethe
10mmhexboltandnuttoattachthefendertothebracebetween
the seat stays, near the seat post. Tighten all bolts and screws
until snug.


