Presseachbrakelevertomakesurethatthereisnobindingandthatthebrakepadspresshardenoughontherimstostop
thebike.Thebrakepadsshouldbeadjustedsotheyare1mmto2mmawayfromtherimwhenthebrakesarenotapplied.
Brakepadsshouldbecenteredontherimand“toed-in”sotherearportionofeachbrakepadisabout0.5-1.0mmfarther
from the rim than the front portion of the brake pad.












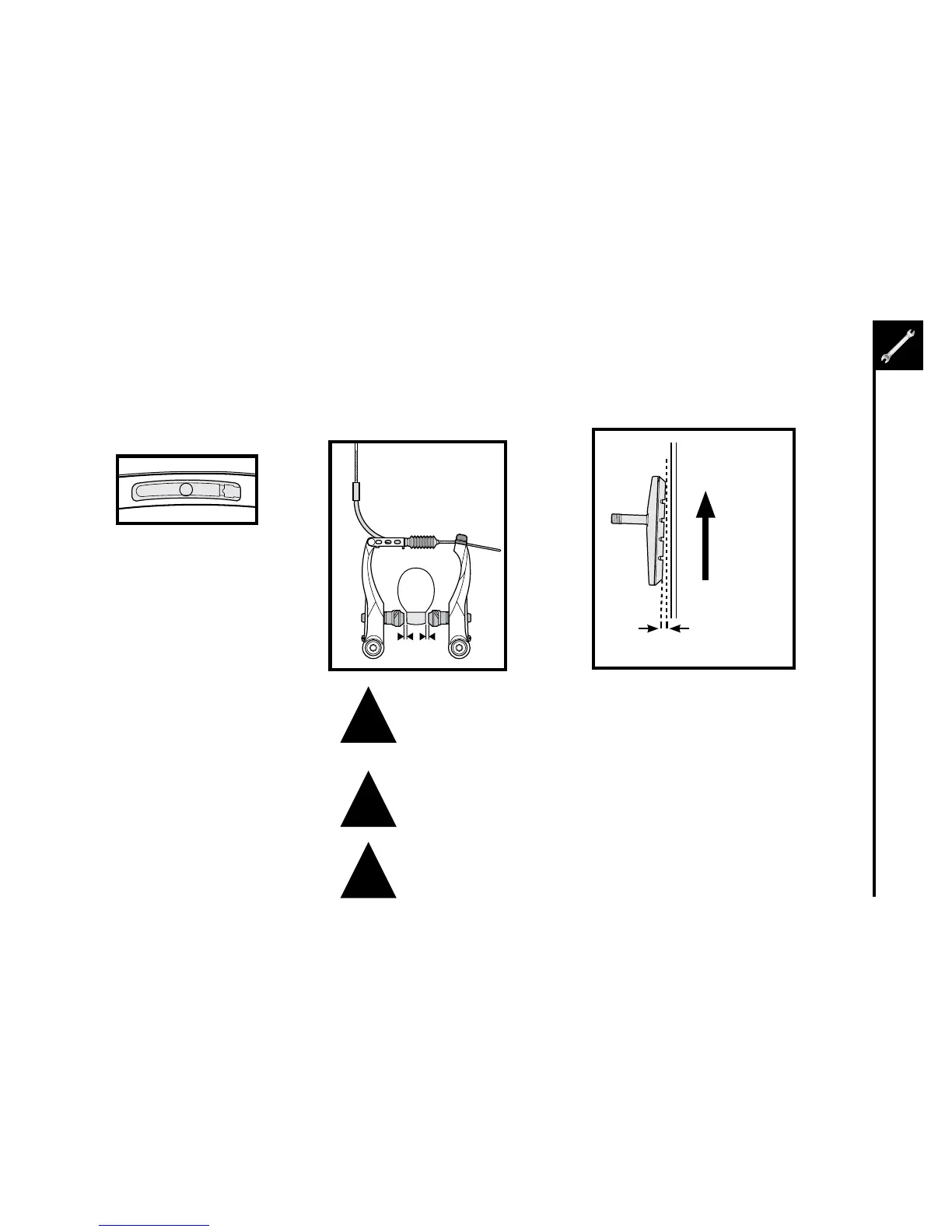

Brake pads should be aligned with the
rim surface. The brake pads must not
contact the tire.
Brake pads should be parallel to
the rim
Brake pads should be toed-in
!
!
!
Directionof
wheel rotation
Rim
0.5-1.0mm
1mm 1mm
