Section 1 - Product Overview
Hardware Overview

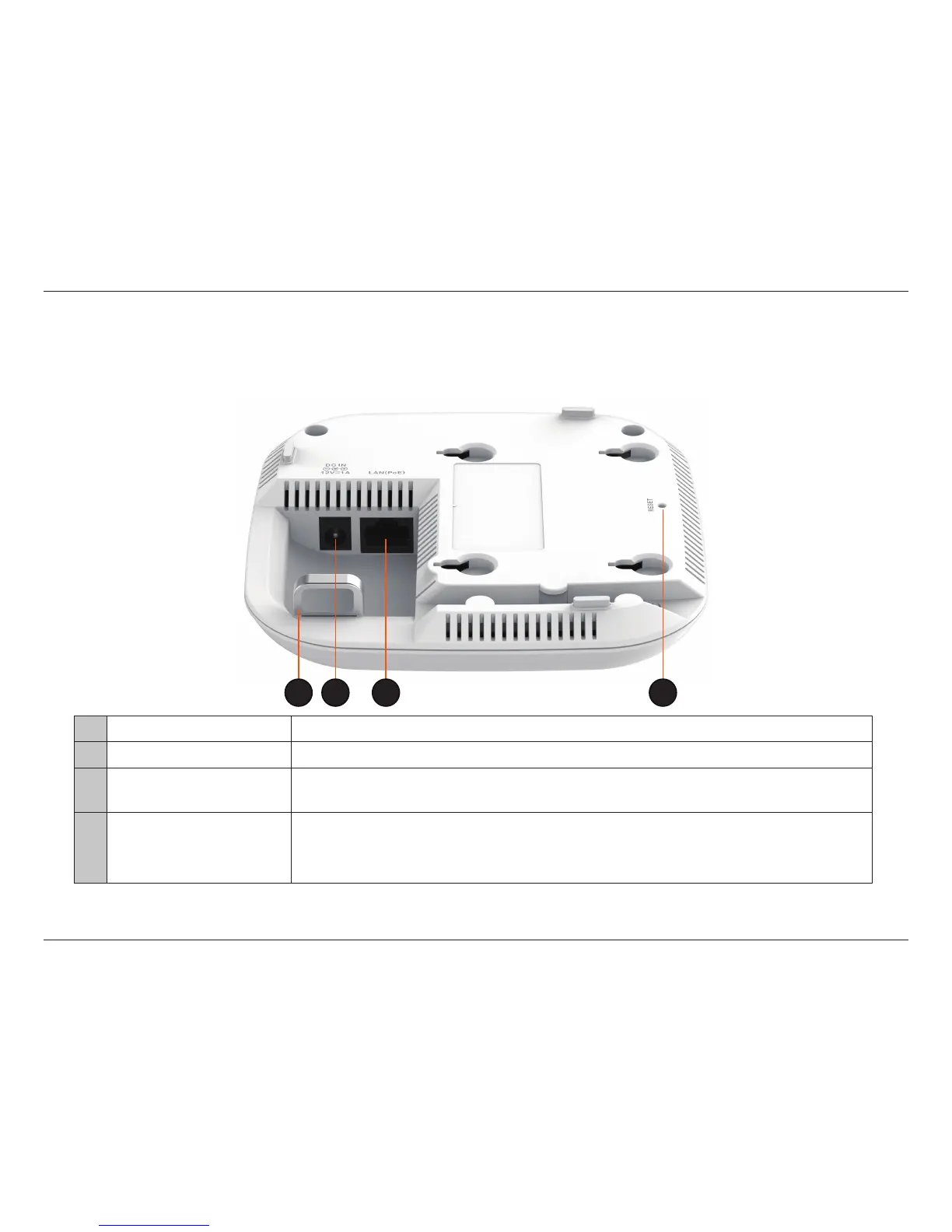

Bottom Panel
1 Security Lock Physically secure your device with this lock.
2 Power Connector Connector for a power adapter.
3 10/100 LAN (PoE)Port
Connect an Ethernet cable to this device and your network. Power may be supplied
to this port via a LAN cable that is connected to a PoE injector or PoE switch.
4 Reset Button
Press and hold the reset button with a paperclip for at least 5 seconds to reset the
device back to the factory default settings. The LED will turn on for 2 seconds and
then begin the reboot process.
1 2 3 4

D-Link DAP-2230 Specifications

General

Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Wireless Standards	IEEE 802.11n
Ethernet Ports	1 x 10/100 Ethernet
PoE Support	Yes (802.3af)
Operating Modes	Access Point, WDS, Client
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Power Supply	12V DC or PoE
