Section 2 - Installation

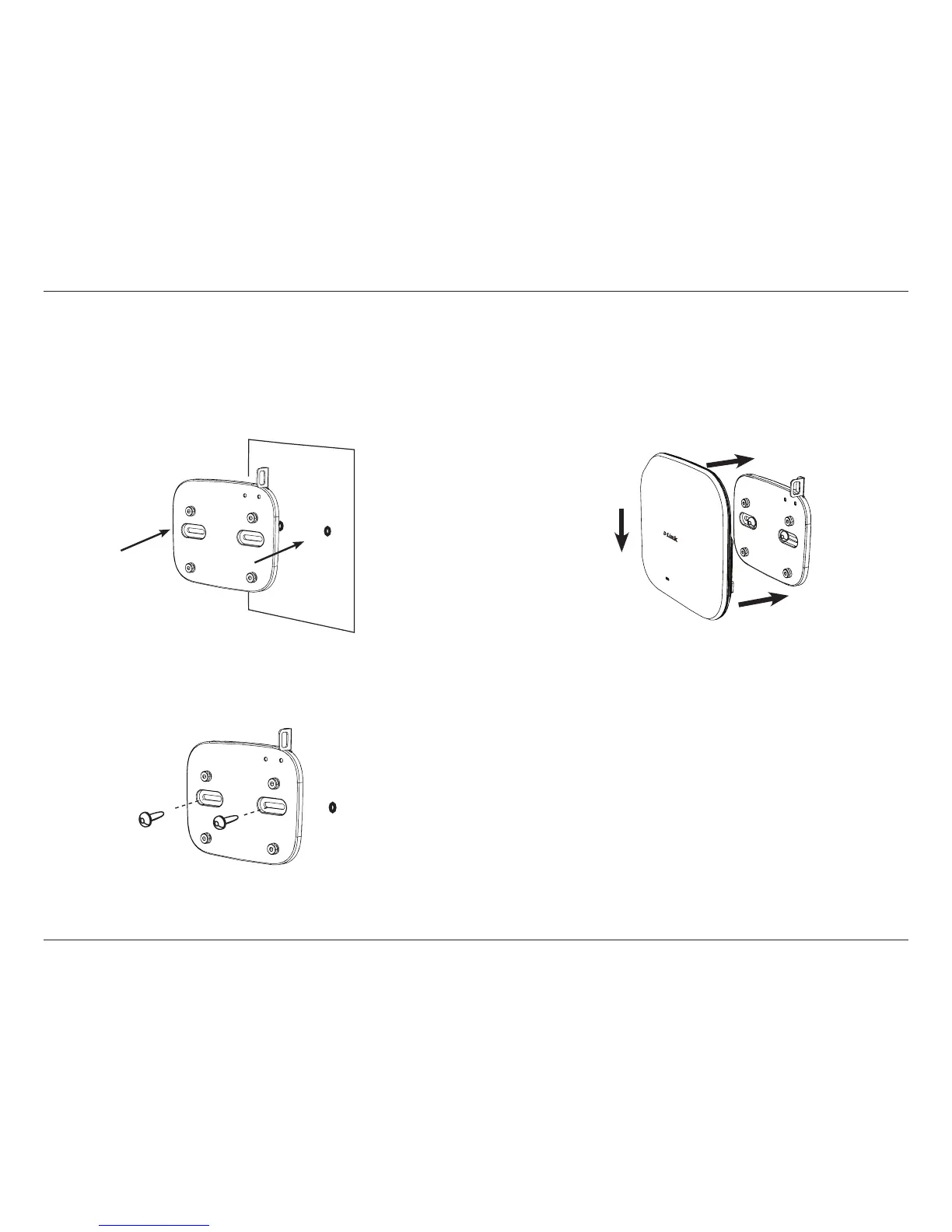

Mounting the AP
Place the mounting bracket on a wall or ceiling and mark holes
where you will insert the screws with a marker. Drill holes in the
marked points and insert the plastic wall anchors.
Use the supplied screws to attach the mounting plate to the wall.
Reattach the DAP-2230 to the mounting bracket.

D-Link DAP-2230 Specifications

General

Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Wireless Standards	IEEE 802.11n
Ethernet Ports	1 x 10/100 Ethernet
PoE Support	Yes (802.3af)
Operating Modes	Access Point, WDS, Client
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Power Supply	12V DC or PoE
