Section 3 - Conguration

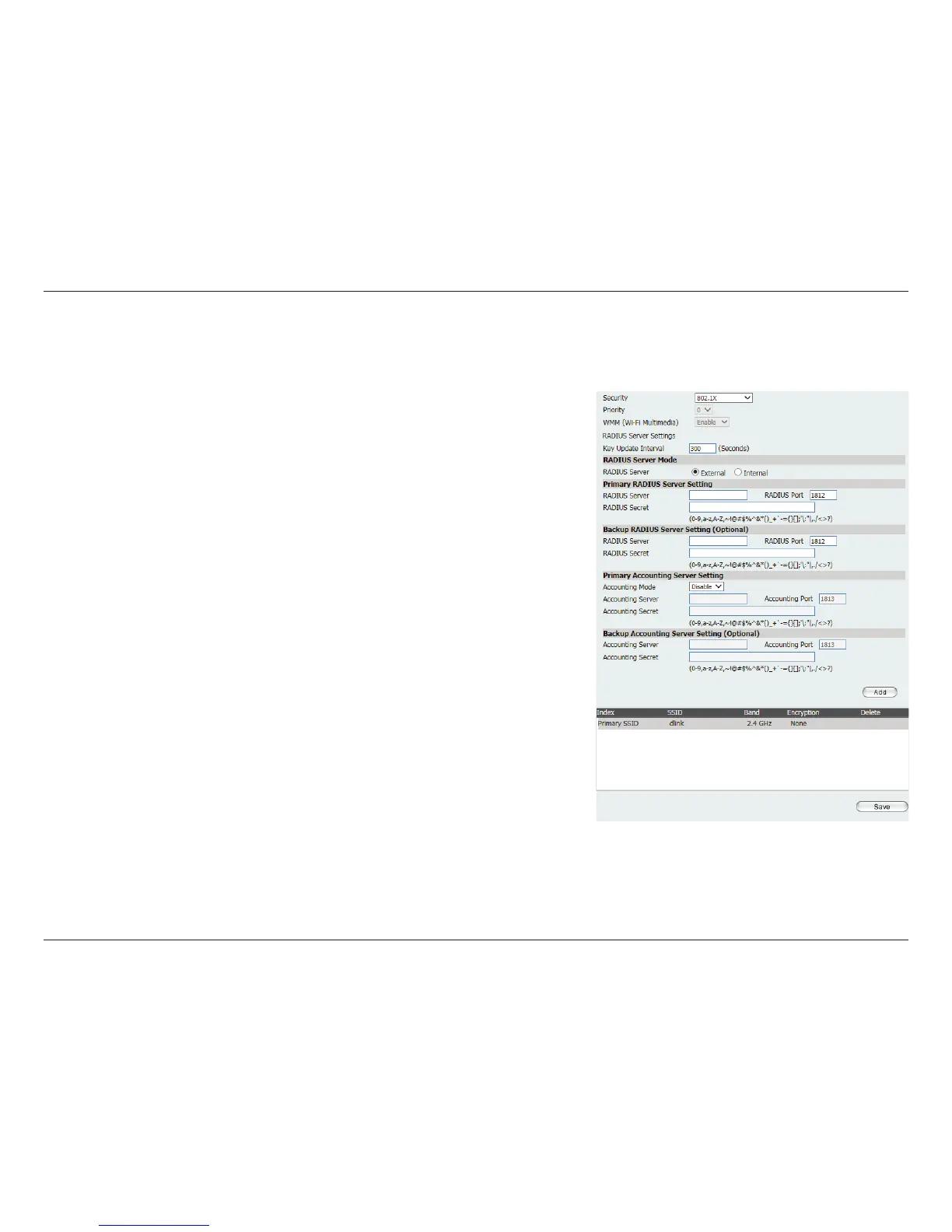

802.1x Authentication
Key Update
Interval:
Select the interval during which the group key will be valid (300 is the
recommended value). A lower interval may reduce data transfer rates.
RADIUS
Server:
Enter the IP address of the RADIUS server.
RADIUS
Port:
Enter the RADIUS port.
RADIUS
Secret:
Enter the RADIUS secret.
802.1x Authentication can only be enabled for Access Point mode.

D-Link DAP-2230 Specifications

General

Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Wireless Standards	IEEE 802.11n
Ethernet Ports	1 x 10/100 Ethernet
PoE Support	Yes (802.3af)
Operating Modes	Access Point, WDS, Client
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Power Supply	12V DC or PoE
