Section 3 - Conguration
Port List

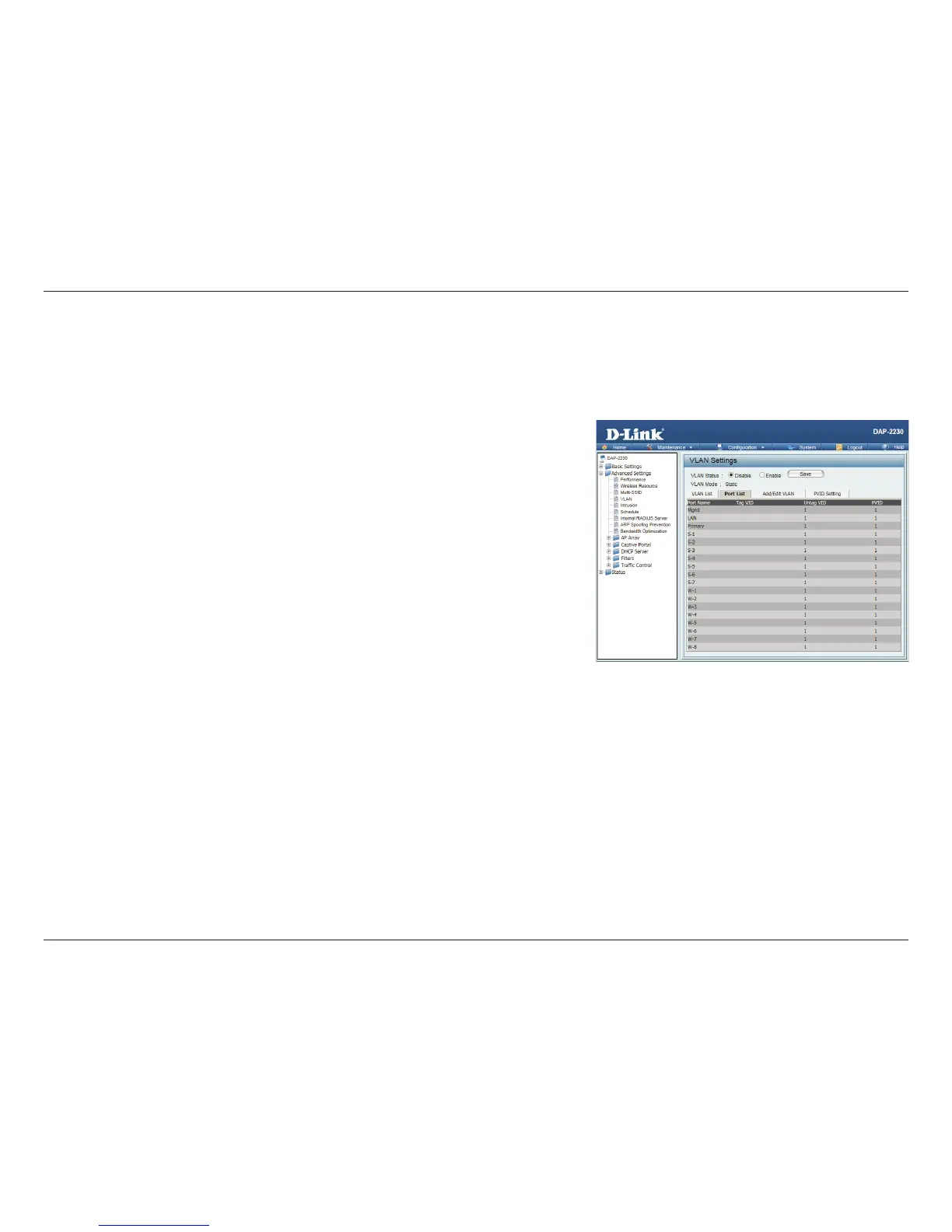

The Port List tab displays the current ports. If you want to congure guest and internal networks on a Virtual LAN (VLAN),
the switch and DHCP server you are using must also support VLANs. As a prerequisite step, congure a port on the switch for
handling VLAN tagged packets as described in the IEEE 802.1Q standard.
VLAN
Status:
Use the radio button to toggle to Enable. Next, go to the Add/Edit VLAN
tab to add or modify an item on the VLAN List tab.
Port Name: The name of the port is displayed in this column.
Tag VID: The Tagged VID is displayed in this column.
Untag VID: The Untagged VID is displayed in this column.
PVID: The Port VLAN Identier is displayed in this column.

D-Link DAP-2230 Specifications

General

Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Wireless Standards	IEEE 802.11n
Ethernet Ports	1 x 10/100 Ethernet
PoE Support	Yes (802.3af)
Operating Modes	Access Point, WDS, Client
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Power Supply	12V DC or PoE
