Fragments: Select the Fragments option to include packet fragment filtering.
Source: Select the source information. The values are Any, Host and IP.
Destination: Select the destination information. The values are Any, Host and IP.
IP Precedence: Select the IP precedence value. Options to choose from are 0 (routine), 1 (priority), 2,
(immediate), 3 (flash), 4 (flash-override), 5 (critical), 6 (internet), and 7 (network).
ToS: Select the Type-of-Service (ToS) value that will be used. Options to choose from are 0 (normal), 1
(min-monetary-cost), 2 (max-reliability), 3, 4 (max-throughput), 5, 6, 7, 8 (min-delay), 9, 10, 11, 12, 13,
14, and 15.
DSCP (0-63): Select the DSCP value. And the range is between 0 and 63.
Time Range: Enter the time range.
Action: Select the action for the rule. The values are Permit and Deny.
Click the Back button to return to the previous window.
Click the Next button to continue.
To define the IPv6 ACL: Select IPv6 and then click the Next button. Selecting the TCP option as the
Protocol Type then click the associated tabs with IPv6 Address, Port, IPv6 DSCP, TCP Flag and Flow
Label, the following page will appear:

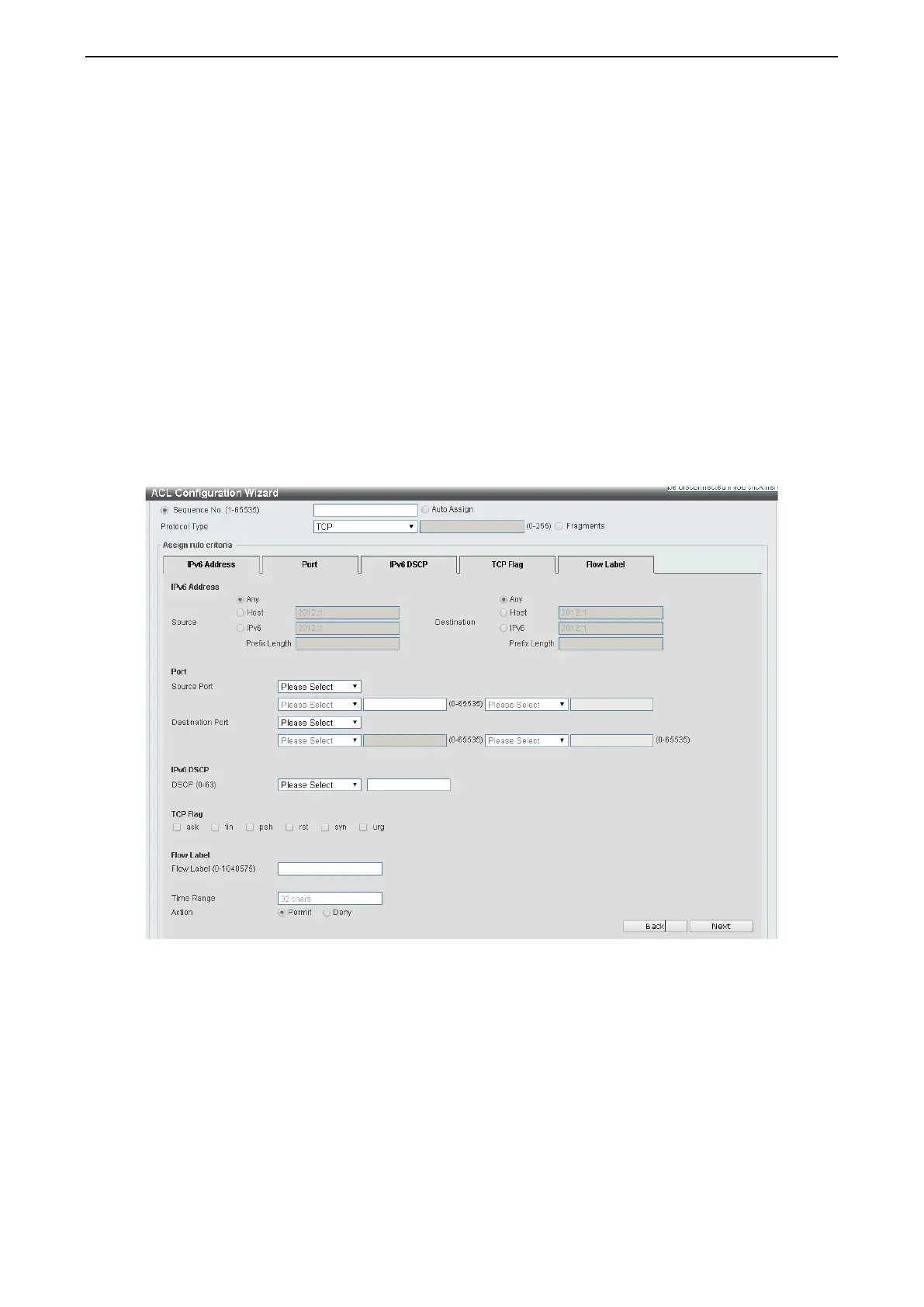

Figure 4.137ACL > ACL Configuration WizardCreate IPv6 ACL-TCP
Source Port: Select the source port value.
Destination Port: Select the destination port value.
IPv6 DSCP (0-63): Select the DSCP value. And the range is between 0 and 63.
TCP Flag: Tick the appropriate TCP flag option to include the flag in this rule. Options to choose from are
ack, fin, psh, rst, syn, and urg.
Flow Label (0-1048575): Enter the flow label value. This value must be between 0 and 1048575.
Time Range: Enter the time range.
Action: Select the action for the rule. The values are Permit and Deny.
After selecting the UDP option as the Protocol Type then click the associated tabs with IPv6 Address, Port,
IPv6 DSCP and Flow Label, the following page will appear:
