D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
82

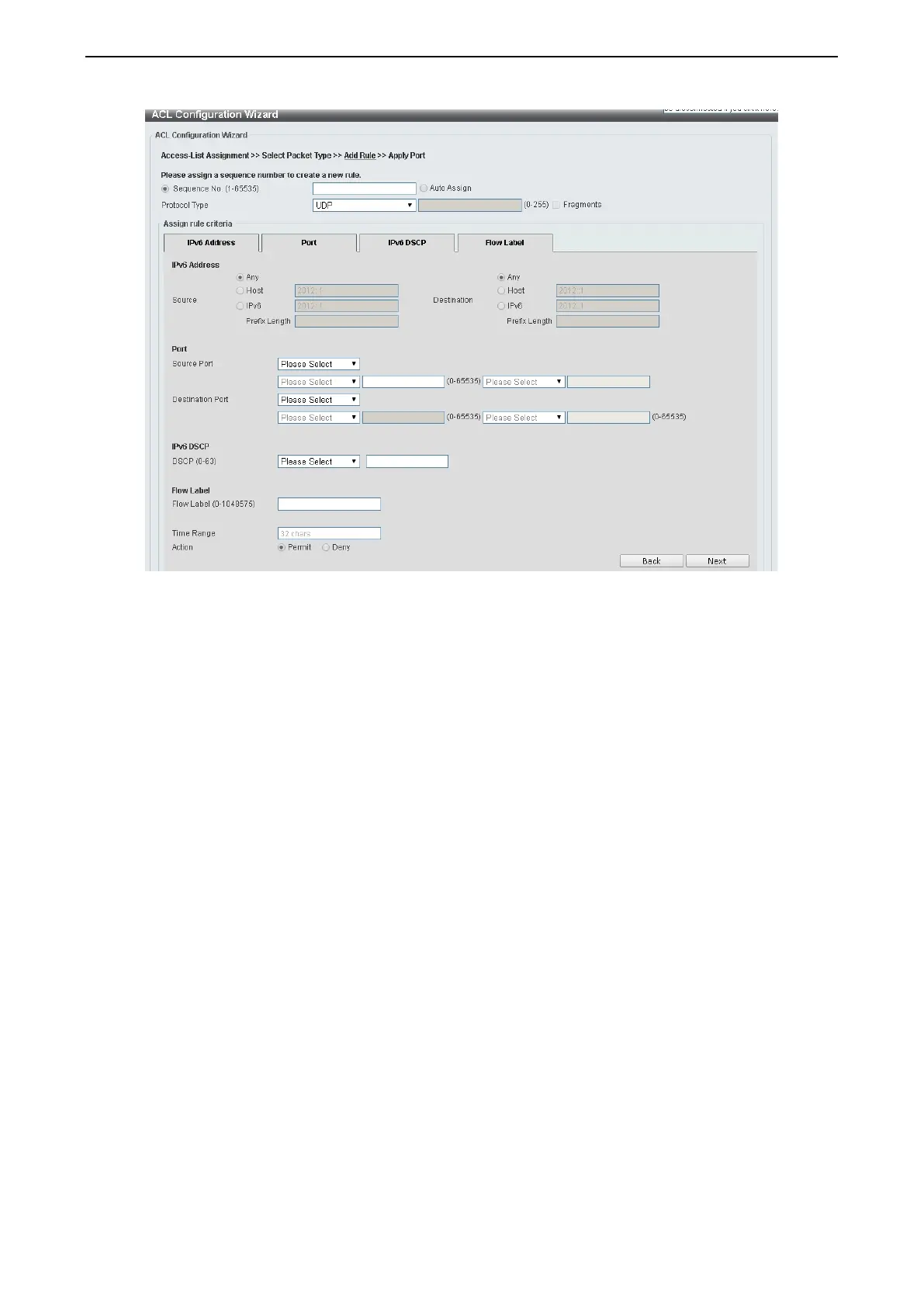

Figure 4.138 – ACL > ACL Configuration Wizard – Create IPv6 ACL-UDP
Source Port: Select the source port value.
Destination Port: Select the destination port value.
Source: Select the source information. The values are Any, Host and IP.
Destination: Select the destination information. The values are Any, Host and IP.
DSCP (0-63): Select the DSCP value. And the range is between 0 and 63.
Flow Label (0-1048575): Enter the flow label value. This value must be between 0 and 1048575.
Time Range: Enter the time range.
Action: Select the action for the rule. The values are Permit and Deny.
After selecting the ICMP option as the Protocol Type then click the associated tabs with IPv6 Address,
ICMP, IPv6 DSCP and Flow Label, the following page will appear:

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
