D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
8
8
3
3

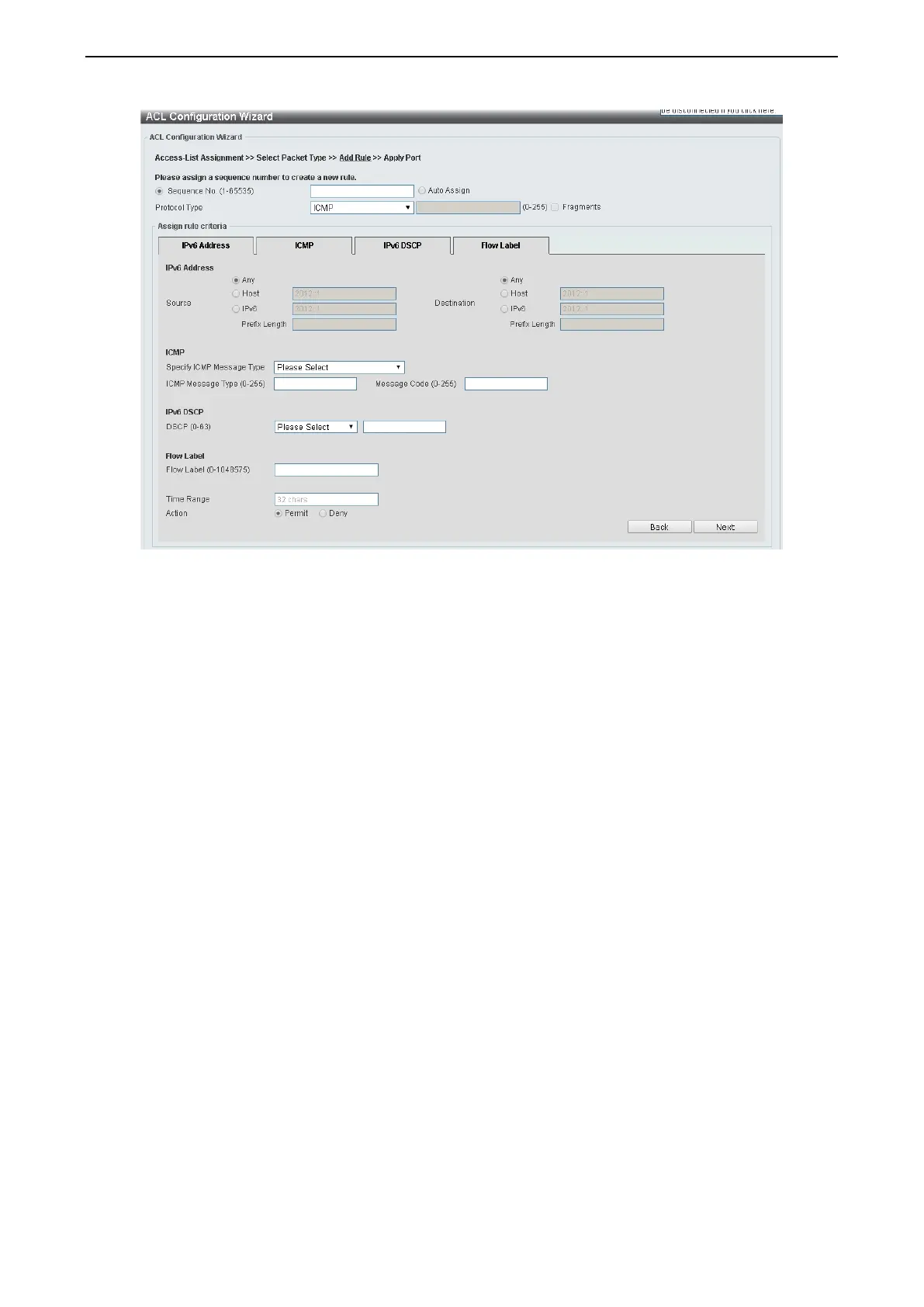

Figure 4.139– ACL > ACL Configuration Wizard – Create IPv6 ACL-ICMP
Source: Select the source information. The values are Any, Host and IP.
Destination: Select the destination information. The values are Any, Host and IP.
DSCP (0-63): Select the DSCP value. And the range is between 0 and 63.
Flow Label (0-1048575): Enter the flow label value. This value must be between 0 and 1048575.
Specify ICMP Message Type: Select the ICMP message type used.
ICMP Message Type (0-255): When the ICMP Message Type is not selected, enter the ICMP Message
Type numerical value. When the ICMP Message Type is selected, this numerical value will automatically be
entered.
Message Code (0-255): When the ICMP Message Type is not selected, enter the Message Code numerical
value. When the ICMP Message Type is selected, this numerical value will automatically be entered.
Time Range: Enter the time range.
Action: Select the action for the rule. The values are Permit and Deny.
After selecting the Protocol ID option as the Protocol Type then click the associated tabs with IPv6
Address, IPv6 DSCP and Flow Label, the following page will appear:

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
