Daikin Super Multi Plus D-Series - Page 130

SiEBE18-526 Field Setting
Test Operation 119

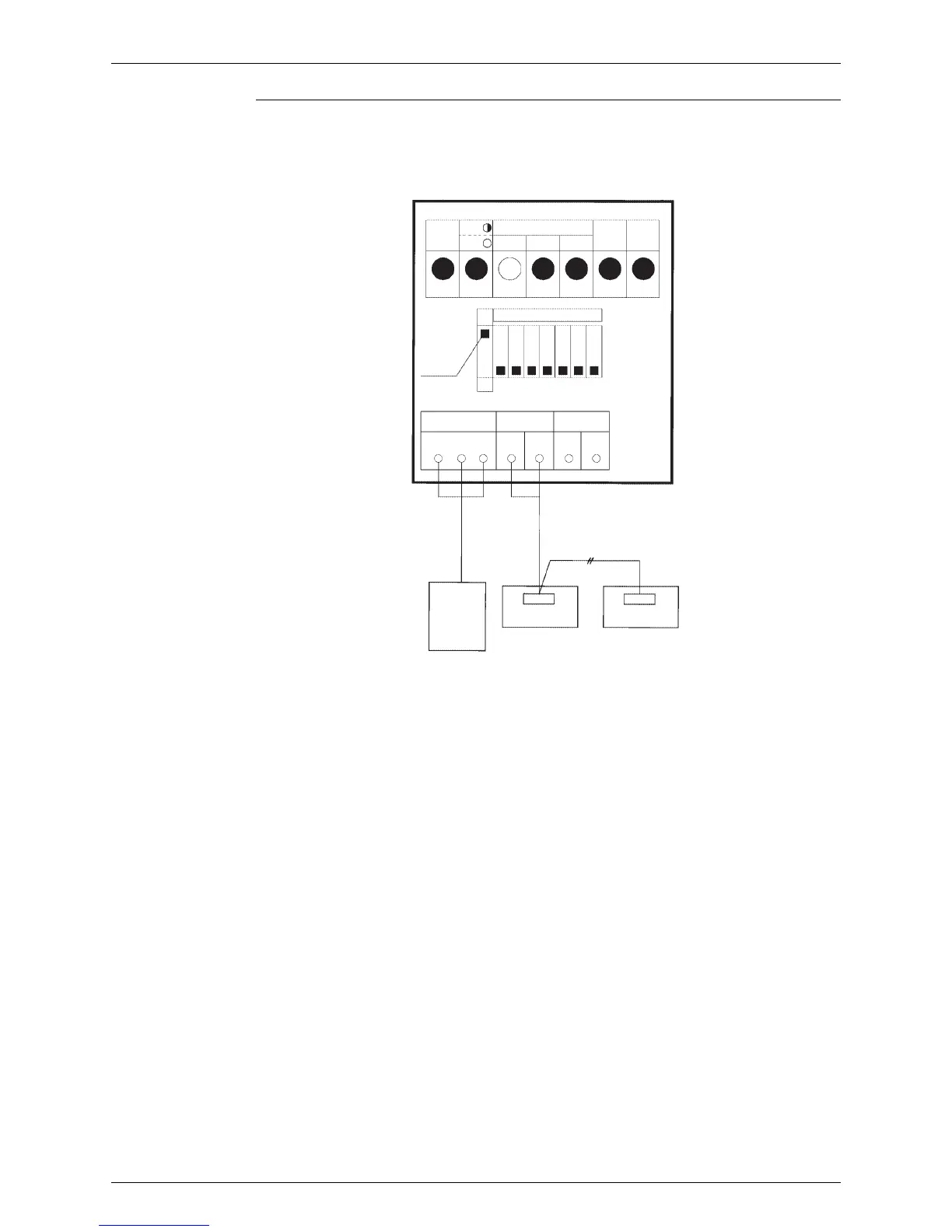

d Set Cool / Heat Separately for Each Outdoor Unit System by Cool/Heat Switching Remote Controller
 Set outdoor unit PC board DS1-1 to “outdoor” (factory set).
 Set cool/heat switching to “individual” for “Setting mode 1” (factory set).
MODE
H1P H2P H3P H4P H5P H6P H7P
IND
TEST
MALFNC.
SLAVE
MASTER
C/H SELECT
C/H SELECT
F1ABC F2F1F2
F1 • F2
BP unit
F1 • F2
BP unit
C/H select
remote
control
(Q0406)
C/H SELECT R.C. TO BP
Dip SW.
DS1-1
O
I
DEMANDL.N.O.P.
