Outdoor Unit SiEBE18-526

350 Removal Procedure

1.5 Removal of Fan Motor

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step

Procedure Points

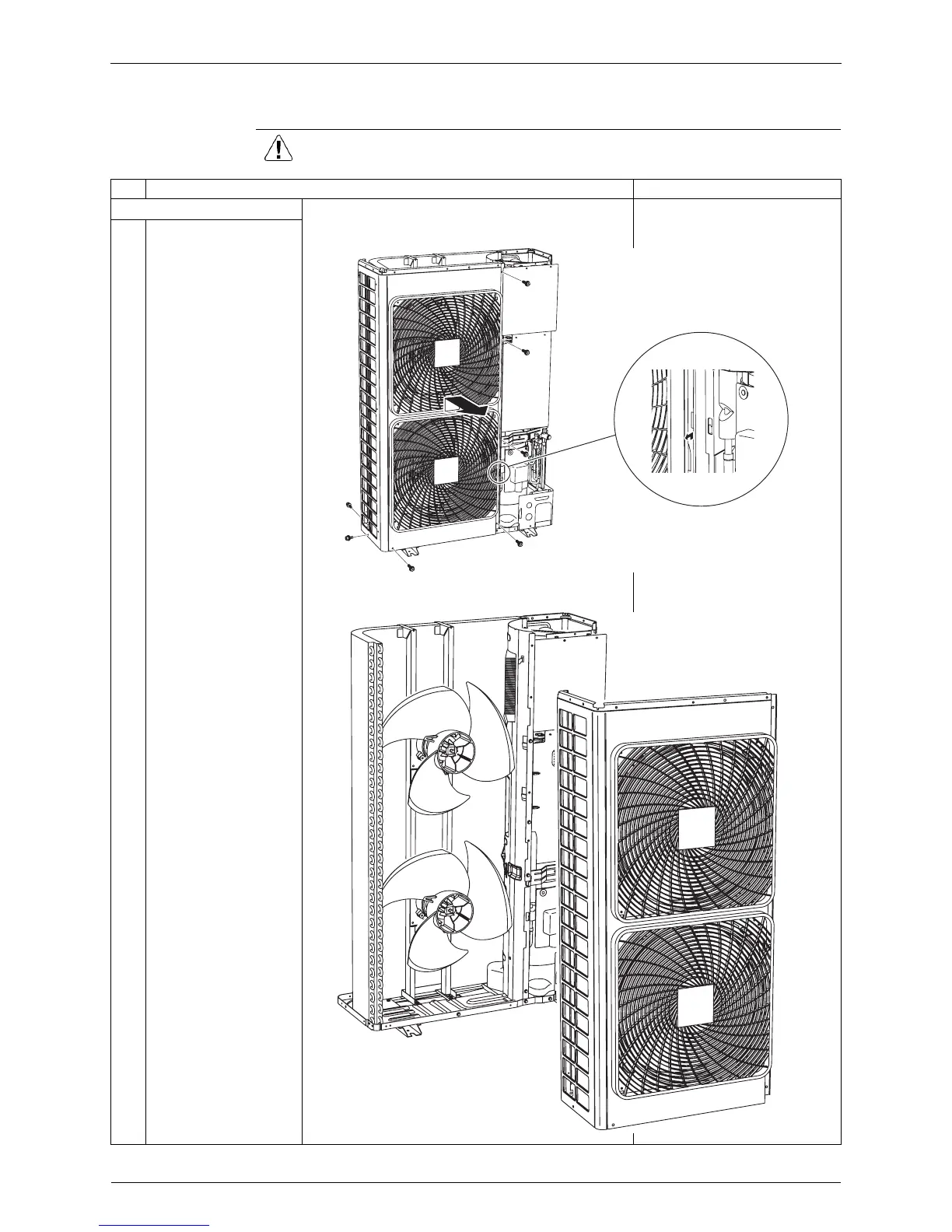

1. Removing the front cover

Remove the seven

screws.

Slide up the front cover

to unhook and detach it.

(Q0495)

(Q0496)
