SiEBE18-526 Instruction
System Configuration 151
19
22
20
21
18
17
Outdoor Unit
Indoor Unit
1. Air filter
2. Air purifying filter with photocatalytic
deodorizing function:
• These filtersare attached to the inside of the
air filters.
3. Air inlet
4. Front grille
5. Grille tab
6. Room temperature sensor:
• It senses the air temperature around the unit.
7. INTELLIGENT EYE sensor:
• It detects the movements of people and
automatically switchesbetween normal
operation and energy saving operation.
8. Display
9. Air outlet
10. Flaps (horizontal blades)
11. Louvres (vertical blades):
• The louvresare inside of the air outlet.
12. Indoor UnitON/OFF switch:
• Push thisswitch once to
start operation.
Push once again to stop it.
• The operation mode refers to the following
table.
• Thisswitch isuseful when the remote control is
missing.
13. Operation lamp (green)
14. TIMER lamp (Yellow)
15. HOME LEAVE lamp (red)
16. Signal receiver:
• It receivessignals from the remote control.
• When the unit receives
asignal, you will hear a
short beep.
• Operation start.............. beep-beep
• Settings changed.......... beep
• Operation stop.............. beeeeep
Air flow
rate
AUTO
AUTO
Temperature
setting
Mode
AUTO
COOL
22°C
25°C
FTKS
FTXS

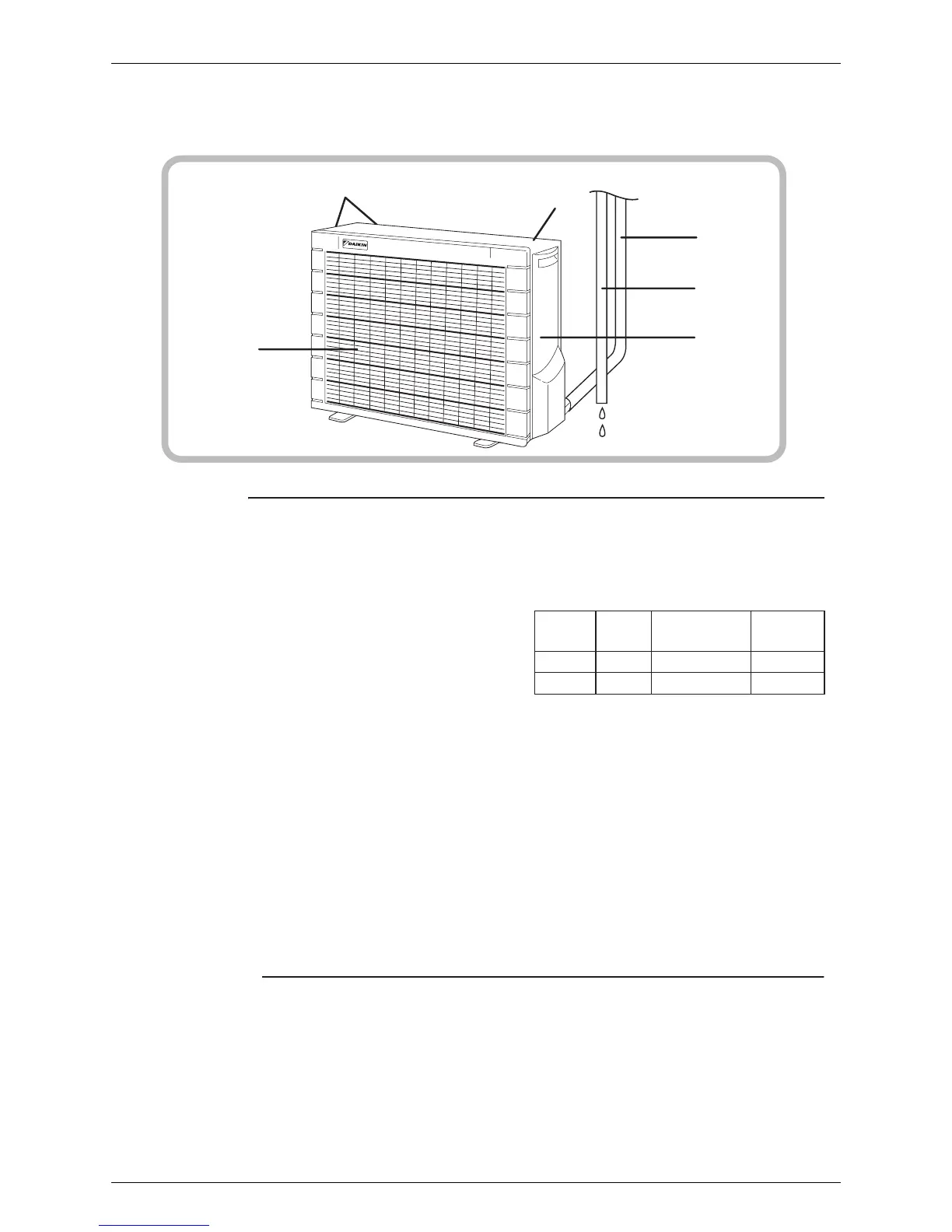

17. Air inlet: (Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
Appearance of the outdoor unit may differ from some models.
21. Earth terminal:
• It is inside of this cover.
22. Outside air temperature sensor:
•
It senses the ambient temperature around the
unit.
Outdoor Unit
