148 System Configuration
19
22
20
21
18
17
Outdoor Unit
Indoor Unit
Outdoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
•
These filtersare attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. INTELLIGENT EYE sensor:
•
It detects the movements of people and
automatically switchesbetween normal
operation and energy saving operation.
8. Display
9. Air outlet
10. Flaps (horizontal blades)
11. louvers (vertical blades):
• The louversare inside of the air outlet.
12.
Indoor Unit ON/OFF switch:
•
Push thisswitch once to start operation. Push
once again to stop it.
•
The operation mode refers to the following
tab le.
•
Thisswitch isuseful when the remote control is
missing.
13. Operation lamp (green)
14. TIMER lamp (yellow)
15. INTELLIGENT EYE lamp (green)
16. Signal receiver:
•
It receivessignals from the remote control.
•
When the unit receivesasignal, you will hear a
short beep.
•
Operation start...............beep-beep
•
Settings changed...........beep
•
Operation stop...............beeeeep
AUTO
AUTO
Air flow
rate
Temperature
setting
Mode
AUTO
COOL
22°C
25°C
F(C)TKS
F(C)TKS

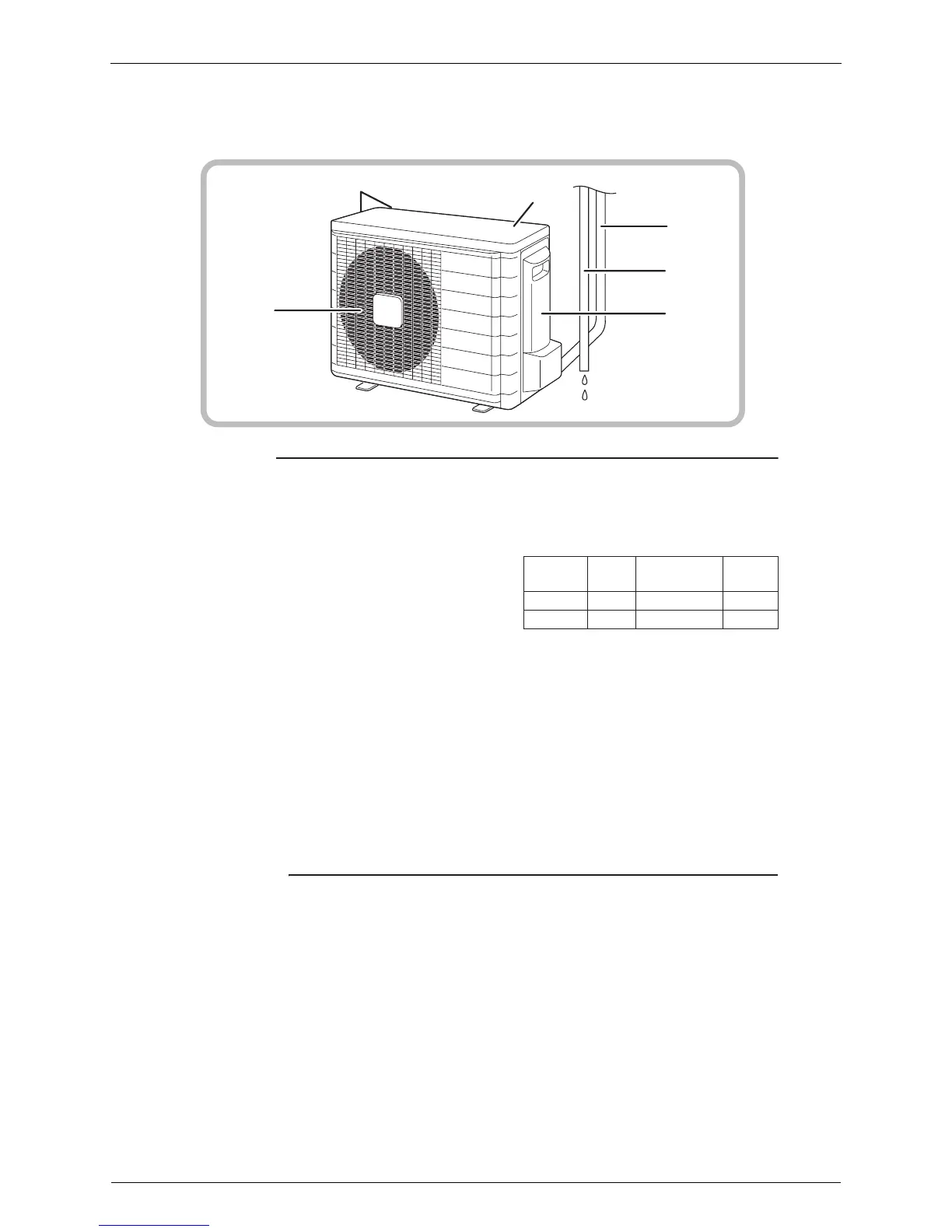

17. Air inlet: (Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
22. Outside air temperature sensor:
• It senses the ambient temperature around
the unit.
Appearance of the outdoor unit may differ from some models.
