SiEBE18-526 Outdoor Unit

Removal Procedure 337

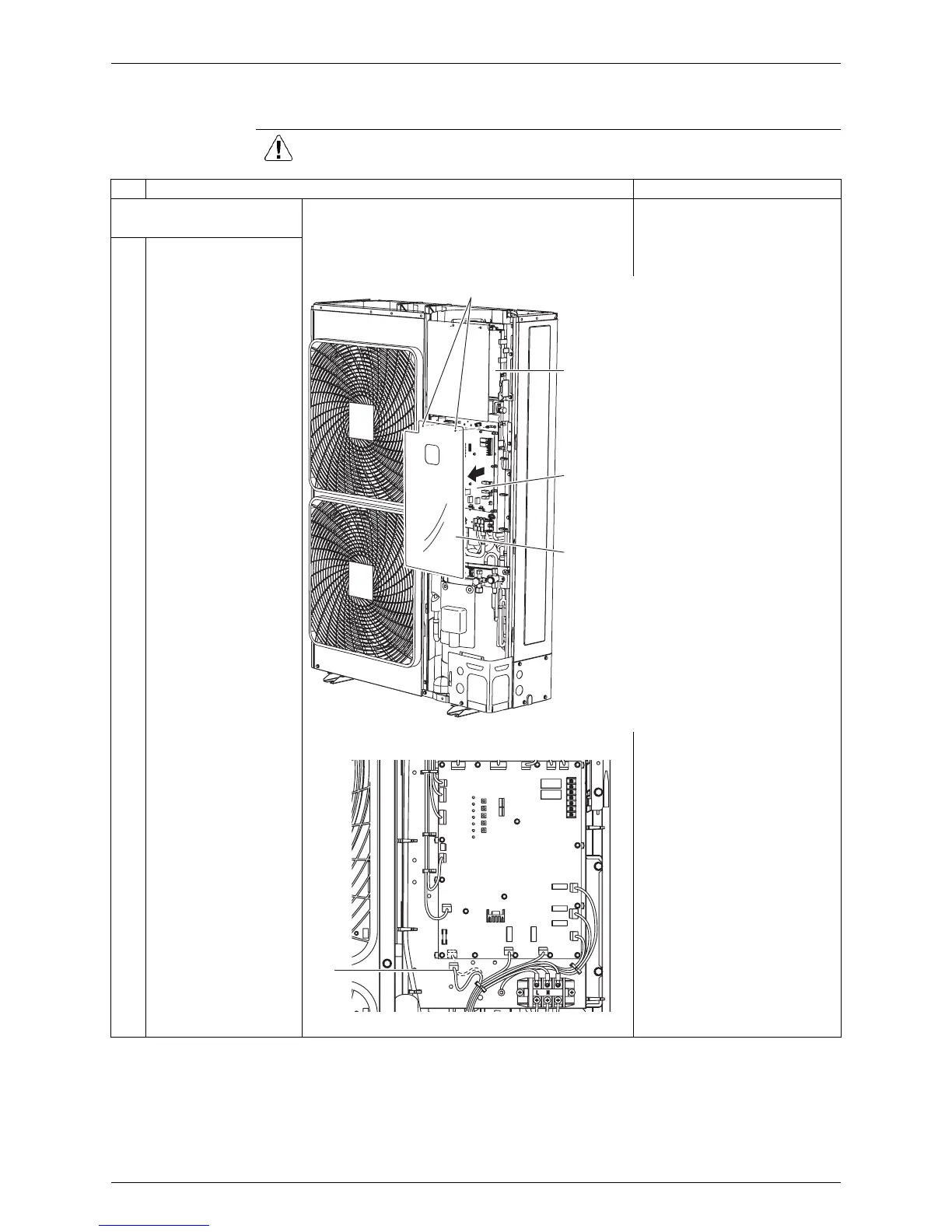

1.2 Removal of PCB

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step

Procedure Points

1. Removing the control

PCB

Detach the two top

locking guard spacers.

Remove the drip proof

cover.

Disconnect the power

relay connector. (X1A)

Locking guard spacers.

Power filter PCB

Control PCB

Drip proof cover

(Q0462)

X1A

(Q0463)

Table of Contents3
