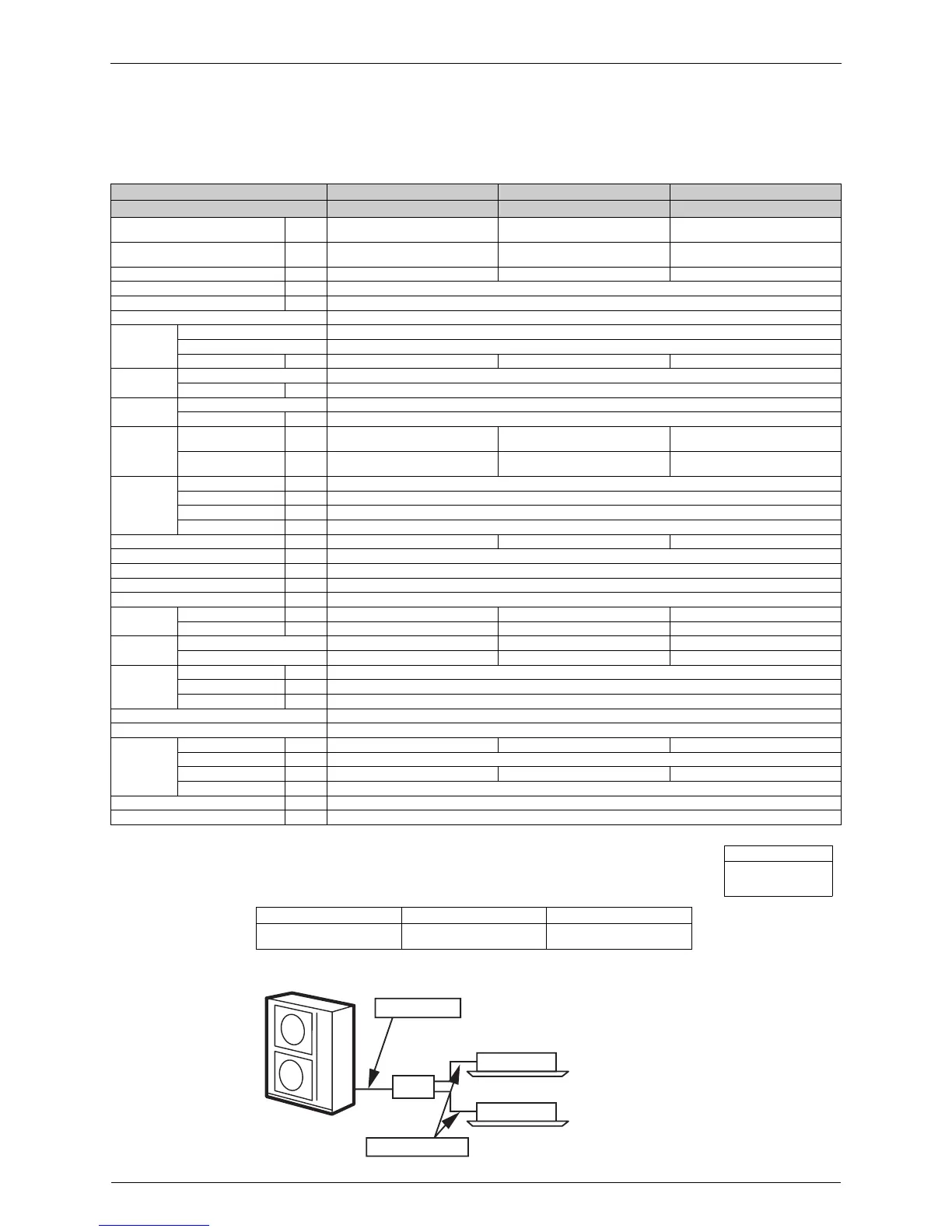

Specifications SiEBE18-526
8 Specifications
1. Specifications
1.1 Outdoor Units
50Hz 230V
Note:
1. H Refrigerant charge is required. (Chargeless piping length 0m)
Formula for calculation charge : R (kg)
R = Total length (m) of liquid pipe size at φ9.5×0.054 + Total length (m) of liquid piping size at φ6.4×0.022
2. The data are based on the conditions shown in the table below.
Model RMXS112D7V3B RMXS140D7V3B RMXS160D7V3B
4HP 5HP 6HP
Cooling Capacity
kW
(kcal/h)
11.2 (9,630) 14.0 (12,040) 15.5 (13,330)
Heating Capacity
kW
(kcal/h)
12.5 (10,750) 16.0 (13,760) 17.5 (15,050)
Total Indoor Unit Capacity kW 5.5~14.5 7.0~18.2 8.0~20.8
Power Consumption W —
Running Current A —
Casing Color Ivory White
Compressor
Type Hermetically Sealed Scroll Type
Model JT100FCVD
Motor Output kW 2.5 3.0 3.5
Refrigerant
Oil
Model DAPHNE FVC68D
Charge L 1.6
Refrigerant
Type R410A
Charge kg 5.1
Air Flow Rate
(H)
Cooling
m³/min
(cfm)
104 (3,671) 104 (3,671) 110 (3,883)
Heating
m³/min
(cfm)
107 (3,777) 107 (3,777) 109 (3,848)
Fan
Type Propeller
Motor Output W 70+70
Running Current A 0.4+0.4
Power Consumption W 88+88
Starting Current A 17.6 22.6 24.9
Dimensions (H×W×D) mm 1,345×900×320
Package Dimensions (H×W×D) mm 1,475×980×420
Weight kg 127
Gross Weight kg 132
Operation
Sound
Cooling dBA 51 52 54
Heating dBA 53 54 56
Sound Power
Cooling 67 68 70
Heating — — —
Piping
Connection
Liquid mm φ9.5 (Flare Connection)
Gas mm φ19.1 (Brazing Connection)
Drain mm φ18
Heat Insulation Both Liquid and Gas Pipes
No. of Wiring Connection 3 For Power Supply (Including Earth Wiring), 2 For Interunit Wiring (Outdoor Unit-BP)
Max. Interunit
Piping
Length
Total main piping and m 115 135 145
Total main piping m 55
Total branch piping m 60 80 90
Max. length for each m 15
Necessity of Additional Charge H kg/m Necessary
Max. Installation Height Difference m 30 (Between Indoor or BP Unit and Outdoor Unit), 15 (Both between Indoor Units and BP Units)
Cooling Heating Piping Length
Indoor ; 27°CDB / 19°CWB
Outdoor ; 35°CDB
Indoor ; 20°CDB
Outdoor ; 7°CDB / 6°CWB
Refrigerant Piping length : 7.5m
Level difference:0m
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
BP Unit
Outdoor Unit
Main Piping
Branch Piping
Indoor Unit
(Q0143)
